Documentation for Real Estate Transaction Standard (RETS)
Definition Type: ComplexType
Name: ServiceOrderListType
Namespace: http://rets.org/xsd/ServiceOrderList/2007-08
Containing Schema: ServiceOrderList.xsd
Abstract

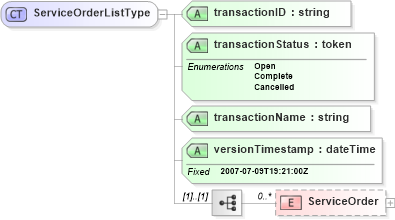

Collapse XSD Schema Diagram:
Drilldown into ServiceOrder in schema serviceorderlist_xsd Drilldown into versionTimestamp in schema serviceorderlist_xsd Drilldown into transactionName in schema serviceorderlist_xsd Drilldown into transactionStatus in schema serviceorderlist_xsd Drilldown into transactionID in schema serviceorderlist_xsdXSD Diagram of ServiceOrderListType in schema serviceorderlist_xsd (Real Estate Transaction Standard (RETS))
Collapse XSD Schema Code:
<xs:complexType name="ServiceOrderListType">
    <xs:sequence>
        <xs:element name="ServiceOrder" minOccurs="0" maxOccurs="unbounded">
            <xs:complexType>
                <xs:sequence>
                    <xs:element name="Description" />
                    <xs:element name="ServiceProvider">
                        <xs:complexType>
                            <xs:sequence>
                                <xs:element name="PersonName" type="commons:ContactablePerson" />
                                <xs:element name="OfficeName" />
                            </xs:sequence>
                            <xs:attribute name="serviceProviderId" type="xs:string" use="required" />
                            <xs:attribute name="name" type="xs:string" use="required" />
                        </xs:complexType>
                    </xs:element>
                    <xs:element name="RequestedBy">
                        <xs:complexType>
                            <xs:sequence>
                                <xs:element name="PersonName" type="commons:ContactablePerson" />
                                <xs:element name="OfficeName" />
                            </xs:sequence>
                        </xs:complexType>
                    </xs:element>
                    <xs:element name="RequestedDateTime" type="commons:SecureDateTime" minOccurs="0" />
                    <xs:element name="AcceptanceDueDateTime" type="commons:SecureDateTime" minOccurs="0" />
                    <xs:element name="CompletionDueDateTime" type="commons:SecureDateTime" minOccurs="0" />
                    <xs:element name="LastUpdatedDateTime" type="commons:SecureDateTime" minOccurs="0" />
                </xs:sequence>
                <xs:attribute name="serviceOrderId" type="xs:string" use="required" />
                <xs:attribute name="status" use="required">
                    <xs:simpleType>
                        <xs:restriction base="xs:token">
                            <xs:enumeration value="Requested" />
                            <xs:enumeration value="Accepted" />
                            <xs:enumeration value="Completed" />
                            <xs:enumeration value="Cancelled" />
                            <xs:enumeration value="Rejected" />
                        </xs:restriction>
                    </xs:simpleType>
                </xs:attribute>
                <xs:attribute name="serviceOrderType" type="xs:string" use="required" />
            </xs:complexType>
        </xs:element>
    </xs:sequence>
    <xs:attribute name="transactionID" type="xs:string" use="required" />
    <xs:attribute name="transactionStatus" use="required">
        <xs:simpleType>
            <xs:restriction base="xs:token">
                <xs:enumeration value="Open" />
                <xs:enumeration value="Complete" />
                <xs:enumeration value="Cancelled" />
            </xs:restriction>
        </xs:simpleType>
    </xs:attribute>
    <xs:attribute name="transactionName" type="xs:string" use="required" />
    <xs:attribute name="versionTimestamp" type="xs:dateTime" use="required" fixed="2007-07-09T19:21:00Z" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ServiceOrder sol:ServiceOrder 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
transactionID sol:transactionID Required
transactionStatus sol:transactionStatus Required
transactionName sol:transactionName Required
versionTimestamp sol:versionTimestamp Required
Collapse Derivation Tree:
Collapse References:
sol:ServiceOrderList
