Documentation for Real Estate Transaction Standard (RETS)
Definition Type: ComplexType
Name: UserInformationType
Namespace: http://rets.org/xsd/RETSSystem/2007-08
Containing Schema: UserInformation.xsd
Abstract

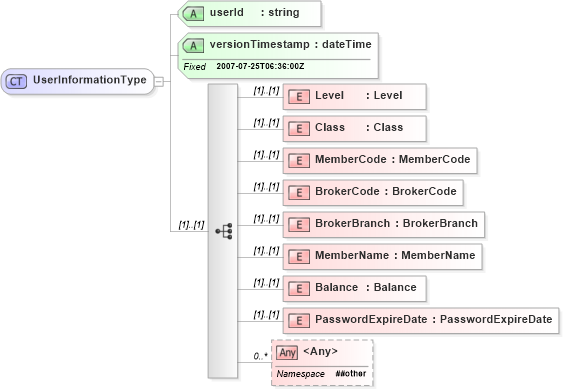

Collapse XSD Schema Diagram:
Drilldown into PasswordExpireDate in schema userinformation_xsd Drilldown into Balance in schema userinformation_xsd Drilldown into MemberName in schema userinformation_xsd Drilldown into BrokerBranch in schema userinformation_xsd Drilldown into BrokerCode in schema userinformation_xsd Drilldown into MemberCode in schema userinformation_xsd Drilldown into Class in schema userinformation_xsd Drilldown into Level in schema userinformation_xsd Drilldown into versionTimestamp in schema userinformation_xsd Drilldown into userId in schema userinformation_xsdXSD Diagram of UserInformationType in schema userinformation_xsd (Real Estate Transaction Standard (RETS))
Collapse XSD Schema Code:
<xs:complexType name="UserInformationType">
    <xs:sequence>
        <xs:element name="Level" type="sys:Level" />
        <xs:element name="Class" type="sys:Class" />
        <xs:element name="MemberCode" type="sys:MemberCode" />
        <xs:element name="BrokerCode" type="sys:BrokerCode" />
        <xs:element name="BrokerBranch" type="sys:BrokerBranch" />
        <xs:element name="MemberName" type="sys:MemberName" />
        <xs:element name="Balance" type="sys:Balance" />
        <xs:element name="PasswordExpireDate" type="sys:PasswordExpireDate" />
        <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
    <xs:attribute name="userId" type="xs:string" use="required" />
    <xs:attribute name="versionTimestamp" type="xs:dateTime" use="required" fixed="2007-07-25T06:36:00Z" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Level sys:Level (1) (1)
Class sys:Class (1) (1)
MemberCode sys:MemberCode (1) (1)
BrokerCode sys:BrokerCode (1) (1)
BrokerBranch sys:BrokerBranch (1) (1)
MemberName sys:MemberName (1) (1)
Balance sys:Balance (1) (1)
PasswordExpireDate sys:PasswordExpireDate (1) (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
userId sys:userId Required
versionTimestamp sys:versionTimestamp Required
Collapse Derivation Tree:
Collapse References:
sys:UserInformation
