Documentation for Real Estate Transaction Standard (RETS)
Definition Type: ComplexType
Name: UtilitiesType
Namespace: http://rets.org/xsd/RETSCommons/2007-08
Containing Schema: Features.xsd
Abstract

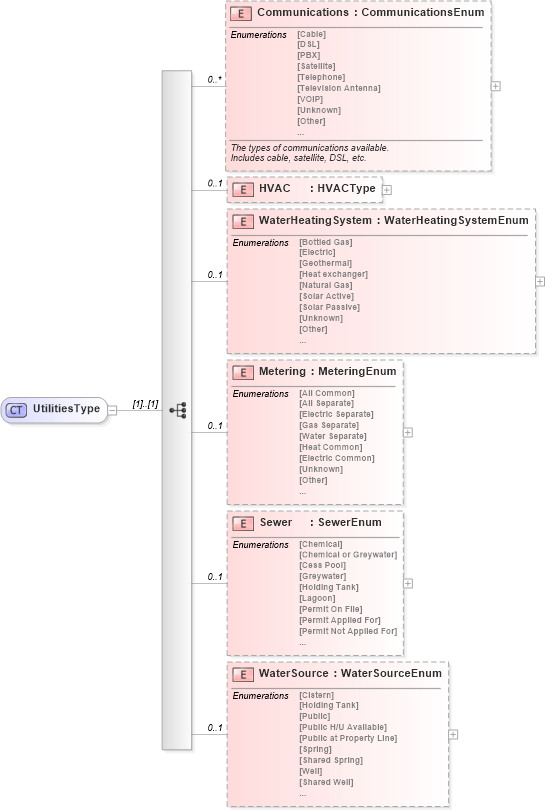

Collapse XSD Schema Diagram:
Drilldown into WaterSource in schema features_xsd Drilldown into Sewer in schema features_xsd Drilldown into Metering in schema features_xsd Drilldown into WaterHeatingSystem in schema features_xsd Drilldown into HVAC in schema features_xsd Drilldown into Communications in schema features_xsdXSD Diagram of UtilitiesType in schema features_xsd (Real Estate Transaction Standard (RETS))
Collapse XSD Schema Code:
<xs:complexType name="UtilitiesType">
    <xs:sequence>
        <xs:element name="Communications" type="commons:CommunicationsEnum" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
                <xs:documentation>
						The types of communications available.
						Includes cable, satellite, DSL, etc.
					</xs:documentation>
                <xs:appinfo>
                    <retsid>100195</retsid>
                    <example>DSL</example>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="HVAC" type="commons:HVACType" minOccurs="0" maxOccurs="1">
            <xs:annotation>
                <xs:documentation>
                </xs:documentation>
                <xs:appinfo>
                    <retsid>100398</retsid>
                    <example>None</example>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="WaterHeatingSystem" type="commons:WaterHeatingSystemEnum" minOccurs="0" maxOccurs="1">
            <xs:annotation>
                <xs:documentation>
                </xs:documentation>
                <xs:appinfo>
                    <retsid>100198</retsid>
                    <example>Natural Gas</example>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="Metering" type="commons:MeteringEnum" minOccurs="0" maxOccurs="1">
            <xs:annotation>
                <xs:documentation>
                </xs:documentation>
                <xs:appinfo>
                    <retsid>100201</retsid>
                    <example>All Separate</example>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="Sewer" type="commons:SewerEnum" minOccurs="0" maxOccurs="1">
            <xs:annotation>
                <xs:documentation>
                </xs:documentation>
                <xs:appinfo>
                    <retsid>100199</retsid>
                    <example>Public Sewer</example>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="WaterSource" type="commons:WaterSourceEnum" minOccurs="0" maxOccurs="1">
            <xs:annotation>
                <xs:documentation>
                </xs:documentation>
                <xs:appinfo>
                    <retsid>100200</retsid>
                    <example>Public</example>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Communications commons:Communications 0 unbounded
HVAC commons:HVAC 0 1
WaterHeatingSystem commons:WaterHeatingSystem 0 1
Metering commons:Metering 0 1
Sewer commons:Sewer 0 1
WaterSource commons:WaterSource 0 1
Collapse Derivation Tree:
Collapse References:
prop:Utilities, record:Utilities
