Documentation for Real Estate Transaction Standard (RETS)
Definition Type: ComplexType
Name: Vocabulary
Namespace: http://rets.org/xsd/RETSSystem/2007-08
Containing Schema: Vocabulary.xsd
Abstract

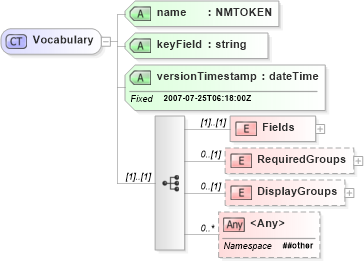

Collapse XSD Schema Diagram:
Drilldown into DisplayGroups in schema vocabulary_xsd Drilldown into RequiredGroups in schema vocabulary_xsd Drilldown into Fields in schema vocabulary_xsd Drilldown into versionTimestamp in schema vocabulary_xsd Drilldown into keyField in schema vocabulary_xsd Drilldown into name in schema vocabulary_xsdXSD Diagram of Vocabulary in schema vocabulary_xsd (Real Estate Transaction Standard (RETS))
Collapse XSD Schema Code:
<xs:complexType name="Vocabulary">
    <xs:sequence>
        <xs:element name="Fields">
            <xs:complexType>
                <xs:sequence>
                    <xs:element name="Field" minOccurs="0" maxOccurs="unbounded">
                        <xs:complexType>
                            <xs:sequence>
                                <xs:element name="MetaEntryId" type="xs:string" minOccurs="0" />
                                <xs:element name="Name" type="xs:string" />
                                <xs:element name="DataType" type="sys:VocabularyDataTypeEnum" />
                                <xs:element name="LookupName" type="xs:string" minOccurs="0" />
                            </xs:sequence>
                            <xs:attribute name="isSearchable" type="xs:boolean" use="optional" default="true" />
                            <xs:attribute name="isSelectable" type="xs:boolean" use="optional" default="true" />
                        </xs:complexType>
                    </xs:element>
                </xs:sequence>
                <xs:attribute name="version" type="xs:anyURI" use="required" />
                <xs:attribute name="timestamp" type="xs:dateTime" use="required" />
            </xs:complexType>
        </xs:element>
        <xs:element name="RequiredGroups" minOccurs="0">
            <xs:complexType>
                <xs:sequence>
                    <xs:element name="RequiredGroup" maxOccurs="unbounded">
                        <xs:complexType>
                            <xs:sequence>
                                <xs:element name="Id" type="xs:string" />
                                <xs:element name="DisplayName" type="xs:string" />
                                <xs:element name="FieldList" type="xs:string" />
                            </xs:sequence>
                        </xs:complexType>
                    </xs:element>
                </xs:sequence>
                <xs:attribute name="version" type="xs:anyURI" use="required" />
                <xs:attribute name="timestamp" type="xs:dateTime" use="required" />
            </xs:complexType>
        </xs:element>
        <xs:element name="DisplayGroups" minOccurs="0">
            <xs:complexType>
                <xs:sequence>
                    <xs:element name="DisplayGroup" maxOccurs="unbounded">
                        <xs:complexType>
                            <xs:sequence>
                                <xs:element name="Id" type="xs:string" />
                                <xs:element name="DisplayName" type="xs:string" />
                                <xs:element name="FieldList" type="xs:string" />
                            </xs:sequence>
                        </xs:complexType>
                    </xs:element>
                </xs:sequence>
                <xs:attribute name="version" type="xs:anyURI" use="required" />
                <xs:attribute name="timestamp" type="xs:dateTime" use="required" />
            </xs:complexType>
        </xs:element>
        <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
    <xs:attribute name="name" type="xs:NMTOKEN" use="required" />
    <xs:attribute name="keyField" type="xs:string" use="required" />
    <xs:attribute name="versionTimestamp" type="xs:dateTime" use="required" fixed="2007-07-25T06:18:00Z" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Fields sys:Fields (1) (1)
RequiredGroups sys:RequiredGroups 0 (1)
DisplayGroups sys:DisplayGroups 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
name sys:name Required
keyField sys:keyField Required
versionTimestamp sys:versionTimestamp Required
Collapse Derivation Tree:
Collapse References:
sys:Vocabulary
