Documentation for REgular LAnguage for XML Next Generation (RELAX NG)
Definition Type: Element
Name: externalRef
Namespace: http://relaxng.org/ns/structure/1.0
Containing Schema: RelaxNG.xsd
Abstract
Collapse XSD Schema Diagram:

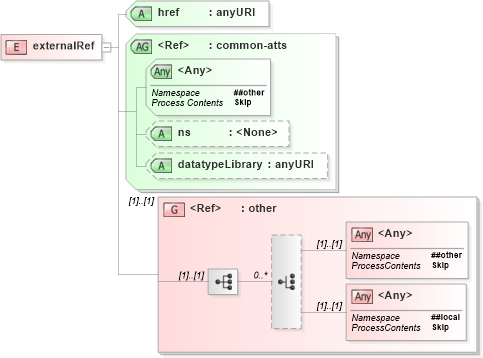

Drilldown into other in schema relaxng_xsd Drilldown into datatypeLibrary in schema relaxng_xsd Drilldown into ns in schema relaxng_xsd Drilldown into common-atts in schema relaxng_xsd Drilldown into href in schema relaxng_xsdXSD Diagram of externalRef in schema relaxng_xsd (REgular LAnguage for XML Next Generation (RELAX NG))
Collapse XSD Schema Code:
<xs:element name="externalRef">
    <xs:complexType>
        <xs:group ref="structure:other" />
        <xs:attribute name="href" type="xs:anyURI" use="required" />
        <xs:attributeGroup ref="structure:common-atts" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:any> Allowed namespace: '##other' (1) (1)
<xs:any> Allowed namespace: '##local' (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
href structure:href Required
ns structure:ns (Optional)
datatypeLibrary structure:datatypeLibrary (Optional)
<anyAttribute> Allowed namespace: '##other'
