Definition Type: ComplexType
Name: AcknowledgmentDetailType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract

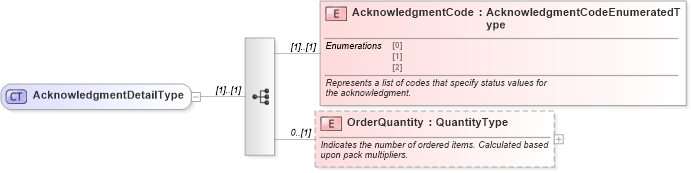

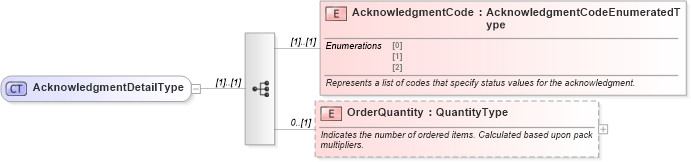

Collapse XSD Schema Diagram:
Drilldown into OrderQuantity in schema components_xsd Drilldown into AcknowledgmentCode in schema components_xsdXSD Diagram of AcknowledgmentDetailType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="AcknowledgmentDetailType">
    <xsd:sequence>
        <xsd:element name="AcknowledgmentCode" type="scl:AcknowledgmentCodeEnumeratedType">
            <xsd:annotation>
                <xsd:documentation>Represents a list of codes that specify status values for the acknowledgment.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="OrderQuantity" type="sqdt:QuantityType">
            <xsd:annotation>
                <xsd:documentation>Indicates the number of ordered items. Calculated based upon pack multipliers.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AcknowledgmentCode star:AcknowledgmentCode (1) (1)
OrderQuantity star:OrderQuantity 0 (1)
Collapse Derivation Tree:
Collapse References:
star:AcknowledgmentDetail
