Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: BoxingDetailType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract
Collapse XSD Schema Diagram:

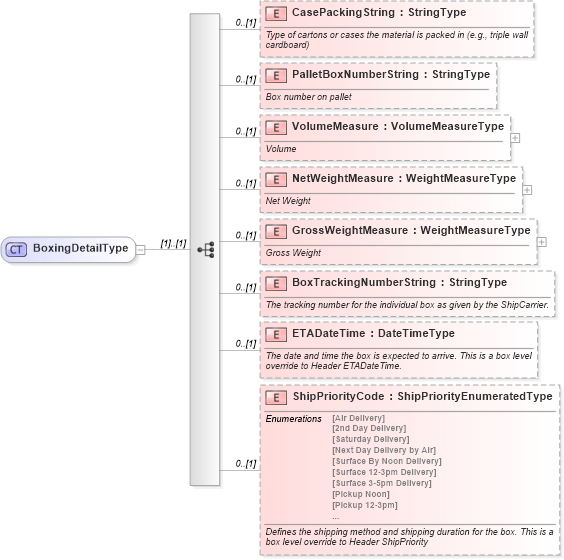

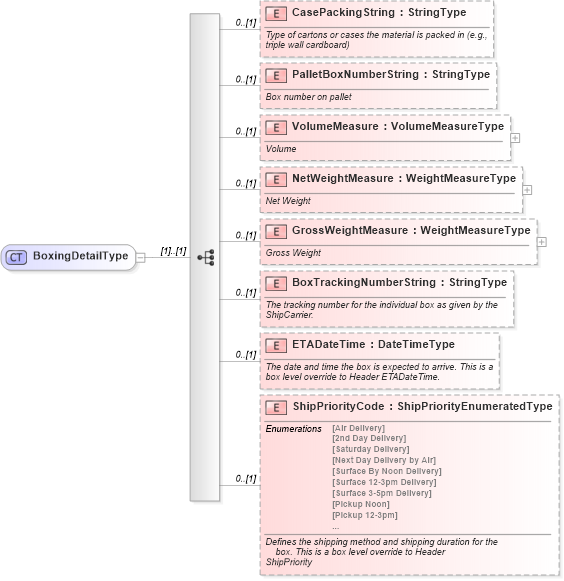

Drilldown into ShipPriorityCode in schema components_xsd Drilldown into ETADateTime in schema components_xsd Drilldown into BoxTrackingNumberString in schema components_xsd Drilldown into GrossWeightMeasure in schema components_xsd Drilldown into NetWeightMeasure in schema components_xsd Drilldown into VolumeMeasure in schema components_xsd Drilldown into PalletBoxNumberString in schema components_xsd Drilldown into CasePackingString in schema components_xsdXSD Diagram of BoxingDetailType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="BoxingDetailType">
    <xsd:sequence>
        <xsd:element minOccurs="0" name="CasePackingString" type="qdt:StringType">
            <xsd:annotation>
                <xsd:documentation>Type of cartons or cases the material is packed in (e.g., triple wall cardboard)</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="PalletBoxNumberString" type="qdt:StringType">
            <xsd:annotation>
                <xsd:documentation>Box number on pallet</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="VolumeMeasure" type="sqdt:VolumeMeasureType">
            <xsd:annotation>
                <xsd:documentation>Volume</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="NetWeightMeasure" type="sqdt:WeightMeasureType">
            <xsd:annotation>
                <xsd:documentation>Net Weight</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="GrossWeightMeasure" type="sqdt:WeightMeasureType">
            <xsd:annotation>
                <xsd:documentation>Gross Weight</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="BoxTrackingNumberString" type="qdt:StringType">
            <xsd:annotation>
                <xsd:documentation>The tracking number for the individual box as given by the ShipCarrier.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="ETADateTime" type="udt:DateTimeType">
            <xsd:annotation>
                <xsd:documentation>The date and time the box is expected to arrive. This is a box level override to Header ETADateTime.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="ShipPriorityCode" type="scl:ShipPriorityEnumeratedType">
            <xsd:annotation>
                <xsd:documentation>Defines the shipping method and shipping duration for the box. This is a box level override to Header ShipPriority</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CasePackingString star:CasePackingString 0 (1)
PalletBoxNumberString star:PalletBoxNumberString 0 (1)
VolumeMeasure star:VolumeMeasure 0 (1)
NetWeightMeasure star:NetWeightMeasure 0 (1)
GrossWeightMeasure star:GrossWeightMeasure 0 (1)
BoxTrackingNumberString star:BoxTrackingNumberString 0 (1)
ETADateTime star:ETADateTime 0 (1)
ShipPriorityCode star:ShipPriorityCode 0 (1)
Collapse Derivation Tree:
Collapse References:
star:BoxingDetail
