Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: CodesAndCommentsExpandedType
Namespace: http://www.starstandard.org/STAR/5
Type: star:CodesAndCommentsBaseType
Containing Schema: Components.xsd
Abstract

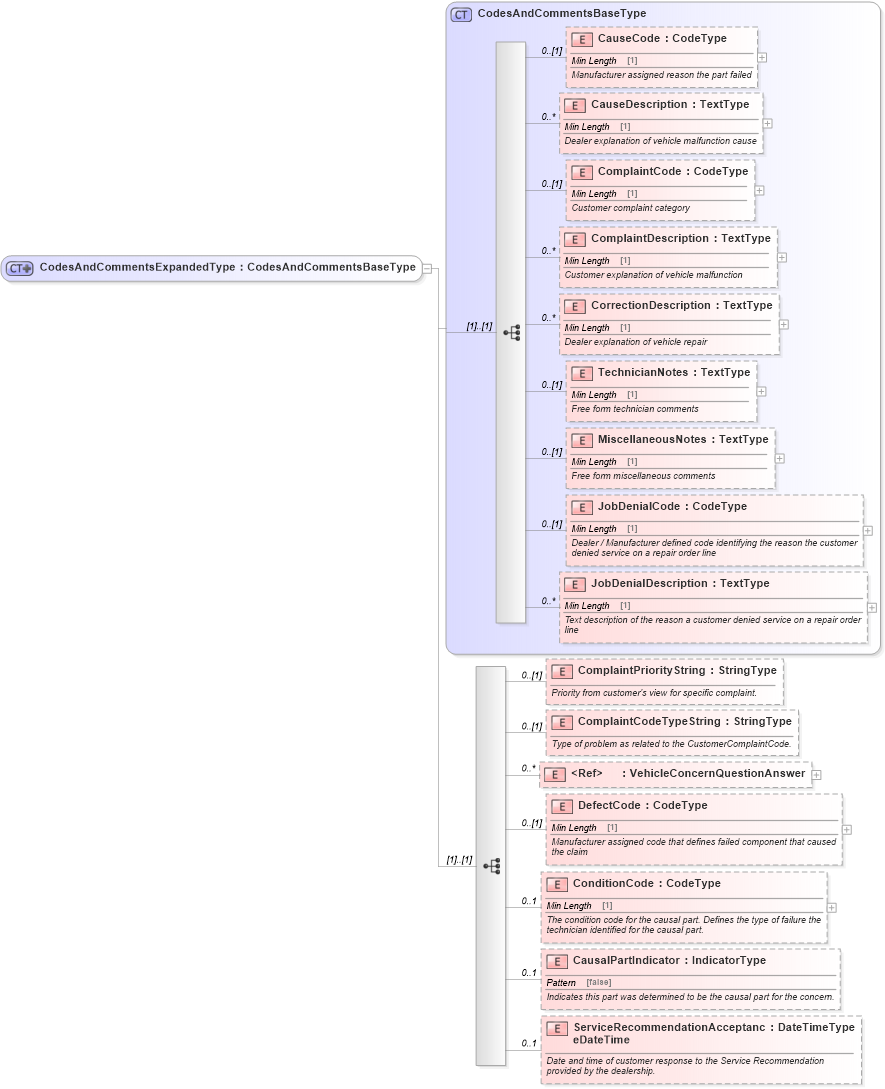

Collapse XSD Schema Diagram:
Drilldown into ServiceRecommendationAcceptanceDateTime in schema components_xsd Drilldown into CausalPartIndicator in schema components_xsd Drilldown into ConditionCode in schema components_xsd Drilldown into DefectCode in schema components_xsd Drilldown into VehicleConcernQuestionAnswer in schema components_xsd Drilldown into ComplaintCodeTypeString in schema components_xsd Drilldown into ComplaintPriorityString in schema components_xsd Drilldown into JobDenialDescription in schema components_xsd Drilldown into JobDenialCode in schema components_xsd Drilldown into MiscellaneousNotes in schema components_xsd Drilldown into TechnicianNotes in schema components_xsd Drilldown into CorrectionDescription in schema components_xsd Drilldown into ComplaintDescription in schema components_xsd Drilldown into ComplaintCode in schema components_xsd Drilldown into CauseDescription in schema components_xsd Drilldown into CauseCode in schema components_xsd Drilldown into CodesAndCommentsBaseType in schema components_xsdXSD Diagram of CodesAndCommentsExpandedType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="CodesAndCommentsExpandedType">
    <xsd:complexContent>
        <xsd:extension base="CodesAndCommentsBaseType">
            <xsd:sequence>
                <xsd:element minOccurs="0" name="ComplaintPriorityString" type="qdt:StringType">
                    <xsd:annotation>
                        <xsd:documentation>Priority from customer's view for specific complaint.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="ComplaintCodeTypeString" type="qdt:StringType">
                    <xsd:annotation>
                        <xsd:documentation>Type of problem as related to the CustomerComplaintCode.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="unbounded" minOccurs="0" ref="VehicleConcernQuestionAnswer">
                    <xsd:annotation>
                        <xsd:documentation>Questions and Answers related to Service Appointment</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="DefectCode" type="udt:CodeType">
                    <xsd:annotation>
                        <xsd:documentation>Manufacturer assigned code that defines failed component that caused the claim</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="ConditionCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">The condition code for the causal part. Defines the type of failure the technician identified for the causal part.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="CausalPartIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates this part was determined to be the causal part for the concern.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="ServiceRecommendationAcceptanceDateTime" type="udt:DateTimeType" minOccurs="0" maxOccurs="1">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">
                                Date and time of customer response to the Service Recommendation provided by the dealership.
                            </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CauseCode star:CauseCode 0 (1)
CauseDescription star:CauseDescription 0 unbounded
ComplaintCode star:ComplaintCode 0 (1)
ComplaintDescription star:ComplaintDescription 0 unbounded
CorrectionDescription star:CorrectionDescription 0 unbounded
TechnicianNotes star:TechnicianNotes 0 (1)
MiscellaneousNotes star:MiscellaneousNotes 0 (1)
JobDenialCode star:JobDenialCode 0 (1)
JobDenialDescription star:JobDenialDescription 0 unbounded
ComplaintPriorityString star:ComplaintPriorityString 0 (1)
ComplaintCodeTypeString star:ComplaintCodeTypeString 0 (1)
VehicleConcernQuestionAnswer star:VehicleConcernQuestionAnswer 0 unbounded
DefectCode star:DefectCode 0 (1)
ConditionCode star:ConditionCode 0 1
CausalPartIndicator star:CausalPartIndicator 0 1
ServiceRecommendationAcceptanceDateTime star:ServiceRecommendationAcceptanceDateTime 0 1
Collapse Derivation Tree:
Collapse References:
star:CodesAndCommentsExpanded, star:CodesAndCommentsExpanded
