Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: CreditContract
Namespace: http://www.starstandard.org/STAR/5
Type: star:CreditContractType
Containing Schema: CreditContract.xsd
Abstract
Documentation:
CreditContract defines the Credit Contract process for individual dealers to submit credit contracts to lenders.

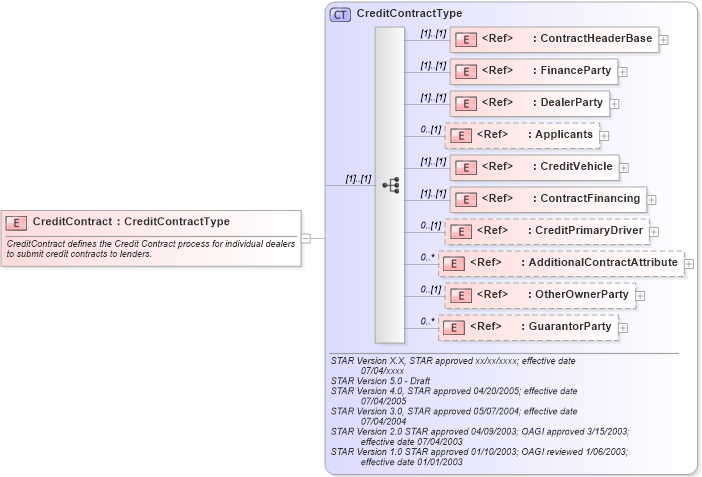

Collapse XSD Schema Diagram:
Drilldown into GuarantorParty in schema components_xsd Drilldown into OtherOwnerParty in schema components_xsd Drilldown into AdditionalContractAttribute in schema components_xsd Drilldown into CreditPrimaryDriver in schema components_xsd Drilldown into ContractFinancing in schema components_xsd Drilldown into CreditVehicle in schema components_xsd Drilldown into Applicants in schema components_xsd Drilldown into DealerParty in schema components_xsd Drilldown into FinanceParty in schema components_xsd Drilldown into ContractHeaderBase in schema components_xsd Drilldown into CreditContractType in schema creditcontract_xsdXSD Diagram of CreditContract in schema creditcontract_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="CreditContract" type="CreditContractType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5">
         	CreditContract defines the Credit Contract process for individual dealers
         	to submit credit contracts to lenders.
         </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ContractHeaderBase star:ContractHeaderBase (1) (1)
FinanceParty star:FinanceParty (1) (1)
DealerParty star:DealerParty (1) (1)
Applicants star:Applicants 0 (1)
CreditVehicle star:CreditVehicle (1) (1)
ContractFinancing star:ContractFinancing (1) (1)
CreditPrimaryDriver star:CreditPrimaryDriver 0 (1)
AdditionalContractAttribute star:AdditionalContractAttribute 0 unbounded
OtherOwnerParty star:OtherOwnerParty 0 (1)
GuarantorParty star:GuarantorParty 0 unbounded
Collapse Derivation Tree:
