Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: DamageType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract

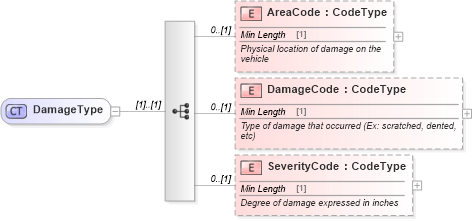

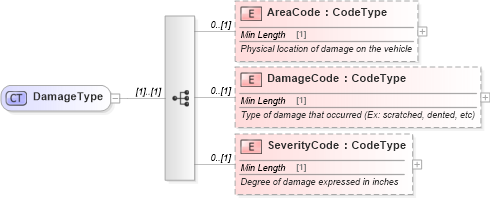

Collapse XSD Schema Diagram:
Drilldown into SeverityCode in schema components_xsd Drilldown into DamageCode in schema components_xsd Drilldown into AreaCode in schema components_xsdXSD Diagram of DamageType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="DamageType">
    <xsd:sequence>
        <xsd:element minOccurs="0" name="AreaCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation>Physical location of damage on the vehicle</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="DamageCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation>Type of damage that occurred (Ex: scratched, dented, etc)</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="SeverityCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation>Degree of damage expressed in inches</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AreaCode star:AreaCode 0 (1)
DamageCode star:DamageCode 0 (1)
SeverityCode star:SeverityCode 0 (1)
Collapse Derivation Tree:
Collapse References:
star:Damage
