Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: DispositionReasonType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract

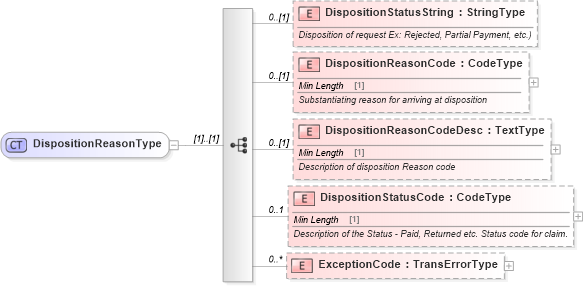

Collapse XSD Schema Diagram:
Drilldown into ExceptionCode in schema components_xsd Drilldown into DispositionStatusCode in schema components_xsd Drilldown into DispositionReasonCodeDesc in schema components_xsd Drilldown into DispositionReasonCode in schema components_xsd Drilldown into DispositionStatusString in schema components_xsdXSD Diagram of DispositionReasonType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="DispositionReasonType">
    <xsd:sequence>
        <xsd:element minOccurs="0" name="DispositionStatusString" type="qdt:StringType">
            <xsd:annotation>
                <xsd:documentation>Disposition of request Ex: Rejected, Partial Payment, etc.)</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="DispositionReasonCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation>Substantiating reason for arriving at disposition</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="DispositionReasonCodeDesc" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>Description of disposition Reason code</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="DispositionStatusCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Description of the Status - Paid, Returned etc. Status code for claim.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ExceptionCode" type="TransErrorType" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DispositionStatusString star:DispositionStatusString 0 (1)
DispositionReasonCode star:DispositionReasonCode 0 (1)
DispositionReasonCodeDesc star:DispositionReasonCodeDesc 0 (1)
DispositionStatusCode star:DispositionStatusCode 0 1
ExceptionCode star:ExceptionCode 0 unbounded
Collapse Derivation Tree:
Collapse References:
star:DispositionReason
