Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: FailureCodesType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract

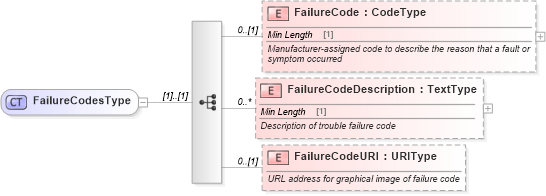

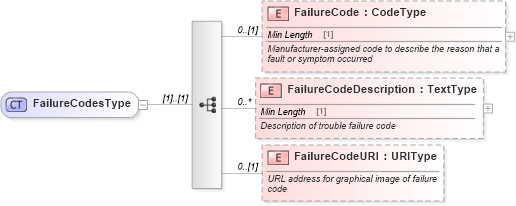

Collapse XSD Schema Diagram:
Drilldown into FailureCodeURI in schema components_xsd Drilldown into FailureCodeDescription in schema components_xsd Drilldown into FailureCode in schema components_xsdXSD Diagram of FailureCodesType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="FailureCodesType">
    <xsd:sequence>
        <xsd:element minOccurs="0" name="FailureCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation>Manufacturer-assigned code to describe the reason that a fault or symptom occurred</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" name="FailureCodeDescription" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>Description of trouble failure code</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="FailureCodeURI" type="qdt:URIType">
            <xsd:annotation>
                <xsd:documentation>URL address for graphical image of failure code</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
FailureCode star:FailureCode 0 (1)
FailureCodeDescription star:FailureCodeDescription 0 unbounded
FailureCodeURI star:FailureCodeURI 0 (1)
Collapse Derivation Tree:
Collapse References:
star:FailureCodes
