Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: FinancialMetricsHeader
Namespace: http://www.starstandard.org/STAR/5
Type: star:FinancialMetricsHeaderType
Containing Schema: FinancialMetrics.xsd
Abstract
Documentation:
For each FinancialMetrics represented in the DataArea of the Financial Metrics Business Object Document, there must be once occurrence of the Header Component.

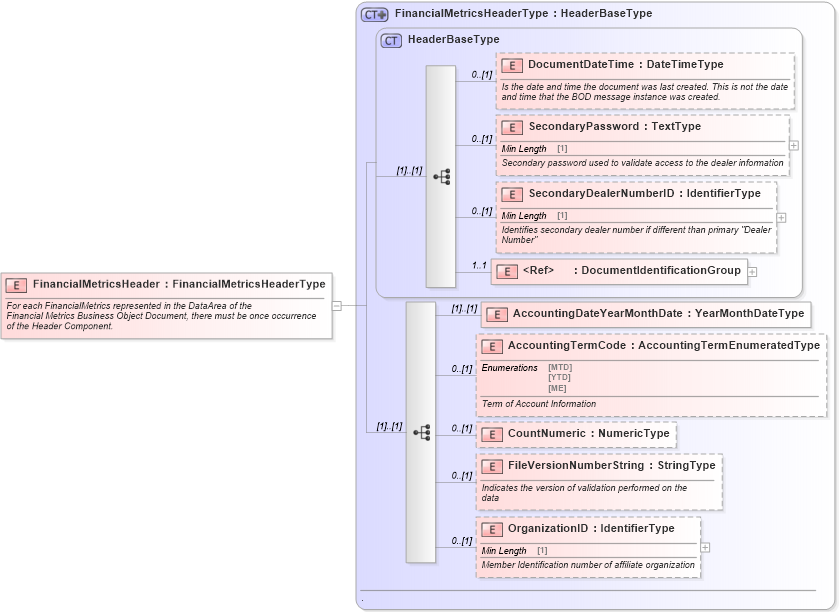

Collapse XSD Schema Diagram:
Drilldown into OrganizationID in schema financialmetrics_xsd Drilldown into FileVersionNumberString in schema financialmetrics_xsd Drilldown into CountNumeric in schema financialmetrics_xsd Drilldown into AccountingTermCode in schema financialmetrics_xsd Drilldown into AccountingDateYearMonthDate in schema financialmetrics_xsd Drilldown into DocumentIdentificationGroup in schema components_xsd Drilldown into SecondaryDealerNumberID in schema components_xsd Drilldown into SecondaryPassword in schema components_xsd Drilldown into DocumentDateTime in schema components_xsd Drilldown into HeaderBaseType in schema components_xsd Drilldown into FinancialMetricsHeaderType in schema financialmetrics_xsdXSD Diagram of FinancialMetricsHeader in schema financialmetrics_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="FinancialMetricsHeader" type="FinancialMetricsHeaderType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org"> For each FinancialMetrics represented in the DataArea of the
            Financial Metrics Business Object Document, there must be once occurrence of the Header Component.
         </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentDateTime star:DocumentDateTime 0 (1)
SecondaryPassword star:SecondaryPassword 0 (1)
SecondaryDealerNumberID star:SecondaryDealerNumberID 0 (1)
DocumentIdentificationGroup star:DocumentIdentificationGroup 1 1
AccountingDateYearMonthDate star:AccountingDateYearMonthDate (1) (1)
AccountingTermCode star:AccountingTermCode 0 (1)
CountNumeric star:CountNumeric 0 (1)
FileVersionNumberString star:FileVersionNumberString 0 (1)
OrganizationID star:OrganizationID 0 (1)
Collapse Derivation Tree:
