Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: FleetAccountType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract
Documentation:
Fleet account information associated with a vehicle.

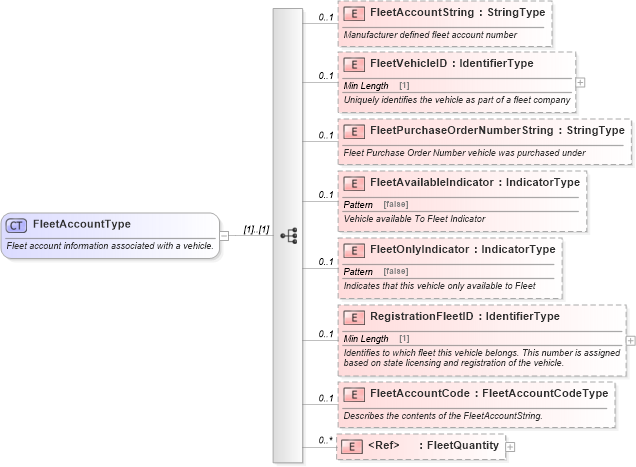

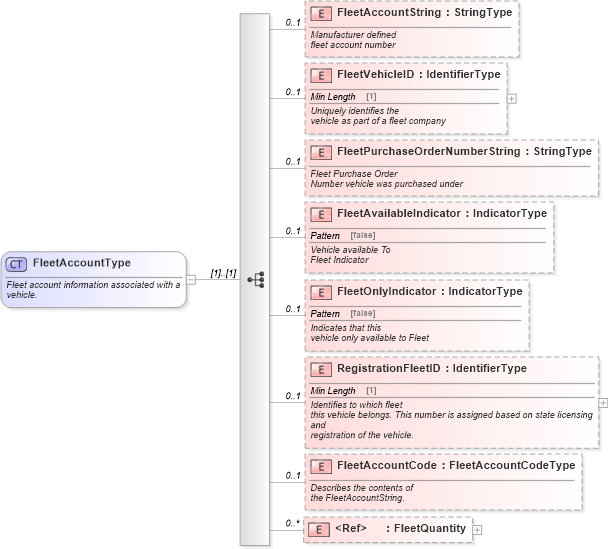

Collapse XSD Schema Diagram:
Drilldown into FleetQuantity in schema components_xsd Drilldown into FleetAccountCode in schema components_xsd Drilldown into RegistrationFleetID in schema components_xsd Drilldown into FleetOnlyIndicator in schema components_xsd Drilldown into FleetAvailableIndicator in schema components_xsd Drilldown into FleetPurchaseOrderNumberString in schema components_xsd Drilldown into FleetVehicleID in schema components_xsd Drilldown into FleetAccountString in schema components_xsdXSD Diagram of FleetAccountType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="FleetAccountType">
    <xsd:annotation>
        <xsd:documentation>Fleet account information associated with a vehicle.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element maxOccurs="1" minOccurs="0" name="FleetAccountString" type="qdt:StringType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Manufacturer defined fleet account number</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="FleetVehicleID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Uniquely identifies the vehicle as part of a fleet company</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="FleetPurchaseOrderNumberString" type="qdt:StringType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Fleet Purchase Order Number vehicle was purchased under</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="FleetAvailableIndicator" type="udt:IndicatorType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Vehicle available To Fleet Indicator</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="FleetOnlyIndicator" type="udt:IndicatorType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates that this vehicle only available to Fleet</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="RegistrationFleetID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Identifies to which fleet this vehicle belongs. This number is assigned based on state licensing and registration of the vehicle.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="FleetAccountCode" type="sqdt:FleetAccountCodeType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Describes the contents of the FleetAccountString.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="FleetQuantity" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
FleetAccountString star:FleetAccountString 0 1
FleetVehicleID star:FleetVehicleID 0 1
FleetPurchaseOrderNumberString star:FleetPurchaseOrderNumberString 0 1
FleetAvailableIndicator star:FleetAvailableIndicator 0 1
FleetOnlyIndicator star:FleetOnlyIndicator 0 1
RegistrationFleetID star:RegistrationFleetID 0 1
FleetAccountCode star:FleetAccountCode 0 1
FleetQuantity star:FleetQuantity 0 unbounded
Collapse Derivation Tree:
Collapse References:
star:FleetAccount
