Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: IncentiveApplicationDataType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: IncentiveApplication.xsd
Abstract
Documentation:
Incentive Applicaton information

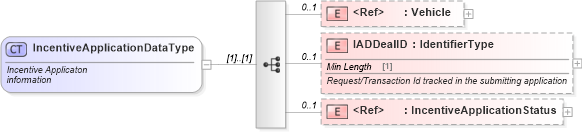

Collapse XSD Schema Diagram:
Drilldown into IncentiveApplicationStatus in schema incentiveapplication_xsd Drilldown into IADDealID in schema incentiveapplication_xsd Drilldown into Vehicle in schema components_xsdXSD Diagram of IncentiveApplicationDataType in schema incentiveapplication_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="IncentiveApplicationDataType">
    <xsd:annotation xmlns="http://www.starstandards.org/STAR">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">Incentive Applicaton
				information</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="Vehicle" minOccurs="0" maxOccurs="1" />
        <xsd:element maxOccurs="1" minOccurs="0" name="IADDealID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
						Request/Transaction Id tracked in the submitting application
					</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="IncentiveApplicationStatus" minOccurs="0" maxOccurs="1">
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Vehicle star:Vehicle 0 1
IADDealID star:IADDealID 0 1
IncentiveApplicationStatus star:IncentiveApplicationStatus 0 1
Collapse Derivation Tree:
Collapse References:
star:IncentiveApplicationData
