Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: IncentiveApplicationType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: IncentiveApplication.xsd
Abstract
Documentation:
The objective of the Incentive BOD is to streamline customer and dealer experience at the point of vehicle sale by providing authentic vehicle incentive information and incentive validation features as well as efficient payment processing mechanism.

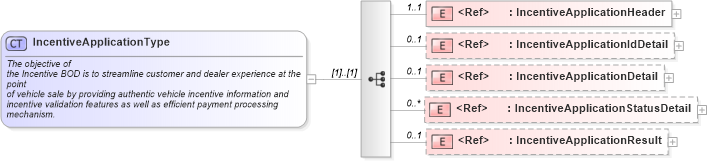

Collapse XSD Schema Diagram:
Drilldown into IncentiveApplicationResult in schema components_xsd Drilldown into IncentiveApplicationStatusDetail in schema incentiveapplication_xsd Drilldown into IncentiveApplicationDetail in schema incentiveapplication_xsd Drilldown into IncentiveApplicationIdDetail in schema incentiveapplication_xsd Drilldown into IncentiveApplicationHeader in schema incentiveapplication_xsdXSD Diagram of IncentiveApplicationType in schema incentiveapplication_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="IncentiveApplicationType">
    <xsd:annotation xmlns="http://www.starstandards.org/STAR">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">
				The objective of
				the Incentive BOD is to streamline customer and dealer experience at the point
				of vehicle sale by providing authentic vehicle incentive information and
				incentive validation features as well as efficient payment processing mechanism.
         	</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element maxOccurs="1" minOccurs="1" ref="IncentiveApplicationHeader" />
        <xsd:element maxOccurs="1" minOccurs="0" ref="IncentiveApplicationIdDetail" />
        <xsd:element maxOccurs="1" minOccurs="0" ref="IncentiveApplicationDetail" />
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="IncentiveApplicationStatusDetail" />
        <xsd:element ref="IncentiveApplicationResult" minOccurs="0" maxOccurs="1">
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IncentiveApplicationHeader star:IncentiveApplicationHeader 1 1
IncentiveApplicationIdDetail star:IncentiveApplicationIdDetail 0 1
IncentiveApplicationDetail star:IncentiveApplicationDetail 0 1
IncentiveApplicationStatusDetail star:IncentiveApplicationStatusDetail 0 unbounded
IncentiveApplicationResult star:IncentiveApplicationResult 0 1
Collapse Derivation Tree:
Collapse References:
star:IncentiveApplication
