Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: IncentiveDetailProductType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: IncentiveInquiry.xsd
Abstract
Documentation:
Incentive Detail Product
Collapse XSD Schema Diagram:

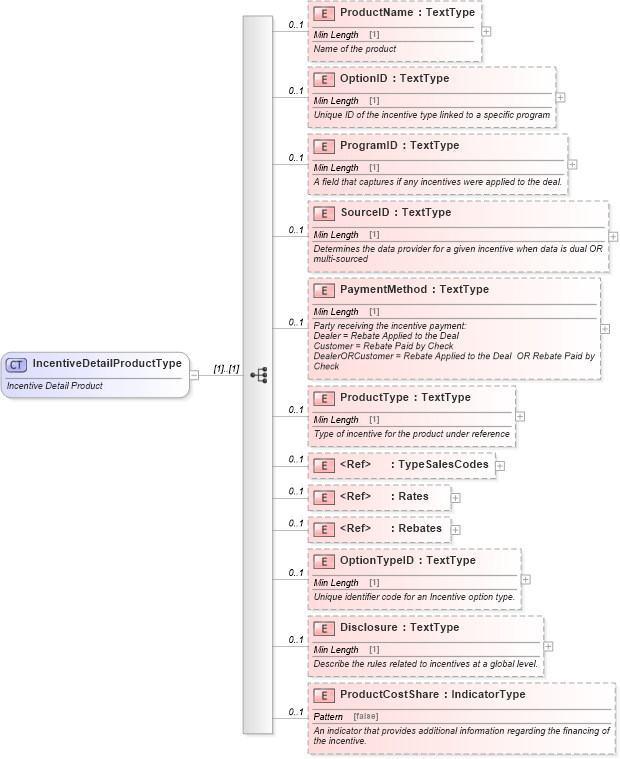

Drilldown into ProductCostShare in schema incentiveinquiry_xsd Drilldown into Disclosure in schema incentiveinquiry_xsd Drilldown into OptionTypeID in schema incentiveinquiry_xsd Drilldown into Rebates in schema incentiveinquiry_xsd Drilldown into Rates in schema incentiveinquiry_xsd Drilldown into TypeSalesCodes in schema components_xsd Drilldown into ProductType in schema incentiveinquiry_xsd Drilldown into PaymentMethod in schema incentiveinquiry_xsd Drilldown into SourceID in schema incentiveinquiry_xsd Drilldown into ProgramID in schema incentiveinquiry_xsd Drilldown into OptionID in schema incentiveinquiry_xsd Drilldown into ProductName in schema incentiveinquiry_xsdXSD Diagram of IncentiveDetailProductType in schema incentiveinquiry_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="IncentiveDetailProductType">
    <xsd:annotation xmlns="http://www.starstandards.org/STAR">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">
				Incentive Detail Product
			</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element minOccurs="0" maxOccurs="1" name="ProductName" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
						Name of the product
					</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" maxOccurs="1" name="OptionID" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
						Unique ID of the incentive type linked to a specific program
					</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" maxOccurs="1" name="ProgramID" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
						A field that captures if any incentives were applied to the deal.
					</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" maxOccurs="1" name="SourceID" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
						Determines the data provider for a given incentive when data is dual OR multi-sourced
					</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" maxOccurs="1" name="PaymentMethod" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
						Party receiving the incentive payment:
						Dealer = Rebate Applied to the Deal
						Customer = Rebate Paid by Check
						DealerORCustomer = Rebate Applied to the Deal  OR Rebate Paid by Check
					</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" maxOccurs="1" name="ProductType" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
						Type of incentive for the product under reference
					</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="TypeSalesCodes" minOccurs="0" maxOccurs="1">
        </xsd:element>
        <xsd:element ref="Rates" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="Rebates" minOccurs="0" maxOccurs="1" />
        <xsd:element minOccurs="0" maxOccurs="1" name="OptionTypeID" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
						Unique identifier code for an Incentive option type.
					</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" maxOccurs="1" name="Disclosure" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
						Describe the rules related to incentives at a global level.
					</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" maxOccurs="1" name="ProductCostShare" type="udt:IndicatorType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
						An indicator that provides additional information regarding the financing of the incentive.
					</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ProductName star:ProductName 0 1
OptionID star:OptionID 0 1
ProgramID star:ProgramID 0 1
SourceID star:SourceID 0 1
PaymentMethod star:PaymentMethod 0 1
ProductType star:ProductType 0 1
TypeSalesCodes star:TypeSalesCodes 0 1
Rates star:Rates 0 1
Rebates star:Rebates 0 1
OptionTypeID star:OptionTypeID 0 1
Disclosure star:Disclosure 0 1
ProductCostShare star:ProductCostShare 0 1
Collapse Derivation Tree:
Collapse References:
star:IncentiveDetailProduct
