Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: IncentiveInquiryLineType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: IncentiveInquiry.xsd
Abstract
Documentation:
This component contains the request information for the Incentive inquiry.

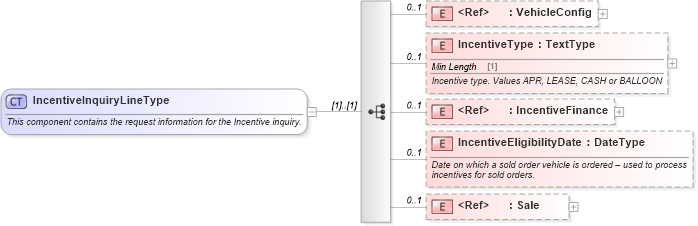

Collapse XSD Schema Diagram:
Drilldown into Sale in schema incentiveinquiry_xsd Drilldown into IncentiveEligibilityDate in schema incentiveinquiry_xsd Drilldown into IncentiveFinance in schema incentiveinquiry_xsd Drilldown into IncentiveType in schema incentiveinquiry_xsd Drilldown into VehicleConfig in schema incentiveinquiry_xsdXSD Diagram of IncentiveInquiryLineType in schema incentiveinquiry_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="IncentiveInquiryLineType">
    <xsd:annotation xmlns="http://www.starstandards.org/STAR">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">
				This component contains the request information for the Incentive inquiry.
			</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="VehicleConfig" minOccurs="0" maxOccurs="1" />
        <xsd:element minOccurs="0" maxOccurs="1" name="IncentiveType" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
						Incentive type. Values APR, LEASE, CASH or BALLOON
					</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="IncentiveFinance" minOccurs="0" maxOccurs="1" />
        <xsd:element minOccurs="0" maxOccurs="1" name="IncentiveEligibilityDate" type="udt:DateType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
						Date on which a sold order vehicle is ordered – used to process incentives for sold orders.
					</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Sale" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
VehicleConfig star:VehicleConfig 0 1
IncentiveType star:IncentiveType 0 1
IncentiveFinance star:IncentiveFinance 0 1
IncentiveEligibilityDate star:IncentiveEligibilityDate 0 1
Sale star:Sale 0 1
Collapse Derivation Tree:
Collapse References:
star:IncentiveInquiryLine
