Definition Type: ComplexType
Name: JobReconciliationType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract

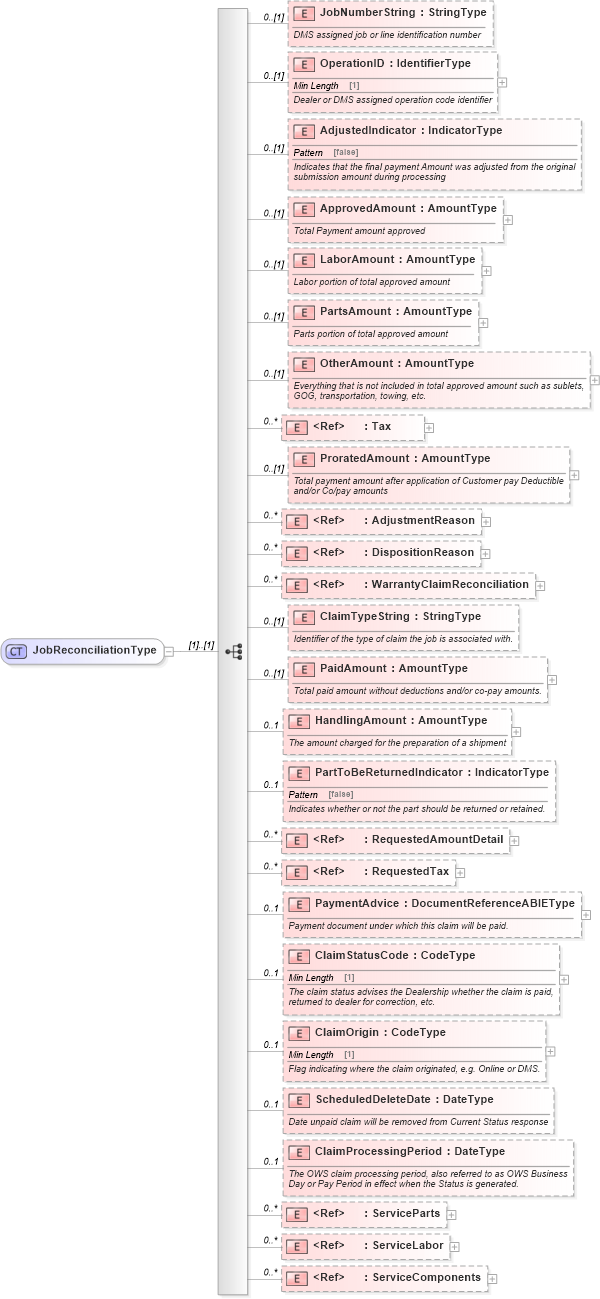

Collapse XSD Schema Diagram:
Drilldown into ServiceComponents in schema components_xsd Drilldown into ServiceLabor in schema components_xsd Drilldown into ServiceParts in schema components_xsd Drilldown into ClaimProcessingPeriod in schema components_xsd Drilldown into ScheduledDeleteDate in schema components_xsd Drilldown into ClaimOrigin in schema components_xsd Drilldown into ClaimStatusCode in schema components_xsd Drilldown into PaymentAdvice in schema components_xsd Drilldown into RequestedTax in schema components_xsd Drilldown into RequestedAmountDetail in schema components_xsd Drilldown into PartToBeReturnedIndicator in schema components_xsd Drilldown into HandlingAmount in schema components_xsd Drilldown into PaidAmount in schema components_xsd Drilldown into ClaimTypeString in schema components_xsd Drilldown into WarrantyClaimReconciliation in schema components_xsd Drilldown into DispositionReason in schema components_xsd Drilldown into AdjustmentReason in schema components_xsd Drilldown into ProratedAmount in schema components_xsd Drilldown into Tax in schema components_xsd Drilldown into OtherAmount in schema components_xsd Drilldown into PartsAmount in schema components_xsd Drilldown into LaborAmount in schema components_xsd Drilldown into ApprovedAmount in schema components_xsd Drilldown into AdjustedIndicator in schema components_xsd Drilldown into OperationID in schema components_xsd Drilldown into JobNumberString in schema components_xsdXSD Diagram of JobReconciliationType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="JobReconciliationType">
    <xsd:sequence>
        <xsd:element minOccurs="0" name="JobNumberString" type="qdt:StringType">
            <xsd:annotation>
                <xsd:documentation>DMS assigned job or line identification number</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="OperationID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation>Dealer or DMS assigned operation code identifier</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="AdjustedIndicator" type="udt:IndicatorType">
            <xsd:annotation>
                <xsd:documentation>Indicates that the final payment Amount was adjusted from the original submission amount during processing</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="ApprovedAmount" type="udt:AmountType">
            <xsd:annotation>
                <xsd:documentation>Total Payment amount approved</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="LaborAmount" type="udt:AmountType">
            <xsd:annotation>
                <xsd:documentation>Labor portion of total approved amount</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="PartsAmount" type="udt:AmountType">
            <xsd:annotation>
                <xsd:documentation>Parts portion of total approved amount</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="OtherAmount" type="udt:AmountType">
            <xsd:annotation>
                <xsd:documentation>Everything that is not included in total approved amount such as sublets, GOG, transportation, towing, etc.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Tax">
            <xsd:annotation>
                <xsd:documentation>Amount of job tax for total, labor, parts, prorated and other.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="ProratedAmount" type="udt:AmountType">
            <xsd:annotation>
                <xsd:documentation>Total payment amount after application of Customer pay Deductible and/or Co/pay amounts</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="AdjustmentReason">
            <xsd:annotation>
                <xsd:documentation>Reason that adjustment was made on request</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="DispositionReason">
            <xsd:annotation>
                <xsd:documentation>Reason that disposition was changed on request</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="WarrantyClaimReconciliation">
            <xsd:annotation>
                <xsd:documentation>Warranty Claim information associated with Job</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="ClaimTypeString" type="qdt:StringType">
            <xsd:annotation>
                <xsd:documentation>Identifier of the type of claim the job is associated with.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="PaidAmount" type="udt:AmountType">
            <xsd:annotation>
                <xsd:documentation>Total paid amount without deductions and/or co-pay amounts.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="HandlingAmount" type="udt:AmountType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The amount charged for the preparation of a shipment</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="PartToBeReturnedIndicator" type="udt:IndicatorType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates whether or not the part should be returned or retained.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="RequestedAmountDetail" />
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="RequestedTax" />
        <xsd:element name="PaymentAdvice" minOccurs="0" maxOccurs="1" type="DocumentReferenceABIEType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Payment document under which this claim will be paid.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ClaimStatusCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The claim status advises the Dealership whether the claim is paid, returned to dealer for correction, etc.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ClaimOrigin" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Flag indicating where the claim originated, e.g. Online or DMS.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ScheduledDeleteDate" type="udt:DateType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Date unpaid claim will be removed from Current Status response</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ClaimProcessingPeriod" type="udt:DateType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The OWS claim processing period, also referred to as OWS Business Day or Pay Period in effect when the Status is generated.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ServiceParts" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ServiceLabor" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ServiceComponents" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
JobNumberString star:JobNumberString 0 (1)
OperationID star:OperationID 0 (1)
AdjustedIndicator star:AdjustedIndicator 0 (1)
ApprovedAmount star:ApprovedAmount 0 (1)
LaborAmount star:LaborAmount 0 (1)
PartsAmount star:PartsAmount 0 (1)
OtherAmount star:OtherAmount 0 (1)
Tax star:Tax 0 unbounded
ProratedAmount star:ProratedAmount 0 (1)
AdjustmentReason star:AdjustmentReason 0 unbounded
DispositionReason star:DispositionReason 0 unbounded
WarrantyClaimReconciliation star:WarrantyClaimReconciliation 0 unbounded
ClaimTypeString star:ClaimTypeString 0 (1)
PaidAmount star:PaidAmount 0 (1)
HandlingAmount star:HandlingAmount 0 1
PartToBeReturnedIndicator star:PartToBeReturnedIndicator 0 1
RequestedAmountDetail star:RequestedAmountDetail 0 unbounded
RequestedTax star:RequestedTax 0 unbounded
PaymentAdvice star:PaymentAdvice 0 1
ClaimStatusCode star:ClaimStatusCode 0 1
ClaimOrigin star:ClaimOrigin 0 1
ScheduledDeleteDate star:ScheduledDeleteDate 0 1
ClaimProcessingPeriod star:ClaimProcessingPeriod 0 1
ServiceParts star:ServiceParts 0 unbounded
ServiceLabor star:ServiceLabor 0 unbounded
ServiceComponents star:ServiceComponents 0 unbounded
Collapse Derivation Tree:
Collapse References:
star:JobReconciliation
