Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: LicenseGeoLocation
Namespace: http://www.starstandard.org/STAR/5
Type: star:LocationType
Containing Schema: RepairOrder.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
State, Province, etc. that hich has issued the license plate.

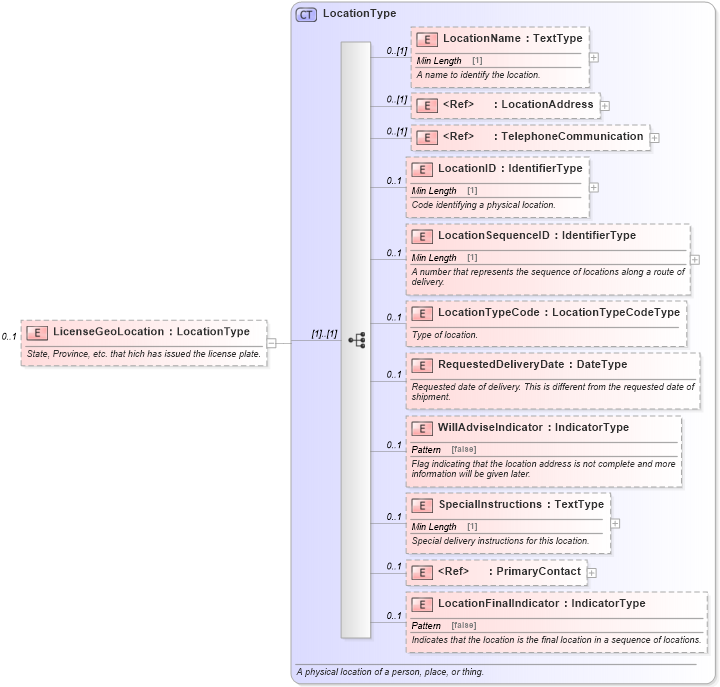

Collapse XSD Schema Diagram:
Drilldown into LocationFinalIndicator in schema components_xsd Drilldown into PrimaryContact in schema components_xsd Drilldown into SpecialInstructions in schema components_xsd Drilldown into WillAdviseIndicator in schema components_xsd Drilldown into RequestedDeliveryDate in schema components_xsd Drilldown into LocationTypeCode in schema components_xsd Drilldown into LocationSequenceID in schema components_xsd Drilldown into LocationID in schema components_xsd Drilldown into TelephoneCommunication in schema components_xsd Drilldown into LocationAddress in schema components_xsd Drilldown into LocationName in schema components_xsd Drilldown into LocationType in schema components_xsdXSD Diagram of LicenseGeoLocation in schema repairorder_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="LicenseGeoLocation" type="LocationType" minOccurs="0" maxOccurs="1">
    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">
         			State, Province, etc. that hich has issued the license plate.
         		</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LocationName star:LocationName 0 (1)
LocationAddress star:LocationAddress 0 (1)
TelephoneCommunication star:TelephoneCommunication 0 (1)
LocationID star:LocationID 0 1
LocationSequenceID star:LocationSequenceID 0 1
LocationTypeCode star:LocationTypeCode 0 1
RequestedDeliveryDate star:RequestedDeliveryDate 0 1
WillAdviseIndicator star:WillAdviseIndicator 0 1
SpecialInstructions star:SpecialInstructions 0 1
PrimaryContact star:PrimaryContact 0 1
LocationFinalIndicator star:LocationFinalIndicator 0 1
Collapse Derivation Tree:
