Definition Type: ComplexType
Name: MinimumAcknowledgementStatusType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract

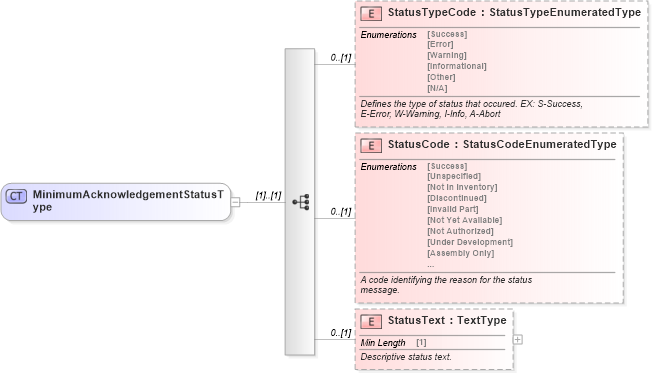

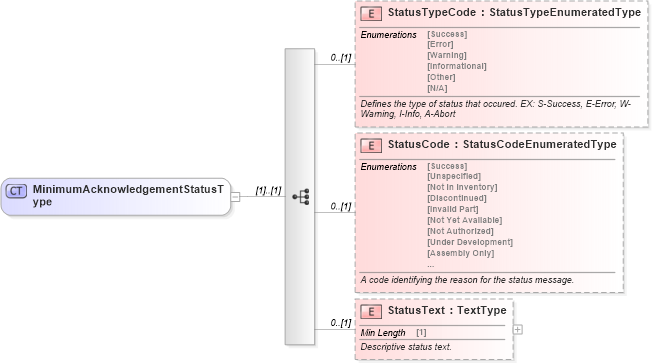

Collapse XSD Schema Diagram:
Drilldown into StatusText in schema components_xsd Drilldown into StatusCode in schema components_xsd Drilldown into StatusTypeCode in schema components_xsdXSD Diagram of MinimumAcknowledgementStatusType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="MinimumAcknowledgementStatusType">
    <xsd:sequence>
        <xsd:element minOccurs="0" name="StatusTypeCode" type="scl:StatusTypeEnumeratedType">
            <xsd:annotation>
                <xsd:documentation>Defines the type of status that occured. EX: S-Success, E-Error, W-Warning, I-Info, A-Abort</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="StatusCode" type="scl:StatusCodeEnumeratedType">
            <xsd:annotation>
                <xsd:documentation>A code identifying the reason for the status message.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="StatusText" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>Descriptive status text.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
StatusTypeCode star:StatusTypeCode 0 (1)
StatusCode star:StatusCode 0 (1)
StatusText star:StatusText 0 (1)
Collapse Derivation Tree:
Collapse References:
star:LineStatus, star:LineStatusMinimumAcknowledgementStatus, star:MinimumAcknowledgementStatus, star:Status, star:Status, star:Status, star:Status, star:Status
