Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: ModelCodes
Namespace: http://www.starstandard.org/STAR/5
Type: star:ModelCodesType
Containing Schema: ModelCodes.xsd
Abstract
Documentation:
ModelCodes provides real-time access to vehicle model code data through inquiries and searches. Model Codes is the task of sending the vehicle model code information electronically between Dealer and OEM systems.

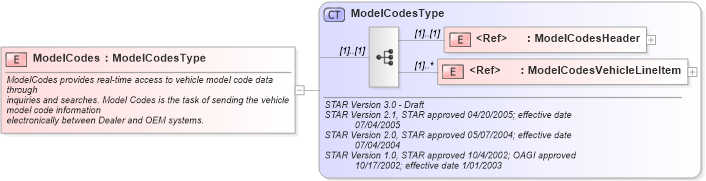

Collapse XSD Schema Diagram:
Drilldown into ModelCodesVehicleLineItem in schema modelcodes_xsd Drilldown into ModelCodesHeader in schema modelcodes_xsd Drilldown into ModelCodesType in schema modelcodes_xsdXSD Diagram of ModelCodes in schema modelcodes_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="ModelCodes" type="ModelCodesType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5">
         	ModelCodes provides real-time access to vehicle model code data through
         	inquiries and searches. Model Codes is the task of sending the vehicle model code information
         	electronically between Dealer and OEM systems.
		  </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ModelCodesHeader star:ModelCodesHeader (1) (1)
ModelCodesVehicleLineItem star:ModelCodesVehicleLineItem (1) unbounded
Collapse Derivation Tree:
