Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: MonthlyWorkshopReportHeaderType
Namespace: http://www.starstandard.org/STAR/5
Type: star:HeaderBaseType
Containing Schema: MonthlyWorkshopReport.xsd
Abstract
Documentation:
Monthly Workshop Report header information.

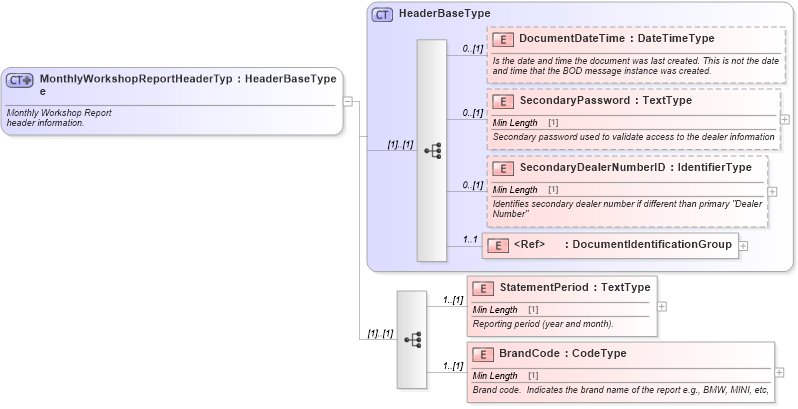

Collapse XSD Schema Diagram:
Drilldown into BrandCode in schema monthlyworkshopreport_xsd Drilldown into StatementPeriod in schema monthlyworkshopreport_xsd Drilldown into DocumentIdentificationGroup in schema components_xsd Drilldown into SecondaryDealerNumberID in schema components_xsd Drilldown into SecondaryPassword in schema components_xsd Drilldown into DocumentDateTime in schema components_xsd Drilldown into HeaderBaseType in schema components_xsdXSD Diagram of MonthlyWorkshopReportHeaderType in schema monthlyworkshopreport_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="MonthlyWorkshopReportHeaderType">
    <xsd:annotation xmlns="http://www.starstandards.org/STAR">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">Monthly Workshop Report
				header information.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="HeaderBaseType">
            <xsd:sequence>
                <xsd:element name="StatementPeriod" type="udt:TextType" minOccurs="1">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">
								Reporting period (year and month).
							</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="BrandCode" type="udt:CodeType" minOccurs="1">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">
								Brand code.  Indicates the brand name of the report e.g., BMW, MINI, etc,
							</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentDateTime star:DocumentDateTime 0 (1)
SecondaryPassword star:SecondaryPassword 0 (1)
SecondaryDealerNumberID star:SecondaryDealerNumberID 0 (1)
DocumentIdentificationGroup star:DocumentIdentificationGroup 1 1
StatementPeriod star:StatementPeriod 1 (1)
BrandCode star:BrandCode 1 (1)
Collapse Derivation Tree:
Collapse References:
star:MonthlyWorkshopReportHeader
