Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: MVDealManagement
Namespace: http://www.starstandard.org/STAR/5
Type: star:MVDealManagementType
Containing Schema: ValidMultipleVehicleIncentiveRequest.xsd
Abstract
Documentation:
This section allows the calling application to select the amount of data that is returned in the response. It is possible to limit the response to only the highest level incentives or to request the full detail of every available incentive within the deal.

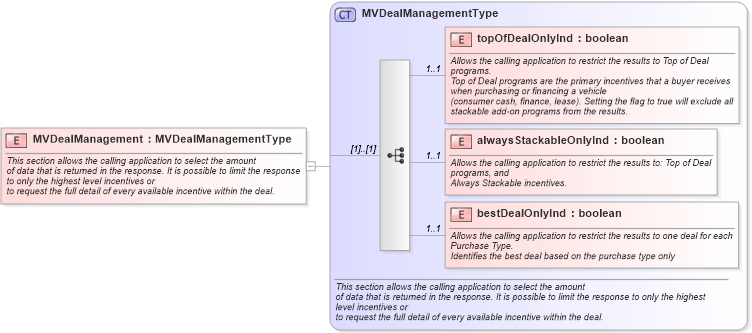

Collapse XSD Schema Diagram:
Drilldown into bestDealOnlyInd in schema validmultiplevehicleincentiverequest_xsd Drilldown into alwaysStackableOnlyInd in schema validmultiplevehicleincentiverequest_xsd Drilldown into topOfDealOnlyInd in schema validmultiplevehicleincentiverequest_xsd Drilldown into MVDealManagementType in schema validmultiplevehicleincentiverequest_xsdXSD Diagram of MVDealManagement in schema validmultiplevehicleincentiverequest_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="MVDealManagement" type="MVDealManagementType">
    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">This section allows the calling application to select the amount
            of data that is returned in the response. It is possible to limit the response to only the highest level incentives or
            to request the full detail of every available incentive within the deal.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
topOfDealOnlyInd star:topOfDealOnlyInd 1 1
alwaysStackableOnlyInd star:alwaysStackableOnlyInd 1 1
bestDealOnlyInd star:bestDealOnlyInd 1 1
Collapse Derivation Tree:
