Definition Type: ComplexType
Name: MVResponseDealManagementType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: ValidMultipleVehicleIncentiveResponse.xsd
Abstract
Documentation:
This section allows the calling application to select the amount of data that is returned in the response. It is possible to limit the response to only the highest level incentives or to request the full detail of every available incentive within the deal.
Collapse XSD Schema Diagram:

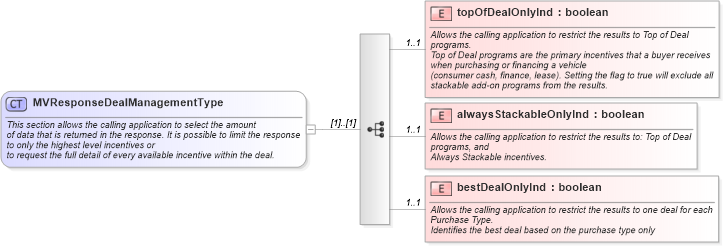

Drilldown into bestDealOnlyInd in schema validmultiplevehicleincentiveresponse_xsd Drilldown into alwaysStackableOnlyInd in schema validmultiplevehicleincentiveresponse_xsd Drilldown into topOfDealOnlyInd in schema validmultiplevehicleincentiveresponse_xsdXSD Diagram of MVResponseDealManagementType in schema validmultiplevehicleincentiveresponse_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="MVResponseDealManagementType">
    <xsd:annotation xmlns="http://www.starstandards.org/STAR">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">This section allows the calling application to select the amount
            of data that is returned in the response. It is possible to limit the response to only the highest level incentives or
            to request the full detail of every available incentive within the deal.
         </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="topOfDealOnlyInd" type="xsd:boolean" minOccurs="1" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Allows the calling application to restrict the results to Top of Deal programs.
                  Top of Deal programs are the primary incentives that a buyer receives when purchasing or financing a vehicle
                  (consumer cash, finance, lease). Setting the flag to true will exclude all stackable add-on programs from the results.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="alwaysStackableOnlyInd" type="xsd:boolean" minOccurs="1" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Allows the calling application to restrict the results to: Top of Deal programs, and
                  Always Stackable incentives.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="bestDealOnlyInd" type="xsd:boolean" minOccurs="1" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Allows the calling application to restrict the results to one deal for each Purchase Type.
                  Identifies the best deal based on the purchase type only</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
topOfDealOnlyInd star:topOfDealOnlyInd 1 1
alwaysStackableOnlyInd star:alwaysStackableOnlyInd 1 1
bestDealOnlyInd star:bestDealOnlyInd 1 1
Collapse Derivation Tree:
Collapse References:
star:MVResponseDealManagement
