Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: MVResponseProgramIdentification
Namespace: http://www.starstandard.org/STAR/5
Type: star:MVResponseProgramIdentificationType
Containing Schema: ValidMultipleVehicleIncentiveResponse.xsd
Abstract

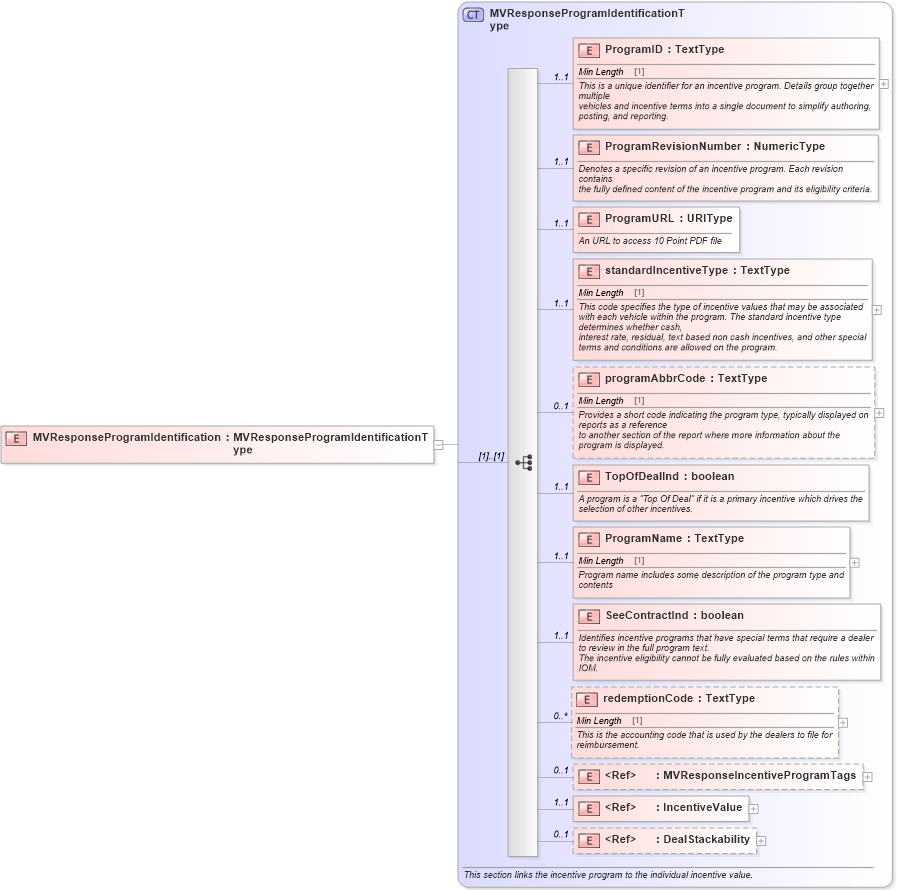

Collapse XSD Schema Diagram:
Drilldown into DealStackability in schema components_xsd Drilldown into IncentiveValue in schema components_xsd Drilldown into MVResponseIncentiveProgramTags in schema validmultiplevehicleincentiveresponse_xsd Drilldown into redemptionCode in schema validmultiplevehicleincentiveresponse_xsd Drilldown into SeeContractInd in schema validmultiplevehicleincentiveresponse_xsd Drilldown into ProgramName in schema validmultiplevehicleincentiveresponse_xsd Drilldown into TopOfDealInd in schema validmultiplevehicleincentiveresponse_xsd Drilldown into programAbbrCode in schema validmultiplevehicleincentiveresponse_xsd Drilldown into standardIncentiveType in schema validmultiplevehicleincentiveresponse_xsd Drilldown into ProgramURL in schema validmultiplevehicleincentiveresponse_xsd Drilldown into ProgramRevisionNumber in schema validmultiplevehicleincentiveresponse_xsd Drilldown into ProgramID in schema validmultiplevehicleincentiveresponse_xsd Drilldown into MVResponseProgramIdentificationType in schema validmultiplevehicleincentiveresponse_xsdXSD Diagram of MVResponseProgramIdentification in schema validmultiplevehicleincentiveresponse_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="MVResponseProgramIdentification" type="MVResponseProgramIdentificationType">
    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
        <xsd:documentation source="http://www.starstandard.org/STAR/5" />
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ProgramID star:ProgramID 1 1
ProgramRevisionNumber star:ProgramRevisionNumber 1 1
ProgramURL star:ProgramURL 1 1
standardIncentiveType star:standardIncentiveType 1 1
programAbbrCode star:programAbbrCode 0 1
TopOfDealInd star:TopOfDealInd 1 1
ProgramName star:ProgramName 1 1
SeeContractInd star:SeeContractInd 1 1
redemptionCode star:redemptionCode 0 unbounded
MVResponseIncentiveProgramTags star:MVResponseIncentiveProgramTags 0 1
IncentiveValue star:IncentiveValue 1 1
DealStackability star:DealStackability 0 1
Collapse Derivation Tree:
