Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: PartsDeliveryDetailsShippingConditionType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract
Documentation:
Defines shipping conditions based on order type

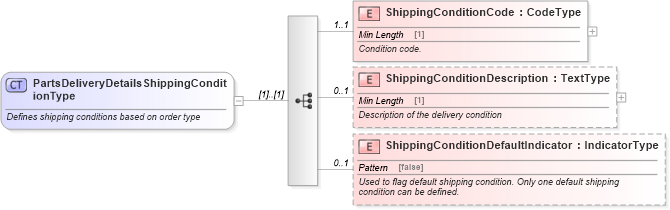

Collapse XSD Schema Diagram:
Drilldown into ShippingConditionDefaultIndicator in schema components_xsd Drilldown into ShippingConditionDescription in schema components_xsd Drilldown into ShippingConditionCode in schema components_xsdXSD Diagram of PartsDeliveryDetailsShippingConditionType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="PartsDeliveryDetailsShippingConditionType">
    <xsd:annotation xmlns="http://www.starstandards.org/STAR">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">
                Defines shipping conditions based on order type
            </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="ShippingConditionCode" type="udt:CodeType" minOccurs="1" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                        Condition code.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ShippingConditionDescription" type="udt:TextType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                        Description of the delivery condition
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ShippingConditionDefaultIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                        Used to flag default shipping condition. Only one default shipping condition can be defined.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ShippingConditionCode star:ShippingConditionCode 1 1
ShippingConditionDescription star:ShippingConditionDescription 0 1
ShippingConditionDefaultIndicator star:ShippingConditionDefaultIndicator 0 1
Collapse Derivation Tree:
Collapse References:
star:ShippingCondition
