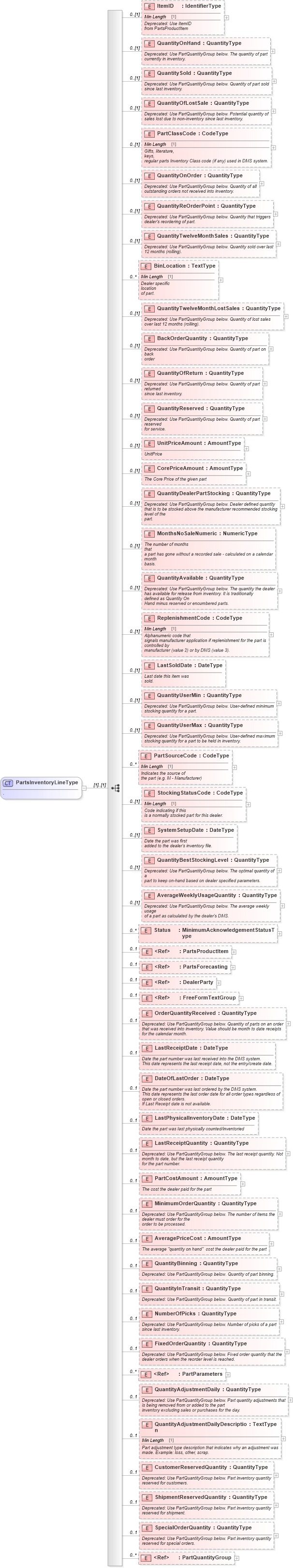

<xsd:complexType name="PartsInventoryLineType">
<xsd:annotation xmlns="http://www.starstandards.org/STAR">
<xsd:documentation source="http://www.starstandard.org/STAR/5">.</xsd:documentation>
</xsd:annotation>
<xsd:sequence>
<xsd:element name="ItemID" type="udt:IdentifierType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated: Use ItemID
from PartsProductItem</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuantityOnHand" type="sqdt:QuantityType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated: Use PartQuantityGroup below. The quantity of part
currently in inventory.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuantitySold" type="sqdt:QuantityType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated: Use PartQuantityGroup below. Quantity of part sold
since last inventory.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuantityOfLostSale" type="sqdt:QuantityType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated: Use PartQuantityGroup below. Potential quantity of
sales lost due to non-inventory since last inventory.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="PartClassCode" type="udt:CodeType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Gifts, literature,
keys,
regular parts Inventory Class code (if any) used in DMS system.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuantityOnOrder" type="sqdt:QuantityType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated: Use PartQuantityGroup below. Quantity of all
outstanding orders not received into inventory.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuantityReOrderPoint" type="sqdt:QuantityType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated: Use PartQuantityGroup below. Quantity that triggers
dealer's reordering of part.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuantityTwelveMonthSales" type="sqdt:QuantityType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated: Use PartQuantityGroup below. Quantity sold over last
12 months (rolling).</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="BinLocation" type="udt:TextType" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Dealer specific
location
of part.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuantityTwelveMonthLostSales" type="sqdt:QuantityType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated: Use PartQuantityGroup below. Quantity of lost sales
over last 12 months (rolling).</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="BackOrderQuantity" type="sqdt:QuantityType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated: Use PartQuantityGroup below. Quantity of part on
back
order</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuantityOfReturn" type="sqdt:QuantityType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated: Use PartQuantityGroup below. Quantity of part
returned
since last inventory.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuantityReserved" type="sqdt:QuantityType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated: Use PartQuantityGroup below. Quantity of part
reserved
for service.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="UnitPriceAmount" type="udt:AmountType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">UnitPrice
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="CorePriceAmount" type="udt:AmountType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">The Core Price of the given part
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuantityDealerPartStocking" type="sqdt:QuantityType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated: Use PartQuantityGroup below. Dealer defined quantity
that is to be stocked above the manufacturer recommended stocking
level of the
part.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="MonthsNoSaleNumeric" type="udt:NumericType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">The number of months
that
a part has gone without a recorded sale - calculated on a calendar
month
basis.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuantityAvailable" type="sqdt:QuantityType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated: Use PartQuantityGroup below. The quantity the dealer
has available for release from inventory. It is traditionally
defined as Quantity On
Hand minus reserved or encumbered parts.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ReplenishmentCode" type="udt:CodeType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Alphanumeric code that
signals manufacturer application if replenishment for the part is
controlled by
manufacturer (value 2) or by DMS (value 3).</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="LastSoldDate" type="udt:DateType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Last date this item was
sold.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuantityUserMin" type="sqdt:QuantityType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated: Use PartQuantityGroup below. User-defined minimum
stocking quantity for a part.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuantityUserMax" type="sqdt:QuantityType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated: Use PartQuantityGroup below. User-defined maximum
stocking quantity for a part to be held in inventory.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="PartSourceCode" type="udt:CodeType" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates the source of
the part (e.g. M - Manufacturer)</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="StockingStatusCode" type="udt:CodeType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Code indicating if this
is a normally stocked part for this dealer.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="SystemSetupDate" type="udt:DateType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Date the part was first
added to the dealer's inventory file.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuantityBestStockingLevel" type="sqdt:QuantityType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated: Use PartQuantityGroup below. The optimal quantity of
a
part to keep on-hand based on dealer specified parameters.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="AverageWeeklyUsageQuantity" type="sqdt:QuantityType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated: Use PartQuantityGroup below. The average weekly
usage
of a part as calculated by the dealer's DMS.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="Status" type="MinimumAcknowledgementStatusType" minOccurs="0" maxOccurs="unbounded" />
<xsd:element ref="PartsProductItem" minOccurs="0" maxOccurs="1" />
<xsd:element ref="PartsForecasting" minOccurs="0" maxOccurs="1" />
<xsd:element ref="DealerParty" minOccurs="0" maxOccurs="1" />
<xsd:element ref="FreeFormTextGroup" minOccurs="0" maxOccurs="1" />
<xsd:element name="OrderQuantityReceived" type="sqdt:QuantityType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated: Use PartQuantityGroup below. Quantity of parts on an order that was received into inventory. Value should be month to date receipts for the calendar month.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="LastReceiptDate" type="udt:DateType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Date the part number was last received into the DMS system.
This date represents the last receipt date, not the entry/create date.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="DateOfLastOrder" type="udt:DateType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Date the part number was last ordered by the DMS system.
This date represents the last order date for all order types regardless of open or closed orders.
If Last Receipt date is not available.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="LastPhysicalInventoryDate" type="udt:DateType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Date the part was last physically counted/inventoried</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="LastReceiptQuantity" type="sqdt:QuantityType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated: Use PartQuantityGroup below. The last receipt quantity. Not month to date, but the last receipt quantity
for the part number. </xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="PartCostAmount" type="udt:AmountType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">The cost the dealer paid for the part</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="MinimumOrderQuantity" type="sqdt:QuantityType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated: Use PartQuantityGroup below. The number of items the dealer must order for the
order to be processed.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="AveragePriceCost" type="udt:AmountType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">The average "quantity on hand" cost the dealer paid for the part</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuantityBinning" type="udt:QuantityType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">
Deprecated: Use PartQuantityGroup below. Quantity of part binning.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuantityInTransit" type="udt:QuantityType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">
Deprecated: Use PartQuantityGroup below. Quantity of part in transit.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="NumberOfPicks" type="udt:QuantityType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">
Deprecated: Use PartQuantityGroup below. Number of picks of a part since last inventory.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="FixedOrderQuantity" type="udt:QuantityType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">
Deprecated: Use PartQuantityGroup below. Fixed order quantity that the dealer orders when the reorder level is reached.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element ref="PartParameters" minOccurs="0" maxOccurs="unbounded">
</xsd:element>
<xsd:element name="QuantityAdjustmentDaily" type="udt:QuantityType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">
Deprecated: Use PartQuantityGroup below. Part quantity adjustments that is being removed from or added to the part
inventory excluding sales or purchases for the day.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuantityAdjustmentDailyDescription" type="udt:TextType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">
Part adjustment type description that indicates why an adjustment was made. Example: loss, other, scrap.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="CustomerReservedQuantity" type="udt:QuantityType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">
Deprecated: Use PartQuantityGroup below. Part inventory quantity reserved for customers.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ShipmentReservedQuantity" type="udt:QuantityType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">
Deprecated: Use PartQuantityGroup below. Part inventory quantity reserved for shipment.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="SpecialOrderQuantity" type="udt:QuantityType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">
Deprecated: Use PartQuantityGroup below. Part inventory quantity reserved for special orders.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element ref="PartQuantityGroup" minOccurs="0" maxOccurs="unbounded">
</xsd:element>
</xsd:sequence>
</xsd:complexType>
|
XSD Schema Diagram:
