Definition Type: Element
Name: PartsLocator
Namespace: http://www.starstandard.org/STAR/5
Type: star:PartsLocatorType
Containing Schema: PartsLocator.xsd
Abstract
Documentation:
PartsLocator defines the Part Locator process for individual dealers who use either OEM or third party part locator services to locate parts at nearby local dealerships. For each Parts Locator represented in the Data Area of the PartsLocator BOD, there must be one occurrence of the PartsLocator component.

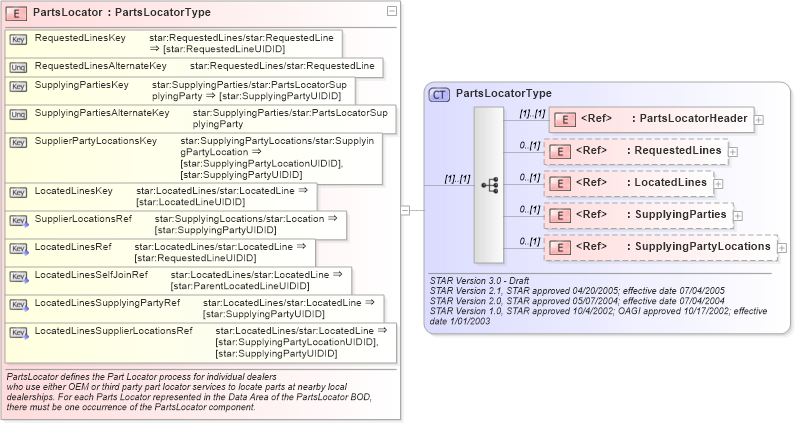

Collapse XSD Schema Diagram:
Drilldown into SupplyingPartyLocations in schema partslocator_xsd Drilldown into SupplyingParties in schema partslocator_xsd Drilldown into LocatedLines in schema partslocator_xsd Drilldown into RequestedLines in schema partslocator_xsd Drilldown into PartsLocatorHeader in schema partslocator_xsd Drilldown into PartsLocatorType in schema partslocator_xsdXSD Diagram of PartsLocator in schema partslocator_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="PartsLocator" type="PartsLocatorType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5">
            	PartsLocator defines the Part Locator process for individual dealers
            	who use either OEM or third party part locator services to locate parts at nearby local
            	dealerships. For each Parts Locator represented in the Data Area of the PartsLocator BOD,
            	there must be one occurrence of the PartsLocator component.
            </xsd:documentation>
    </xsd:annotation>
    <xsd:key name="RequestedLinesKey">
        <xsd:selector xpath="star:RequestedLines/star:RequestedLine" />
        <xsd:field xpath="star:RequestedLineUIDID" />
    </xsd:key>
    <xsd:unique name="RequestedLinesAlternateKey">
        <xsd:selector xpath="star:RequestedLines/star:RequestedLine" />
        <xsd:field xpath="star:LineNumber" />
    </xsd:unique>
    <xsd:key name="SupplyingPartiesKey">
        <xsd:selector xpath="star:SupplyingParties/star:PartsLocatorSupplyingParty" />
        <xsd:field xpath="star:SupplyingPartyUIDID" />
    </xsd:key>
    <xsd:unique name="SupplyingPartiesAlternateKey">
        <xsd:selector xpath="star:SupplyingParties/star:PartsLocatorSupplyingParty" />
        <xsd:field xpath="star:PartyId" />
    </xsd:unique>
    <xsd:key name="SupplierPartyLocationsKey">
        <xsd:selector xpath="star:SupplyingPartyLocations/star:SupplyingPartyLocation" />
        <xsd:field xpath="star:SupplyingPartyLocationUIDID" />
        <xsd:field xpath="star:SupplyingPartyUIDID" />
    </xsd:key>
    <xsd:key name="LocatedLinesKey">
        <xsd:selector xpath="star:LocatedLines/star:LocatedLine" />
        <xsd:field xpath="star:LocatedLineUIDID" />
    </xsd:key>
    <xsd:keyref name="SupplierLocationsRef" refer="SupplyingPartiesKey">
        <xsd:selector xpath="star:SupplyingLocations/star:Location" />
        <xsd:field xpath="star:SupplyingPartyUIDID" />
    </xsd:keyref>
    <xsd:keyref name="LocatedLinesRef" refer="RequestedLinesKey">
        <xsd:selector xpath="star:LocatedLines/star:LocatedLine" />
        <xsd:field xpath="star:RequestedLineUIDID" />
    </xsd:keyref>
    <xsd:keyref name="LocatedLinesSelfJoinRef" refer="LocatedLinesKey">
        <xsd:selector xpath="star:LocatedLines/star:LocatedLine" />
        <xsd:field xpath="star:ParentLocatedLineUIDID" />
    </xsd:keyref>
    <xsd:keyref name="LocatedLinesSupplyingPartyRef" refer="SupplyingPartiesKey">
        <xsd:selector xpath="star:LocatedLines/star:LocatedLine" />
        <xsd:field xpath="star:SupplyingPartyUIDID" />
    </xsd:keyref>
    <xsd:keyref name="LocatedLinesSupplierLocationsRef" refer="SupplierPartyLocationsKey">
        <xsd:selector xpath="star:LocatedLines/star:LocatedLine" />
        <xsd:field xpath="star:SupplyingPartyLocationUIDID" />
        <xsd:field xpath="star:SupplyingPartyUIDID" />
    </xsd:keyref>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PartsLocatorHeader star:PartsLocatorHeader (1) (1)
RequestedLines star:RequestedLines 0 (1)
LocatedLines star:LocatedLines 0 (1)
SupplyingParties star:SupplyingParties 0 (1)
SupplyingPartyLocations star:SupplyingPartyLocations 0 (1)
Collapse Derivation Tree:
