Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: PartSupplyStatusCode
Namespace: http://www.starstandard.org/STAR/5
Type: udt:CodeType
Containing Schema: Components.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
Communicates the current supply status of the part providing better visibility on the availability and lead time for procurement. Example values: 'Non service part' 'No import part' 'Not stocked in the USA' 'Manufacture discontinued'.

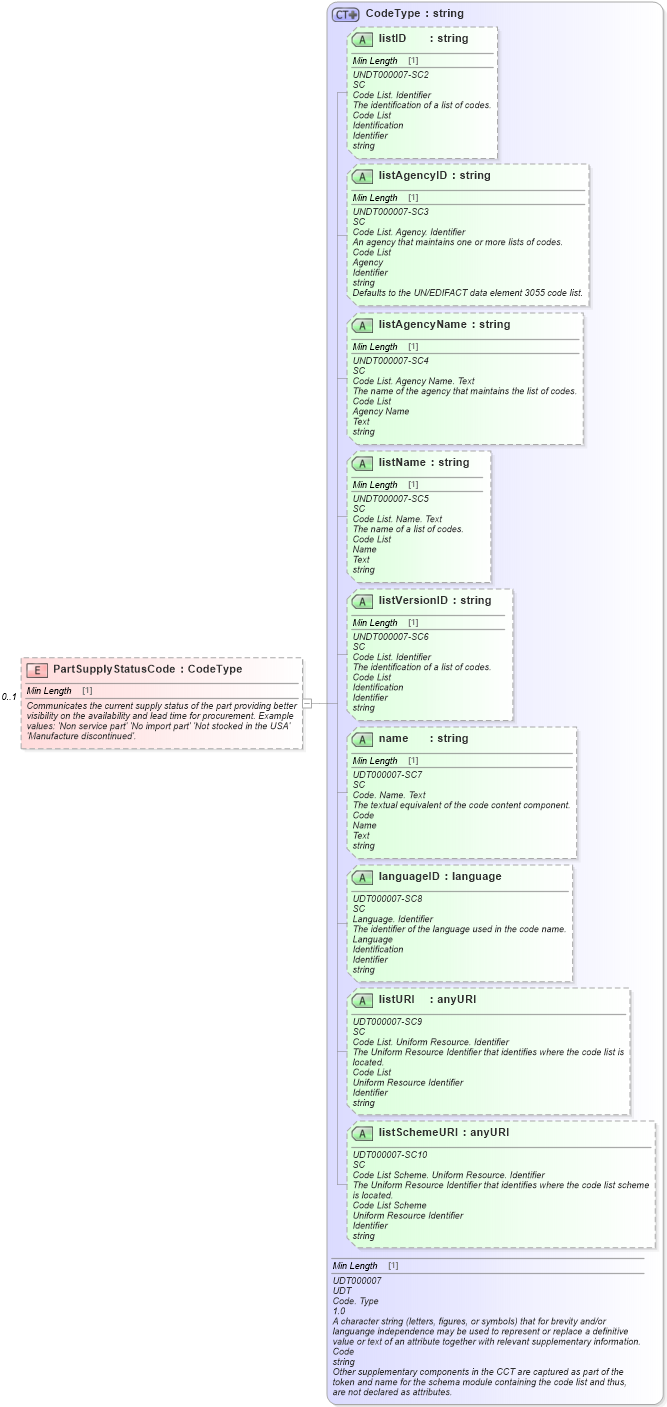

Collapse XSD Schema Diagram:
Drilldown into listSchemeURI in schema unqualifieddatatypes_xsd Drilldown into listURI in schema unqualifieddatatypes_xsd Drilldown into languageID in schema unqualifieddatatypes_xsd Drilldown into name in schema unqualifieddatatypes_xsd Drilldown into listVersionID in schema unqualifieddatatypes_xsd Drilldown into listName in schema unqualifieddatatypes_xsd Drilldown into listAgencyName in schema unqualifieddatatypes_xsd Drilldown into listAgencyID in schema unqualifieddatatypes_xsd Drilldown into listID in schema unqualifieddatatypes_xsd Drilldown into CodeType in schema unqualifieddatatypes_xsdXSD Diagram of PartSupplyStatusCode in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element minOccurs="0" maxOccurs="1" name="PartSupplyStatusCode" type="udt:CodeType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5">Communicates the current supply status of the part providing better visibility on the availability and lead time for procurement. Example values: 'Non service part' 'No import part' 'Not stocked in the USA' 'Manufacture discontinued'.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
listID udt:listID Optional
listAgencyID udt:listAgencyID Optional
listAgencyName udt:listAgencyName Optional
listName udt:listName Optional
listVersionID udt:listVersionID Optional
name udt:name Optional
languageID udt:languageID Optional
listURI udt:listURI Optional
listSchemeURI udt:listSchemeURI Optional
Collapse Derivation Tree:
