Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: RemarketingOptionType
Namespace: http://www.starstandard.org/STAR/5
Type: star:OptionBaseType
Containing Schema: Components.xsd
Abstract
Collapse XSD Schema Diagram:

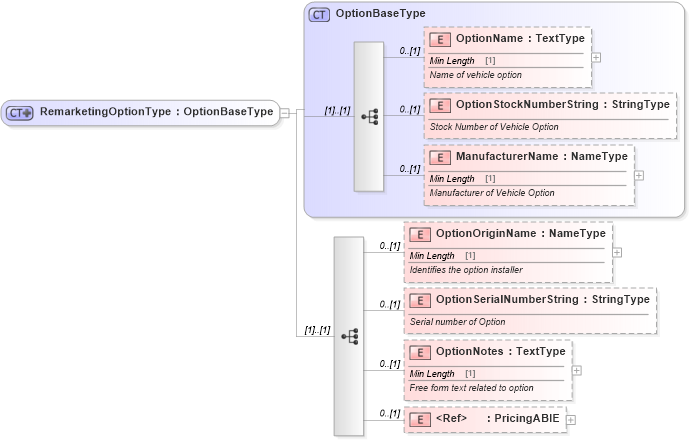

Drilldown into PricingABIE in schema components_xsd Drilldown into OptionNotes in schema components_xsd Drilldown into OptionSerialNumberString in schema components_xsd Drilldown into OptionOriginName in schema components_xsd Drilldown into ManufacturerName in schema components_xsd Drilldown into OptionStockNumberString in schema components_xsd Drilldown into OptionName in schema components_xsd Drilldown into OptionBaseType in schema components_xsdXSD Diagram of RemarketingOptionType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="RemarketingOptionType">
    <xsd:complexContent>
        <xsd:extension base="OptionBaseType">
            <xsd:sequence>
                <xsd:element minOccurs="0" name="OptionOriginName" type="udt:NameType">
                    <xsd:annotation>
                        <xsd:documentation>Identifies the option installer</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="OptionSerialNumberString" type="qdt:StringType">
                    <xsd:annotation>
                        <xsd:documentation>Serial number of Option</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="OptionNotes" type="udt:TextType">
                    <xsd:annotation>
                        <xsd:documentation>Free form text related to option</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" ref="PricingABIE">
                    <xsd:annotation>
                        <xsd:documentation>Option pricing information.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OptionName star:OptionName 0 (1)
OptionStockNumberString star:OptionStockNumberString 0 (1)
ManufacturerName star:ManufacturerName 0 (1)
OptionOriginName star:OptionOriginName 0 (1)
OptionSerialNumberString star:OptionSerialNumberString 0 (1)
OptionNotes star:OptionNotes 0 (1)
PricingABIE star:PricingABIE 0 (1)
Collapse Derivation Tree:
