Definition Type: ComplexType
Name: RepairOrderReconciliationType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract
Collapse XSD Schema Diagram:

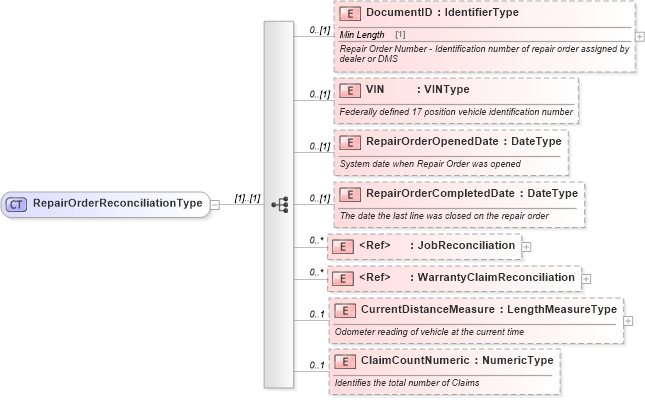

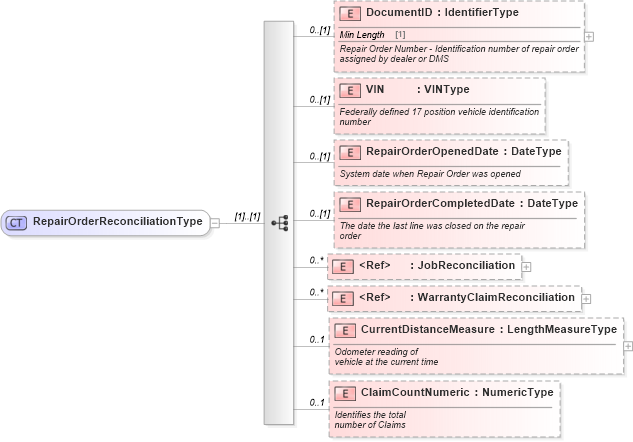

Drilldown into ClaimCountNumeric in schema components_xsd Drilldown into CurrentDistanceMeasure in schema components_xsd Drilldown into WarrantyClaimReconciliation in schema components_xsd Drilldown into JobReconciliation in schema components_xsd Drilldown into RepairOrderCompletedDate in schema components_xsd Drilldown into RepairOrderOpenedDate in schema components_xsd Drilldown into VIN in schema components_xsd Drilldown into DocumentID in schema components_xsdXSD Diagram of RepairOrderReconciliationType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="RepairOrderReconciliationType">
    <xsd:sequence>
        <xsd:element minOccurs="0" name="DocumentID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation>Repair Order Number - Identification number of repair order assigned by dealer or DMS</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="VIN" type="sqdt:VINType">
            <xsd:annotation>
                <xsd:documentation>Federally defined 17 position vehicle identification number</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="RepairOrderOpenedDate" type="udt:DateType">
            <xsd:annotation>
                <xsd:documentation>System date when Repair Order was opened</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="RepairOrderCompletedDate" type="udt:DateType">
            <xsd:annotation>
                <xsd:documentation>The date the last line was closed on the repair order</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="JobReconciliation">
            <xsd:annotation>
                <xsd:documentation>Job information associated with a Repair Order</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="WarrantyClaimReconciliation">
            <xsd:annotation>
                <xsd:documentation>Warranty Claim information associated with a Repair Order</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="CurrentDistanceMeasure" type="sqdt:LengthMeasureType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Odometer reading of vehicle at the current time</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="ClaimCountNumeric" type="udt:NumericType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Identifies the total number of Claims</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID star:DocumentID 0 (1)
VIN star:VIN 0 (1)
RepairOrderOpenedDate star:RepairOrderOpenedDate 0 (1)
RepairOrderCompletedDate star:RepairOrderCompletedDate 0 (1)
JobReconciliation star:JobReconciliation 0 unbounded
WarrantyClaimReconciliation star:WarrantyClaimReconciliation 0 unbounded
CurrentDistanceMeasure star:CurrentDistanceMeasure 0 1
ClaimCountNumeric star:ClaimCountNumeric 0 1
Collapse Derivation Tree:
Collapse References:
star:RepairOrderReconciliation
