Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: SalesActivityBaseType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract

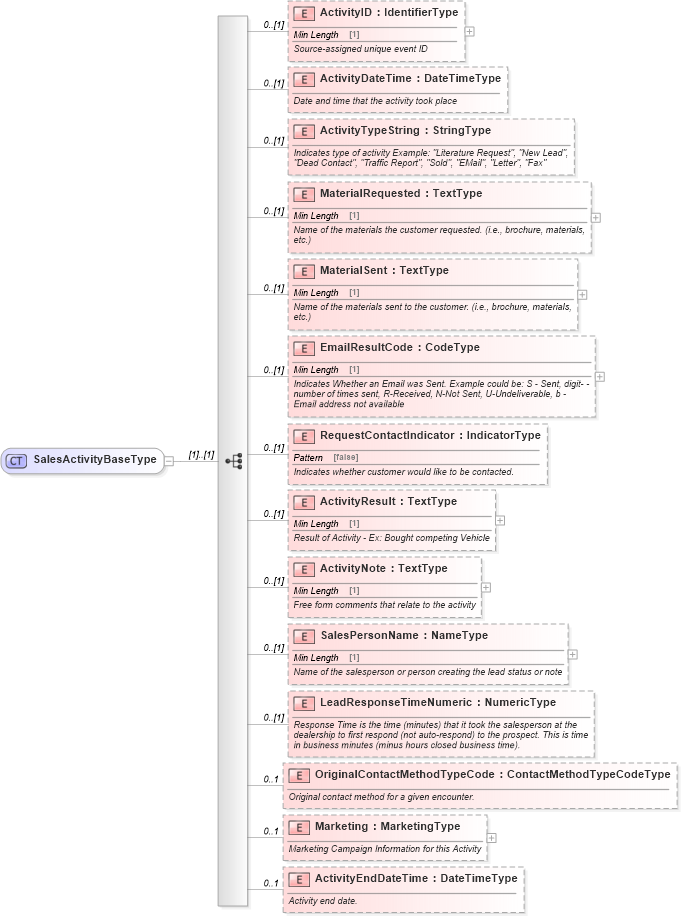

Collapse XSD Schema Diagram:
Drilldown into ActivityEndDateTime in schema components_xsd Drilldown into Marketing in schema components_xsd Drilldown into OriginalContactMethodTypeCode in schema components_xsd Drilldown into LeadResponseTimeNumeric in schema components_xsd Drilldown into SalesPersonName in schema components_xsd Drilldown into ActivityNote in schema components_xsd Drilldown into ActivityResult in schema components_xsd Drilldown into RequestContactIndicator in schema components_xsd Drilldown into EmailResultCode in schema components_xsd Drilldown into MaterialSent in schema components_xsd Drilldown into MaterialRequested in schema components_xsd Drilldown into ActivityTypeString in schema components_xsd Drilldown into ActivityDateTime in schema components_xsd Drilldown into ActivityID in schema components_xsdXSD Diagram of SalesActivityBaseType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="SalesActivityBaseType">
    <xsd:sequence>
        <xsd:element minOccurs="0" name="ActivityID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation>Source-assigned unique event ID</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="ActivityDateTime" type="udt:DateTimeType">
            <xsd:annotation>
                <xsd:documentation>Date and time that the activity took place</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="ActivityTypeString" type="qdt:StringType">
            <xsd:annotation>
                <xsd:documentation>Indicates type of activity Example: "Literature Request", "New Lead", "Dead Contact", "Traffic Report", "Sold", "EMail", "Letter", "Fax"</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="MaterialRequested" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>Name of the materials the customer requested. (i.e., brochure, materials, etc.)</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="MaterialSent" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>Name of the materials sent to the customer. (i.e., brochure, materials, etc.)</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="EmailResultCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation>Indicates Whether an Email was Sent. Example could be: S - Sent, digit- - number of times sent, R-Received, N-Not Sent, U-Undeliverable, b - Email address not available</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="RequestContactIndicator" type="udt:IndicatorType">
            <xsd:annotation>
                <xsd:documentation>Indicates whether customer would like to be contacted.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="ActivityResult" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>Result of Activity - Ex: Bought competing Vehicle</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="ActivityNote" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>Free form comments that relate to the activity</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="SalesPersonName" type="udt:NameType">
            <xsd:annotation>
                <xsd:documentation>Name of the salesperson or person creating the lead status or note</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="LeadResponseTimeNumeric" type="udt:NumericType">
            <xsd:annotation>
                <xsd:documentation>Response Time is the time (minutes) that it took the salesperson at the dealership to first respond (not auto-respond) to the prospect. This is time in business minutes (minus hours closed business time).</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="OriginalContactMethodTypeCode" type="sqdt:ContactMethodTypeCodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Original contact method for a given encounter.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="Marketing" type="MarketingType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Marketing Campaign Information for this Activity</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ActivityEndDateTime" minOccurs="0" maxOccurs="1" type="udt:DateTimeType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Activity end date.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ActivityID star:ActivityID 0 (1)
ActivityDateTime star:ActivityDateTime 0 (1)
ActivityTypeString star:ActivityTypeString 0 (1)
MaterialRequested star:MaterialRequested 0 (1)
MaterialSent star:MaterialSent 0 (1)
EmailResultCode star:EmailResultCode 0 (1)
RequestContactIndicator star:RequestContactIndicator 0 (1)
ActivityResult star:ActivityResult 0 (1)
ActivityNote star:ActivityNote 0 (1)
SalesPersonName star:SalesPersonName 0 (1)
LeadResponseTimeNumeric star:LeadResponseTimeNumeric 0 (1)
OriginalContactMethodTypeCode star:OriginalContactMethodTypeCode 0 1
Marketing star:Marketing 0 1
ActivityEndDateTime star:ActivityEndDateTime 0 1
Collapse Derivation Tree:
Collapse References:
star:SalesActivityBasestar:SalesActivityType,
