Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: SalesOrderReference
Namespace: http://www.starstandard.org/STAR/5
Type: star:OrderReferenceOAGIType
Containing Schema: Components.xsd
Abstract
Documentation:
Is a reference to a SalesOrder

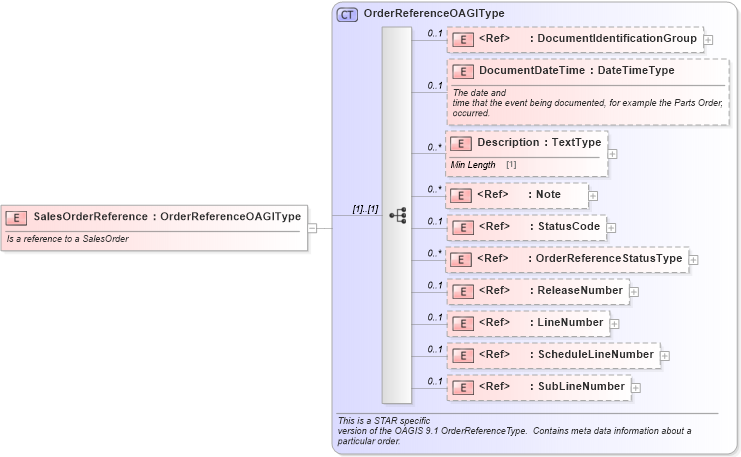

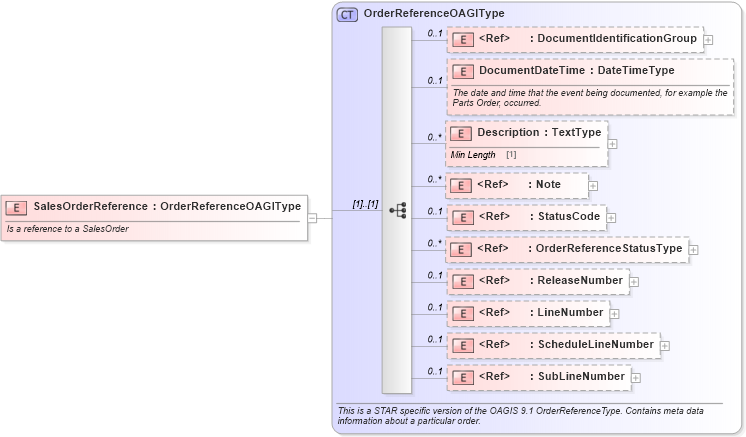

Collapse XSD Schema Diagram:
Drilldown into SubLineNumber in schema fields_xsd1 Drilldown into ScheduleLineNumber in schema fields_xsd1 Drilldown into LineNumber in schema fields_xsd1 Drilldown into ReleaseNumber in schema fields_xsd1 Drilldown into OrderReferenceStatusType in schema components_xsd Drilldown into StatusCode in schema fields_xsd1 Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema components_xsd Drilldown into DocumentDateTime in schema components_xsd Drilldown into DocumentIdentificationGroup in schema components_xsd Drilldown into OrderReferenceOAGIType in schema components_xsdXSD Diagram of SalesOrderReference in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="SalesOrderReference" type="OrderReferenceOAGIType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Is a reference to a SalesOrder</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentIdentificationGroup star:DocumentIdentificationGroup 0 1
DocumentDateTime star:DocumentDateTime 0 1
Description star:Description 0 unbounded
Note oagis:Note 0 unbounded
StatusCode oagis:StatusCode 0 1
OrderReferenceStatusType star:OrderReferenceStatusType 0 unbounded
ReleaseNumber oagis:ReleaseNumber 0 1
LineNumber oagis:LineNumber 0 1
ScheduleLineNumber oagis:ScheduleLineNumber 0 1
SubLineNumber oagis:SubLineNumber 0 1
Collapse Derivation Tree:
