Definition Type: ComplexType
Name: SenderBaseType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Meta.xsd
Abstract
Documentation:
Identifies the sender of the given BOD instance

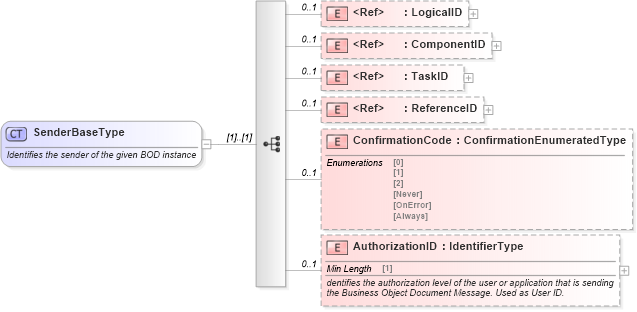

Collapse XSD Schema Diagram:
Drilldown into AuthorizationID in schema meta_xsd Drilldown into ConfirmationCode in schema meta_xsd Drilldown into ReferenceID in schema meta_xsd Drilldown into TaskID in schema meta_xsd Drilldown into ComponentID in schema meta_xsd Drilldown into LogicalID in schema meta_xsdXSD Diagram of SenderBaseType in schema meta_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="SenderBaseType">
    <xsd:annotation>
        <xsd:documentation>Identifies the sender of the given BOD instance</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element maxOccurs="1" minOccurs="0" ref="LogicalID">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org">This is the logical location of the server and application from which the Business Object Document originated.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" ref="ComponentID">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org">DCS software code name.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" ref="TaskID">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org">This describes the business event that initiated the need for the Business Object Document to be created.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" ref="ReferenceID">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org">Enables the sending application to indicate the instance identifier of the event or task that caused the BOD to be created.�  This is used to correlate a response BOD to an originating BOD. *The Sender of the originating application will populate the Reference Id with business level information. *Reference ID does not have to be a GUID. It must be a locally unique application value for the transaction type, for example a database sequence number. *The receiving application puts the value in Reference ID of the incoming message in the Reference ID of any acknowledgement messages. *The Reference Id will not be required to tie two collaborations together such as Parts Order and Parts Shipment.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="ConfirmationCode" type="scl:ConfirmationEnumeratedType">
            <xsd:annotation>
                <xsd:documentation />
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="AuthorizationID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org">dentifies the authorization level of the user or application that is sending the Business Object Document Message. Used as User ID.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LogicalID star:LogicalID 0 1
ComponentID star:ComponentID 0 1
TaskID star:TaskID 0 1
ReferenceID star:ReferenceID 0 1
ConfirmationCode star:ConfirmationCode 0 1
AuthorizationID star:AuthorizationID 0 1
Collapse Derivation Tree:
Collapse References:
star:SenderBasestar:SenderType,
