Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: ServiceCampaignExtendedType
Namespace: http://www.starstandard.org/STAR/5
Type: star:ServiceCampaignType
Containing Schema: Components.xsd
Abstract

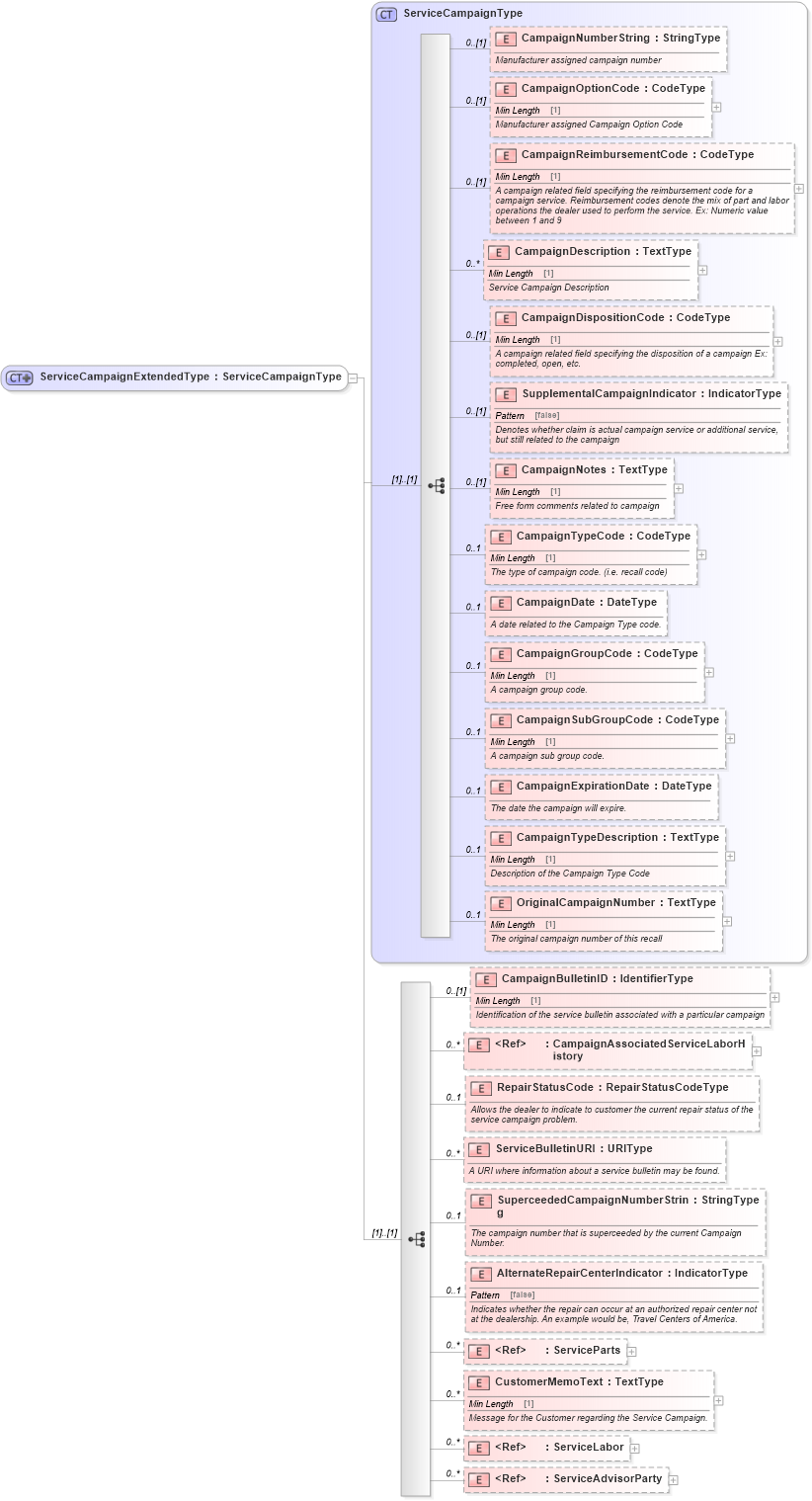

Collapse XSD Schema Diagram:
Drilldown into ServiceAdvisorParty in schema components_xsd Drilldown into ServiceLabor in schema components_xsd Drilldown into CustomerMemoText in schema components_xsd Drilldown into ServiceParts in schema components_xsd Drilldown into AlternateRepairCenterIndicator in schema components_xsd Drilldown into SuperceededCampaignNumberString in schema components_xsd Drilldown into ServiceBulletinURI in schema components_xsd Drilldown into RepairStatusCode in schema components_xsd Drilldown into CampaignAssociatedServiceLaborHistory in schema components_xsd Drilldown into CampaignBulletinID in schema components_xsd Drilldown into OriginalCampaignNumber in schema components_xsd Drilldown into CampaignTypeDescription in schema components_xsd Drilldown into CampaignExpirationDate in schema components_xsd Drilldown into CampaignSubGroupCode in schema components_xsd Drilldown into CampaignGroupCode in schema components_xsd Drilldown into CampaignDate in schema components_xsd Drilldown into CampaignTypeCode in schema components_xsd Drilldown into CampaignNotes in schema components_xsd Drilldown into SupplementalCampaignIndicator in schema components_xsd Drilldown into CampaignDispositionCode in schema components_xsd Drilldown into CampaignDescription in schema components_xsd Drilldown into CampaignReimbursementCode in schema components_xsd Drilldown into CampaignOptionCode in schema components_xsd Drilldown into CampaignNumberString in schema components_xsd Drilldown into ServiceCampaignType in schema components_xsdXSD Diagram of ServiceCampaignExtendedType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="ServiceCampaignExtendedType">
    <xsd:complexContent>
        <xsd:extension base="ServiceCampaignType">
            <xsd:sequence>
                <xsd:element minOccurs="0" name="CampaignBulletinID" type="udt:IdentifierType">
                    <xsd:annotation>
                        <xsd:documentation>Identification of the service bulletin associated with a particular campaign</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="unbounded" minOccurs="0" ref="CampaignAssociatedServiceLaborHistory" />
                <xsd:element maxOccurs="1" minOccurs="0" name="RepairStatusCode" type="sqdt:RepairStatusCodeType">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Allows the dealer to indicate to customer the current repair status of the service campaign problem.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="unbounded" minOccurs="0" name="ServiceBulletinURI" type="qdt:URIType">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">A URI where information about a service bulletin may be found.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="1" minOccurs="0" name="SuperceededCampaignNumberString" type="qdt:StringType">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">The campaign number that is superceeded by the current Campaign Number.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="1" minOccurs="0" name="AlternateRepairCenterIndicator" type="udt:IndicatorType">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates whether the repair can occur at an authorized repair center not at the dealership. An example would be, Travel Centers of America.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" maxOccurs="unbounded" ref="ServiceParts">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Provides the parts that were used or associated with this Service Campaign.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="CustomerMemoText" type="udt:TextType" minOccurs="0" maxOccurs="unbounded">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Message for the Customer regarding the Service Campaign.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" maxOccurs="unbounded" ref="ServiceLabor" />
                <xsd:element minOccurs="0" maxOccurs="unbounded" ref="ServiceAdvisorParty" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CampaignNumberString star:CampaignNumberString 0 (1)
CampaignOptionCode star:CampaignOptionCode 0 (1)
CampaignReimbursementCode star:CampaignReimbursementCode 0 (1)
CampaignDescription star:CampaignDescription 0 unbounded
CampaignDispositionCode star:CampaignDispositionCode 0 (1)
SupplementalCampaignIndicator star:SupplementalCampaignIndicator 0 (1)
CampaignNotes star:CampaignNotes 0 (1)
CampaignTypeCode star:CampaignTypeCode 0 1
CampaignDate star:CampaignDate 0 1
CampaignGroupCode star:CampaignGroupCode 0 1
CampaignSubGroupCode star:CampaignSubGroupCode 0 1
CampaignExpirationDate star:CampaignExpirationDate 0 1
CampaignTypeDescription star:CampaignTypeDescription 0 1
OriginalCampaignNumber star:OriginalCampaignNumber 0 1
CampaignBulletinID star:CampaignBulletinID 0 (1)
CampaignAssociatedServiceLaborHistory star:CampaignAssociatedServiceLaborHistory 0 unbounded
RepairStatusCode star:RepairStatusCode 0 1
ServiceBulletinURI star:ServiceBulletinURI 0 unbounded
SuperceededCampaignNumberString star:SuperceededCampaignNumberString 0 1
AlternateRepairCenterIndicator star:AlternateRepairCenterIndicator 0 1
ServiceParts star:ServiceParts 0 unbounded
CustomerMemoText star:CustomerMemoText 0 unbounded
ServiceLabor star:ServiceLabor 0 unbounded
ServiceAdvisorParty star:ServiceAdvisorParty 0 unbounded
Collapse Derivation Tree:
Collapse References:
star:ServiceCampaign, star:ServiceCampaignExtended
