Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: ServiceLaborType
Namespace: http://www.starstandard.org/STAR/5
Type: star:ServiceLaborBaseType
Containing Schema: Components.xsd
Abstract

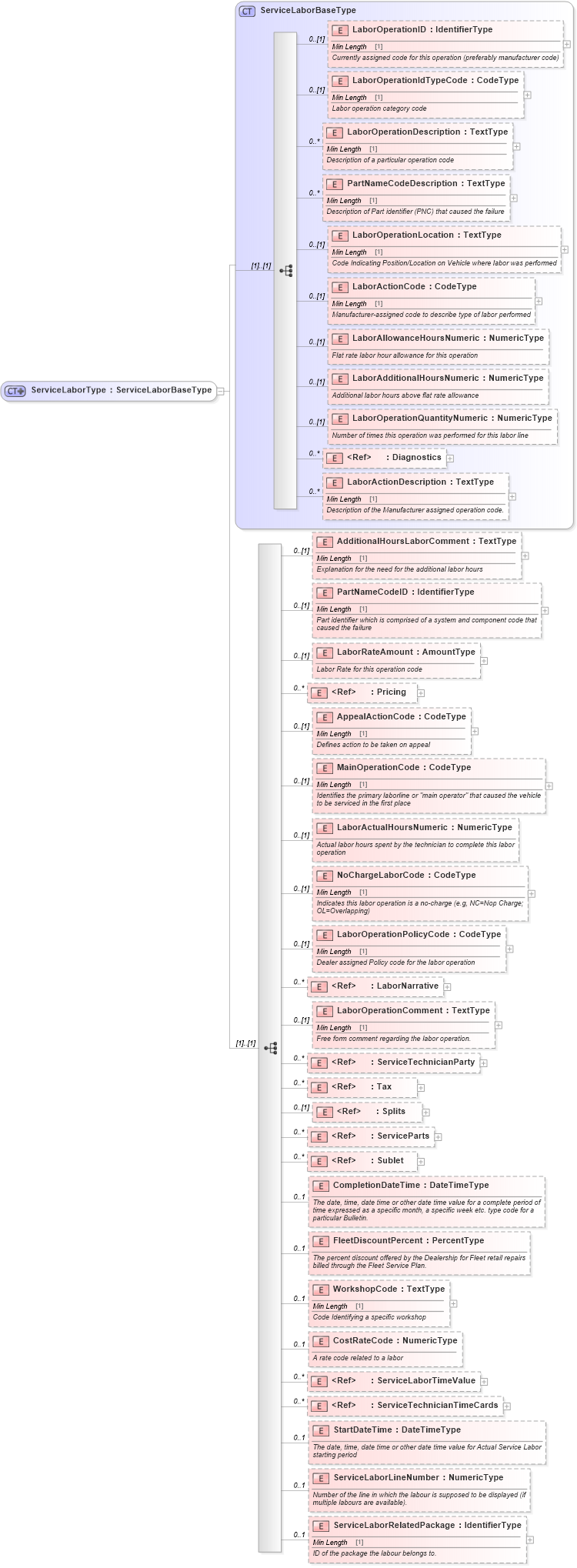

Collapse XSD Schema Diagram:
Drilldown into ServiceLaborRelatedPackage in schema components_xsd Drilldown into ServiceLaborLineNumber in schema components_xsd Drilldown into StartDateTime in schema components_xsd Drilldown into ServiceTechnicianTimeCards in schema components_xsd Drilldown into ServiceLaborTimeValue in schema components_xsd Drilldown into CostRateCode in schema components_xsd Drilldown into WorkshopCode in schema components_xsd Drilldown into FleetDiscountPercent in schema components_xsd Drilldown into CompletionDateTime in schema components_xsd Drilldown into Sublet in schema components_xsd Drilldown into ServiceParts in schema components_xsd Drilldown into Splits in schema components_xsd Drilldown into Tax in schema components_xsd Drilldown into ServiceTechnicianParty in schema components_xsd Drilldown into LaborOperationComment in schema components_xsd Drilldown into LaborNarrative in schema components_xsd Drilldown into LaborOperationPolicyCode in schema components_xsd Drilldown into NoChargeLaborCode in schema components_xsd Drilldown into LaborActualHoursNumeric in schema components_xsd Drilldown into MainOperationCode in schema components_xsd Drilldown into AppealActionCode in schema components_xsd Drilldown into Pricing in schema components_xsd Drilldown into LaborRateAmount in schema components_xsd Drilldown into PartNameCodeID in schema components_xsd Drilldown into AdditionalHoursLaborComment in schema components_xsd Drilldown into LaborActionDescription in schema components_xsd Drilldown into Diagnostics in schema components_xsd Drilldown into LaborOperationQuantityNumeric in schema components_xsd Drilldown into LaborAdditionalHoursNumeric in schema components_xsd Drilldown into LaborAllowanceHoursNumeric in schema components_xsd Drilldown into LaborActionCode in schema components_xsd Drilldown into LaborOperationLocation in schema components_xsd Drilldown into PartNameCodeDescription in schema components_xsd Drilldown into LaborOperationDescription in schema components_xsd Drilldown into LaborOperationIdTypeCode in schema components_xsd Drilldown into LaborOperationID in schema components_xsd Drilldown into ServiceLaborBaseType in schema components_xsdXSD Diagram of ServiceLaborType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="ServiceLaborType">
    <xsd:complexContent>
        <xsd:extension base="ServiceLaborBaseType">
            <xsd:sequence>
                <xsd:element minOccurs="0" name="AdditionalHoursLaborComment" type="udt:TextType">
                    <xsd:annotation>
                        <xsd:documentation>Explanation for the need for the additional labor hours</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="PartNameCodeID" type="udt:IdentifierType">
                    <xsd:annotation>
                        <xsd:documentation>Part identifier which is comprised of a system and component code that caused the failure</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="LaborRateAmount" type="udt:AmountType">
                    <xsd:annotation>
                        <xsd:documentation>Labor Rate for this operation code</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Pricing">
                    <xsd:annotation>
                        <xsd:documentation>Labor Price for labor operation code</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="AppealActionCode" type="udt:CodeType">
                    <xsd:annotation>
                        <xsd:documentation>Defines action to be taken on appeal</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="MainOperationCode" type="udt:CodeType">
                    <xsd:annotation>
                        <xsd:documentation>Identifies the primary laborline or "main operator" that caused the vehicle to be serviced in the first place</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="LaborActualHoursNumeric" type="udt:NumericType">
                    <xsd:annotation>
                        <xsd:documentation>Actual labor hours spent by the technician to complete this labor operation</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="NoChargeLaborCode" type="udt:CodeType">
                    <xsd:annotation>
                        <xsd:documentation>Indicates this labor operation is a no-charge (e.g, NC=Nop Charge; OL=Overlapping)</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="LaborOperationPolicyCode" type="udt:CodeType">
                    <xsd:annotation>
                        <xsd:documentation>Dealer assigned Policy code for the labor operation</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="unbounded" minOccurs="0" ref="LaborNarrative">
                    <xsd:annotation>
                        <xsd:documentation>Labor Narrative related to Labor</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="LaborOperationComment" type="udt:TextType">
                    <xsd:annotation>
                        <xsd:documentation>Free form comment regarding the labor operation.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="unbounded" minOccurs="0" ref="ServiceTechnicianParty">
                    <xsd:annotation>
                        <xsd:documentation>Technicians related to labor operation</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Tax">
                    <xsd:annotation>
                        <xsd:documentation>Actual amount of tax paid on parts</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" ref="Splits">
                    <xsd:annotation>
                        <xsd:documentation>Part Adjustment</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="unbounded" minOccurs="0" ref="ServiceParts">
                    <xsd:annotation>
                        <xsd:documentation>Parts related to labor operation</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Sublet">
                    <xsd:annotation>
                        <xsd:documentation>Sublet related to labor operation</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="1" minOccurs="0" name="CompletionDateTime" type="udt:DateTimeType">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">The date, time, date time or other date time value for a complete period of time expressed as a specific month, a specific week etc. type code for a particular Bulletin.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="FleetDiscountPercent" type="udt:PercentType" minOccurs="0" maxOccurs="1">
                    <xsd:annotation>
                        <xsd:documentation>The percent discount offered by the Dealership for Fleet retail repairs billed through the Fleet Service Plan.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" maxOccurs="1" name="WorkshopCode" type="udt:TextType">
                    <xsd:annotation>
                        <xsd:documentation>Code Identifying a specific workshop</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" maxOccurs="1" name="CostRateCode" type="udt:NumericType">
                    <xsd:annotation>
                        <xsd:documentation>A rate code related to a labor</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="unbounded" minOccurs="0" ref="ServiceLaborTimeValue" />
                <xsd:element maxOccurs="unbounded" minOccurs="0" ref="ServiceTechnicianTimeCards" />
                <xsd:element minOccurs="0" maxOccurs="1" name="StartDateTime" type="udt:DateTimeType">
                    <xsd:annotation>
                        <xsd:documentation>The date, time, date time or other date time value for Actual Service Labor starting period</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" maxOccurs="1" name="ServiceLaborLineNumber" type="udt:NumericType">
                    <xsd:annotation>
                        <xsd:documentation>
                                Number of the line in which the labour is supposed to be displayed (if multiple labours are available).
                            </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" maxOccurs="1" name="ServiceLaborRelatedPackage" type="udt:IdentifierType">
                    <xsd:annotation>
                        <xsd:documentation>
                                ID of the package the labour belongs to.
                            </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LaborOperationID star:LaborOperationID 0 (1)
LaborOperationIdTypeCode star:LaborOperationIdTypeCode 0 (1)
LaborOperationDescription star:LaborOperationDescription 0 unbounded
PartNameCodeDescription star:PartNameCodeDescription 0 unbounded
LaborOperationLocation star:LaborOperationLocation 0 (1)
LaborActionCode star:LaborActionCode 0 (1)
LaborAllowanceHoursNumeric star:LaborAllowanceHoursNumeric 0 (1)
LaborAdditionalHoursNumeric star:LaborAdditionalHoursNumeric 0 (1)
LaborOperationQuantityNumeric star:LaborOperationQuantityNumeric 0 (1)
Diagnostics star:Diagnostics 0 unbounded
LaborActionDescription star:LaborActionDescription 0 unbounded
AdditionalHoursLaborComment star:AdditionalHoursLaborComment 0 (1)
PartNameCodeID star:PartNameCodeID 0 (1)
LaborRateAmount star:LaborRateAmount 0 (1)
Pricing star:Pricing 0 unbounded
AppealActionCode star:AppealActionCode 0 (1)
MainOperationCode star:MainOperationCode 0 (1)
LaborActualHoursNumeric star:LaborActualHoursNumeric 0 (1)
NoChargeLaborCode star:NoChargeLaborCode 0 (1)
LaborOperationPolicyCode star:LaborOperationPolicyCode 0 (1)
LaborNarrative star:LaborNarrative 0 unbounded
LaborOperationComment star:LaborOperationComment 0 (1)
ServiceTechnicianParty star:ServiceTechnicianParty 0 unbounded
Tax star:Tax 0 unbounded
Splits star:Splits 0 (1)
ServiceParts star:ServiceParts 0 unbounded
Sublet star:Sublet 0 unbounded
CompletionDateTime star:CompletionDateTime 0 1
FleetDiscountPercent star:FleetDiscountPercent 0 1
WorkshopCode star:WorkshopCode 0 1
CostRateCode star:CostRateCode 0 1
ServiceLaborTimeValue star:ServiceLaborTimeValue 0 unbounded
ServiceTechnicianTimeCards star:ServiceTechnicianTimeCards 0 unbounded
StartDateTime star:StartDateTime 0 1
ServiceLaborLineNumber star:ServiceLaborLineNumber 0 1
ServiceLaborRelatedPackage star:ServiceLaborRelatedPackage 0 1
Collapse Derivation Tree:
Collapse References:
star:ServiceLabor
