<xsd:complexType name="ShipmentCarrierDetailType">
<xsd:annotation>
<xsd:documentation>Fleet account information associated with a vehicle.</xsd:documentation>
</xsd:annotation>
<xsd:sequence>
<xsd:element maxOccurs="1" minOccurs="0" name="ShipmentCarrierCompanyCode" type="sqdt:ShipmentCarrierCompanyCodeType">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Preferred carrier for delivery of a part.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element maxOccurs="1" minOccurs="0" name="ShipmentCarrierServiceLevelCode" type="sqdt:ShipmentCarrierServiceLevelCodeType">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates the priority of service to be provided by the Shipment Carrier.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element maxOccurs="1" minOccurs="0" name="ShipmentCarrierTransportMethodTypeCode" type="sqdt:ShipmentCarrierTransportMethodTypeCodeType">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Defines the method by which a shipment carrier transports an item (i.e., air, ground, etc.)</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element maxOccurs="1" minOccurs="0" name="ShipmentCarrierDeliveryCode" type="sqdt:ShipmentCarrierDeliveryCodeType">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5" />
</xsd:annotation>
</xsd:element>
<xsd:element maxOccurs="unbounded" minOccurs="0" ref="ShipmentTimePeriod" />
<xsd:element maxOccurs="1" minOccurs="0" name="PrimaryShipmentCarrierIndicator" type="udt:IndicatorType">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates if a shipment carrier is to be the primary shipment carrier.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element maxOccurs="1" minOccurs="0" name="OriginatingWarehouse" type="udt:TextType">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates which warehouse or distribution center from which a shipment originates.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element maxOccurs="1" minOccurs="0" name="ShipmentCarrierCollectionMethodCode" type="sqdt:ShipmentCarrierCollectionMethodCodeType">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5" />
</xsd:annotation>
</xsd:element>
<xsd:element maxOccurs="1" minOccurs="0" name="ShipmentCarrierRestrictedByWarehouse" type="udt:TextType">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">The shipment carrier service has been restricted to use from the specified warehouse.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element maxOccurs="1" minOccurs="0" name="ShipmentCarrierUseRestrictedByCountryCode" type="sqdt:CountryCodeType">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates that the use of the shipment carrier company is restricted to a specified country. For example, DHL Canada can only be used for intra Canadian. transfers.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element maxOccurs="1" minOccurs="0" name="ShipmentCarrierRestrictedByProgram" type="udt:TextType">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">The shipment carrier service has been restricted to use with the specified marketing program. For example, you can only use this shipment carrier in this particular marketing program.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element maxOccurs="1" minOccurs="0" name="ShipmentCarrierRestrictedByOrderTypeCode" type="sqdt:OrderTypeCodeType">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates the specified order type by which the service is being restricted. For example, you can use this shipment carrier if you are using stock order type.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element maxOccurs="1" minOccurs="0" name="ShipmentCarrierPurposeComment" type="udt:TextType">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Free form text used to further define the shipment carrier service.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element maxOccurs="1" minOccurs="0" name="PrimaryShipmentCarrierTransportMethodIndicator" type="udt:IndicatorType">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates if a shipment carrier transport method is to be the primary transport method.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element maxOccurs="1" minOccurs="0" ref="ShipmentCarrierContact" />
<xsd:element maxOccurs="1" minOccurs="0" name="OtherShipmentCarrierCompanyCode" type="udt:CodeType">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">The purpose of the OtherShipmentCarrierCompanyCode field is to accommodate Shipment Carrier Codes that are unique to an organization and are not captured in the STAR enumerated ShipmentCarrierCompanyCode list. If a code is unique to an organization, the ShipmentCarrierCompanyCode value "Other" is to be used. The OtherShipmentCarrierCode field is to be populated with the unique code not captured by STAR. It is the responsibility of the organization requiring the unique carrier code to maintain an external code list for all values not captured by STAR. The attributes of the OtherShipmentCarrierCompanyCode field are to be used to indicate the entity providing that external list of values as well as the identification for that external list. Sample Use Case: ShipmentCarrierCompanyCode = "Other" ShipmentCarrierDescription = "Allen Logistics" OtherShipmentCarrierCompanyCode = "ANOG" ---listID = "GM-1234" ---listAgencyName = "GM" ---listName = "ShipmentCarriers"</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element maxOccurs="1" minOccurs="0" name="ShipmentCarrierCompanyCodeDescription" type="udt:TextType">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Textual description of a shipment carrier. This field should b used in correlation with the OtherShipmentCarrierCompanyCode field.</xsd:documentation>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:complexType>
|

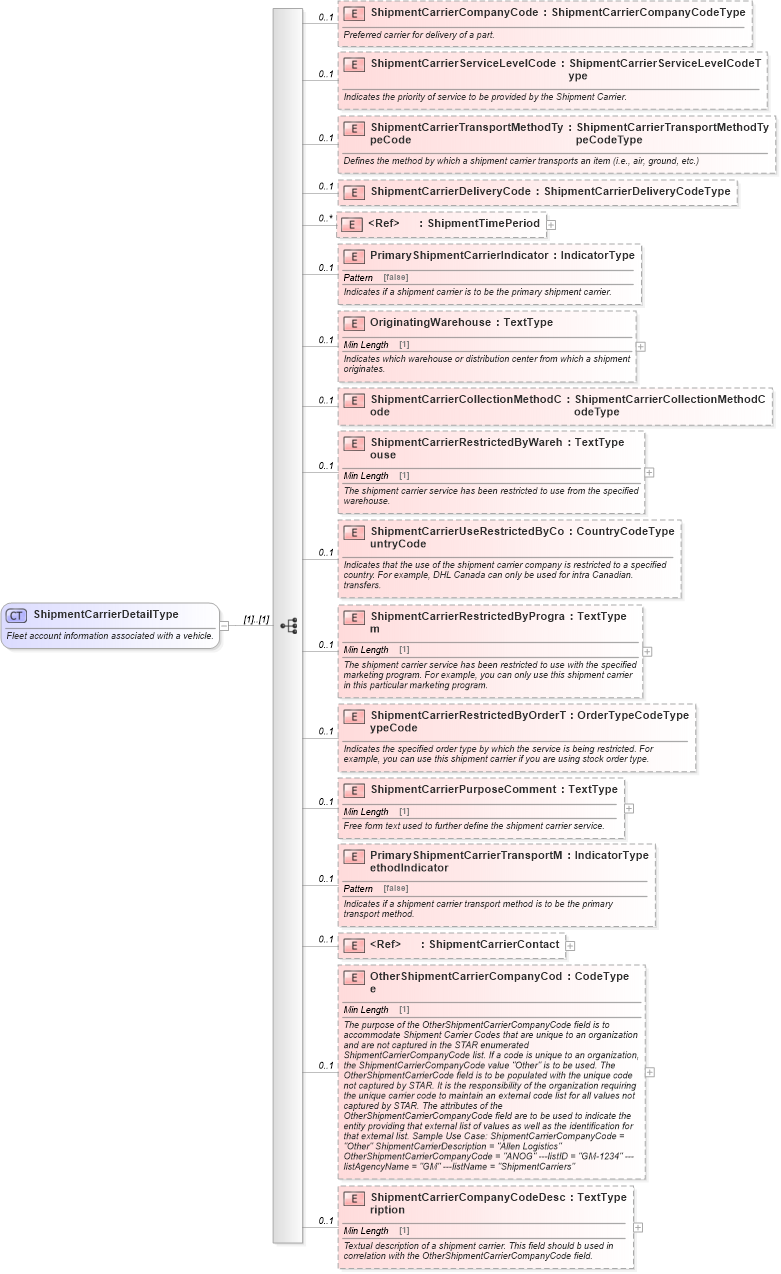

XSD Schema Diagram:
