Docs for schema item SpeedMeasureType in Standards for Technology in Automotive Retail

Documentation for Standards for Technology in Automotive Retail

Definition Type:	ComplexType
Name:	SpeedMeasureType
Namespace:	http://www.starstandard.org/STAR/5/qualifieddatatypes/1.0
Type:	decimal:http://www.w3.org/2001/XMLSchema
Containing Schema:	QualifiedDataTypes.xsd
Abstract
Documentation:	Used to indicate a speed.

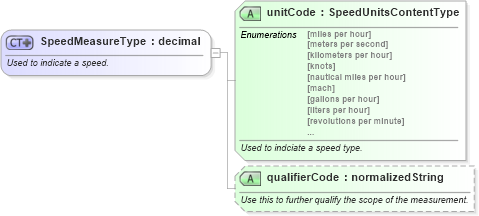

XSD Schema Diagram:

XSD Diagram of SpeedMeasureType in schema qualifieddatatypes_xsd (Standards for Technology in Automotive Retail)

XSD Schema Code:

<xsd:complexType name="SpeedMeasureType">
    <xsd:annotation>
        <xsd:documentation>Used to indicate a speed.</xsd:documentation>
    </xsd:annotation>
    <xsd:simpleContent>
        <xsd:extension base="xsd:decimal">
            <xsd:attribute name="unitCode" type="xfUOMcl:SpeedUnitsContentType" use="required">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">Used to indciate a speed type.</xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="qualifierCode" type="xsd:normalizedString" use="optional">
                <xsd:annotation>
                    <xsd:documentation>Use this to further qualify the scope of the measurement.</xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
        </xsd:extension>
    </xsd:simpleContent>
</xsd:complexType>

Child Attributes:
