Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: SubletType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract

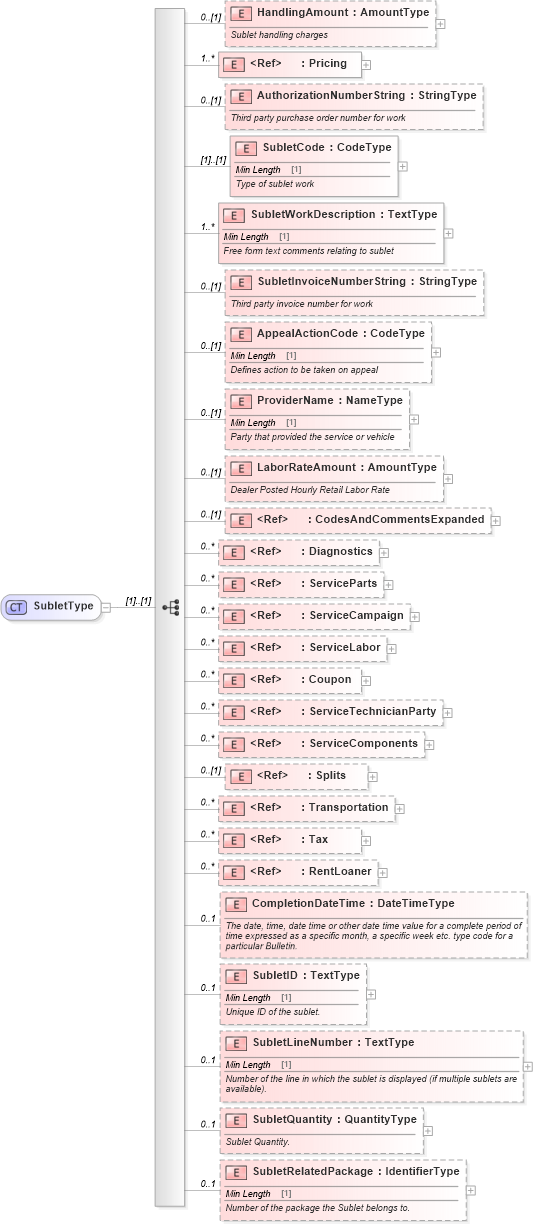

Collapse XSD Schema Diagram:
Drilldown into SubletRelatedPackage in schema components_xsd Drilldown into SubletQuantity in schema components_xsd Drilldown into SubletLineNumber in schema components_xsd Drilldown into SubletID in schema components_xsd Drilldown into CompletionDateTime in schema components_xsd Drilldown into RentLoaner in schema components_xsd Drilldown into Tax in schema components_xsd Drilldown into Transportation in schema components_xsd Drilldown into Splits in schema components_xsd Drilldown into ServiceComponents in schema components_xsd Drilldown into ServiceTechnicianParty in schema components_xsd Drilldown into Coupon in schema components_xsd Drilldown into ServiceLabor in schema components_xsd Drilldown into ServiceCampaign in schema components_xsd Drilldown into ServiceParts in schema components_xsd Drilldown into Diagnostics in schema components_xsd Drilldown into CodesAndCommentsExpanded in schema components_xsd Drilldown into LaborRateAmount in schema components_xsd Drilldown into ProviderName in schema components_xsd Drilldown into AppealActionCode in schema components_xsd Drilldown into SubletInvoiceNumberString in schema components_xsd Drilldown into SubletWorkDescription in schema components_xsd Drilldown into SubletCode in schema components_xsd Drilldown into AuthorizationNumberString in schema components_xsd Drilldown into Pricing in schema components_xsd Drilldown into HandlingAmount in schema components_xsdXSD Diagram of SubletType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="SubletType">
    <xsd:sequence>
        <xsd:element minOccurs="0" name="HandlingAmount" type="udt:AmountType">
            <xsd:annotation>
                <xsd:documentation>Sublet handling charges</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="1" ref="Pricing">
            <xsd:annotation>
                <xsd:documentation>Sublet Invoice Price</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="AuthorizationNumberString" type="qdt:StringType">
            <xsd:annotation>
                <xsd:documentation>Third party purchase order number for work</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="SubletCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation>Type of sublet work</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="1" name="SubletWorkDescription" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>Free form text comments relating to sublet</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="SubletInvoiceNumberString" type="qdt:StringType">
            <xsd:annotation>
                <xsd:documentation>Third party invoice number for work</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="AppealActionCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation>Defines action to be taken on appeal</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="ProviderName" type="udt:NameType">
            <xsd:annotation>
                <xsd:documentation>Party that provided the service or vehicle</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="LaborRateAmount" type="udt:AmountType">
            <xsd:annotation>
                <xsd:documentation>Dealer Posted Hourly Retail Labor Rate</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" ref="CodesAndCommentsExpanded">
            <xsd:annotation>
                <xsd:documentation>Codes and comments related to Sublet</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Diagnostics">
            <xsd:annotation>
                <xsd:documentation>Diagnostics from vehicle service associated with sublet</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="ServiceParts">
            <xsd:annotation>
                <xsd:documentation>Parts used on sublet</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="ServiceCampaign">
            <xsd:annotation>
                <xsd:documentation>Service Campaign (Recall) associated with sublet</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="ServiceLabor">
            <xsd:annotation>
                <xsd:documentation>Labor used on sublet</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Coupon">
            <xsd:annotation>
                <xsd:documentation>Coupn used on sublet</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="ServiceTechnicianParty">
            <xsd:annotation>
                <xsd:documentation>Technician associcated with sublet</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="ServiceComponents">
            <xsd:annotation>
                <xsd:documentation>Service Components associated with sublet(Miscellaneous, GasOilGrease, PaintMaterials, ShopSupplies and Freight</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" ref="Splits">
            <xsd:annotation>
                <xsd:documentation>Splits assoicated with sublet</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Transportation">
            <xsd:annotation>
                <xsd:documentation>Transportation associcated with sublet</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Tax">
            <xsd:annotation>
                <xsd:documentation>Sublet tax price on associated parts and labor</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="RentLoaner">
            <xsd:annotation>
                <xsd:documentation>Rental or Loaner verhicles associated with Repair Order</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="CompletionDateTime" type="udt:DateTimeType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The date, time, date time or other date time value for a complete period of time expressed as a specific month, a specific week etc. type code for a particular Bulletin.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="SubletID" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                        Unique ID of the sublet.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="SubletLineNumber" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                        Number of the line in which the sublet is displayed (if multiple sublets are available).
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="SubletQuantity" type="udt:QuantityType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                        Sublet Quantity.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="SubletRelatedPackage" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                        Number of the package the Sublet belongs to.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
HandlingAmount star:HandlingAmount 0 (1)
Pricing star:Pricing 1 unbounded
AuthorizationNumberString star:AuthorizationNumberString 0 (1)
SubletCode star:SubletCode (1) (1)
SubletWorkDescription star:SubletWorkDescription 1 unbounded
SubletInvoiceNumberString star:SubletInvoiceNumberString 0 (1)
AppealActionCode star:AppealActionCode 0 (1)
ProviderName star:ProviderName 0 (1)
LaborRateAmount star:LaborRateAmount 0 (1)
CodesAndCommentsExpanded star:CodesAndCommentsExpanded 0 (1)
Diagnostics star:Diagnostics 0 unbounded
ServiceParts star:ServiceParts 0 unbounded
ServiceCampaign star:ServiceCampaign 0 unbounded
ServiceLabor star:ServiceLabor 0 unbounded
Coupon star:Coupon 0 unbounded
ServiceTechnicianParty star:ServiceTechnicianParty 0 unbounded
ServiceComponents star:ServiceComponents 0 unbounded
Splits star:Splits 0 (1)
Transportation star:Transportation 0 unbounded
Tax star:Tax 0 unbounded
RentLoaner star:RentLoaner 0 unbounded
CompletionDateTime star:CompletionDateTime 0 1
SubletID star:SubletID 0 1
SubletLineNumber star:SubletLineNumber 0 1
SubletQuantity star:SubletQuantity 0 1
SubletRelatedPackage star:SubletRelatedPackage 0 1
Collapse Derivation Tree:
Collapse References:
star:Sublet
