Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: SupplyingPartyUIDID
Namespace: http://www.starstandard.org/STAR/5
Type: udt:IdentifierType
Containing Schema: PartsLocator.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
This field identifies the supplying party for the located line and must be equal to one of the SupplyingParties.Party.SupplyingPartyUID values.

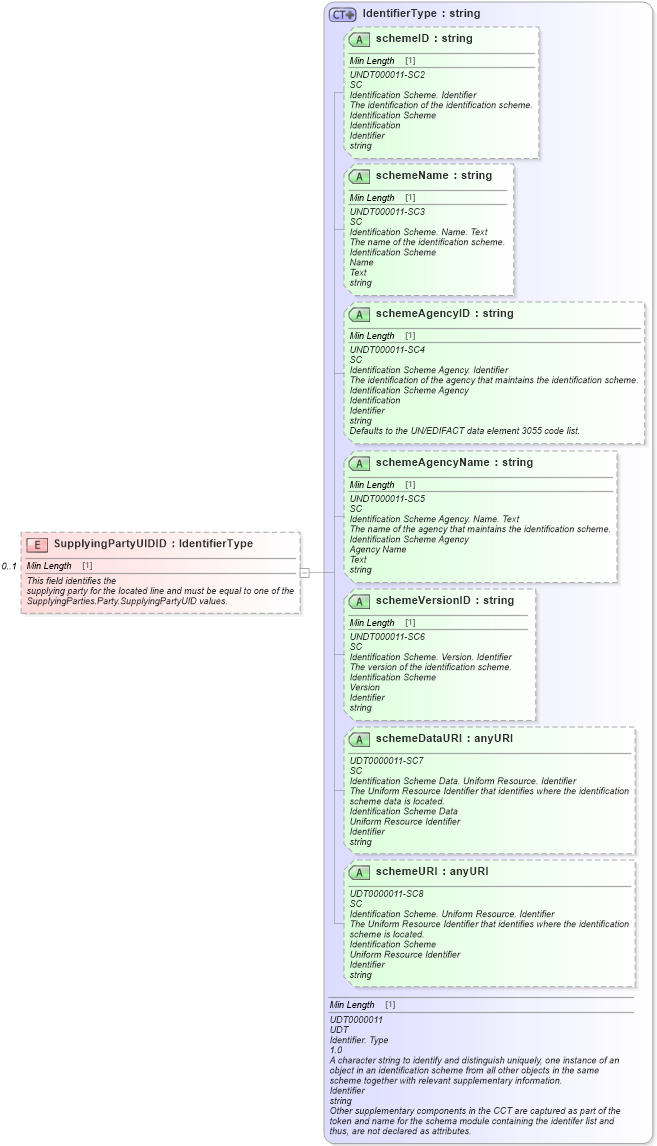

Collapse XSD Schema Diagram:
Drilldown into schemeURI in schema unqualifieddatatypes_xsd Drilldown into schemeDataURI in schema unqualifieddatatypes_xsd Drilldown into schemeVersionID in schema unqualifieddatatypes_xsd Drilldown into schemeAgencyName in schema unqualifieddatatypes_xsd Drilldown into schemeAgencyID in schema unqualifieddatatypes_xsd Drilldown into schemeName in schema unqualifieddatatypes_xsd Drilldown into schemeID in schema unqualifieddatatypes_xsd Drilldown into IdentifierType in schema unqualifieddatatypes_xsdXSD Diagram of SupplyingPartyUIDID in schema partslocator_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="SupplyingPartyUIDID" type="udt:IdentifierType" minOccurs="0" maxOccurs="1">
    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">This field identifies the
                supplying party for the located line and must be equal to one of the
                SupplyingParties.Party.SupplyingPartyUID values.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
schemeID udt:schemeID Optional
schemeName udt:schemeName Optional
schemeAgencyID udt:schemeAgencyID Optional
schemeAgencyName udt:schemeAgencyName Optional
schemeVersionID udt:schemeVersionID Optional
schemeDataURI udt:schemeDataURI Optional
schemeURI udt:schemeURI Optional
Collapse Derivation Tree:
