Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: VehicleDataAvailabilityDetailType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: VehicleDataAvailability.xsd
Abstract
Documentation:
Component to list the different areas of the requested data. Example: If Warranty data was requested, the retuned data could have Open Recalls, Closed Recalls, etc. This data is defined in this component.
Collapse XSD Schema Diagram:

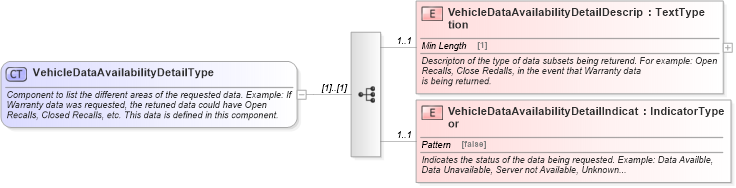

Drilldown into VehicleDataAvailabilityDetailIndicator in schema vehicledataavailability_xsd Drilldown into VehicleDataAvailabilityDetailDescription in schema vehicledataavailability_xsdXSD Diagram of VehicleDataAvailabilityDetailType in schema vehicledataavailability_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="VehicleDataAvailabilityDetailType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5">
                Component to list the different areas of the requested data. Example: If Warranty data was requested, the retuned data could have Open
                Recalls, Closed Recalls, etc. This data is defined in this component.
            </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="VehicleDataAvailabilityDetailDescription" type="udt:TextType" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                         Descripton of the type of data subsets being returend. For example: Open Recalls, Close Redalls, in the event that Warranty data
                         is being returned.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VehicleDataAvailabilityDetailIndicator" type="udt:IndicatorType" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                        Indicates the status of the data being requested. Example: Data Availble, Data Unavailable, Server not Available, Unknown...
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
VehicleDataAvailabilityDetailDescription star:VehicleDataAvailabilityDetailDescription 1 1
VehicleDataAvailabilityDetailIndicator star:VehicleDataAvailabilityDetailIndicator 1 1
Collapse Derivation Tree:
Collapse References:
star:VehicleDataAvailabilityDetail
