Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: VehicleDataAvailabilityHeaderType
Namespace: http://www.starstandard.org/STAR/5
Type: star:HeaderBaseType
Containing Schema: VehicleDataAvailability.xsd
Abstract
Documentation:
.

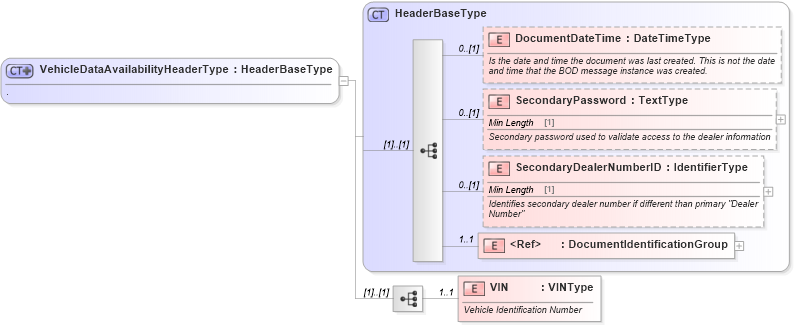

Collapse XSD Schema Diagram:
Drilldown into VIN in schema vehicledataavailability_xsd Drilldown into DocumentIdentificationGroup in schema components_xsd Drilldown into SecondaryDealerNumberID in schema components_xsd Drilldown into SecondaryPassword in schema components_xsd Drilldown into DocumentDateTime in schema components_xsd Drilldown into HeaderBaseType in schema components_xsdXSD Diagram of VehicleDataAvailabilityHeaderType in schema vehicledataavailability_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="VehicleDataAvailabilityHeaderType">
    <xsd:annotation xmlns="http://www.starstandards.org/STAR">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="HeaderBaseType">
            <xsd:sequence>
                <xsd:element maxOccurs="1" minOccurs="1" name="VIN" type="sqdt:VINType">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">
                                Vehicle Identification Number
                            </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentDateTime star:DocumentDateTime 0 (1)
SecondaryPassword star:SecondaryPassword 0 (1)
SecondaryDealerNumberID star:SecondaryDealerNumberID 0 (1)
DocumentIdentificationGroup star:DocumentIdentificationGroup 1 1
VIN star:VIN 1 1
Collapse Derivation Tree:
Collapse References:
star:VehicleDataAvailabilityHeader
