Definition Type: ComplexType
Name: VehicleInitiativePaymentInvoiceHeaderType
Namespace: http://www.starstandard.org/STAR/5
Type: star:HeaderBaseType
Containing Schema: VehicleInitiativePaymentInvoice.xsd
Abstract
Documentation:
.

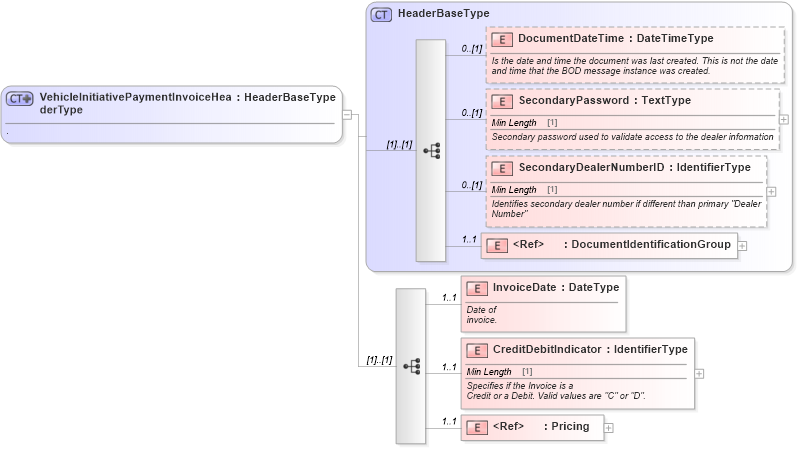

Collapse XSD Schema Diagram:
Drilldown into Pricing in schema components_xsd Drilldown into CreditDebitIndicator in schema vehicleinitiativepaymentinvoice_xsd Drilldown into InvoiceDate in schema vehicleinitiativepaymentinvoice_xsd Drilldown into DocumentIdentificationGroup in schema components_xsd Drilldown into SecondaryDealerNumberID in schema components_xsd Drilldown into SecondaryPassword in schema components_xsd Drilldown into DocumentDateTime in schema components_xsd Drilldown into HeaderBaseType in schema components_xsdXSD Diagram of VehicleInitiativePaymentInvoiceHeaderType in schema vehicleinitiativepaymentinvoice_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="VehicleInitiativePaymentInvoiceHeaderType">
    <xsd:annotation xmlns="http://www.starstandards.org/STAR">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="HeaderBaseType">
            <xsd:sequence>
                <!--<xsd:element ref="DocumentID" minOccurs="0" />-->
                <xsd:element name="InvoiceDate" type="udt:DateType" minOccurs="1" maxOccurs="1">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Date of
            invoice.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="CreditDebitIndicator" type="udt:IdentifierType" minOccurs="1" maxOccurs="1">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Specifies if the Invoice is a
                                Credit or a Debit. Valid values are "C" or "D".</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="Pricing" minOccurs="1" maxOccurs="1" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentDateTime star:DocumentDateTime 0 (1)
SecondaryPassword star:SecondaryPassword 0 (1)
SecondaryDealerNumberID star:SecondaryDealerNumberID 0 (1)
DocumentIdentificationGroup star:DocumentIdentificationGroup 1 1
InvoiceDate star:InvoiceDate 1 1
CreditDebitIndicator star:CreditDebitIndicator 1 1
Pricing star:Pricing 1 1
Collapse Derivation Tree:
Collapse References:
star:VehicleInitiativePaymentInvoiceHeader
