Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: VehicleInitiativePaymentInvoiceLineItemType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: VehicleInitiativePaymentInvoice.xsd
Abstract
Documentation:
.

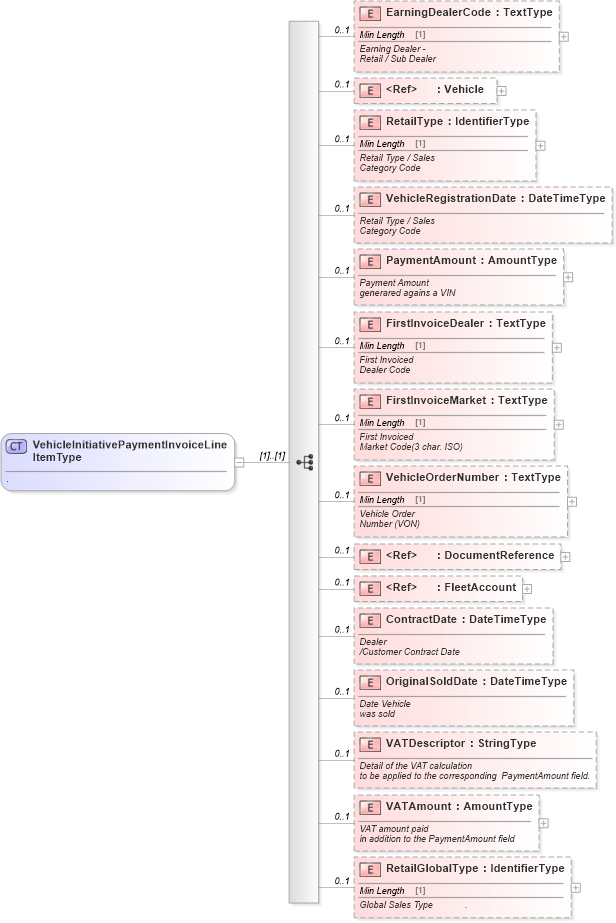

Collapse XSD Schema Diagram:
Drilldown into RetailGlobalType in schema vehicleinitiativepaymentinvoice_xsd Drilldown into VATAmount in schema vehicleinitiativepaymentinvoice_xsd Drilldown into VATDescriptor in schema vehicleinitiativepaymentinvoice_xsd Drilldown into OriginalSoldDate in schema vehicleinitiativepaymentinvoice_xsd Drilldown into ContractDate in schema vehicleinitiativepaymentinvoice_xsd Drilldown into FleetAccount in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into VehicleOrderNumber in schema vehicleinitiativepaymentinvoice_xsd Drilldown into FirstInvoiceMarket in schema vehicleinitiativepaymentinvoice_xsd Drilldown into FirstInvoiceDealer in schema vehicleinitiativepaymentinvoice_xsd Drilldown into PaymentAmount in schema vehicleinitiativepaymentinvoice_xsd Drilldown into VehicleRegistrationDate in schema vehicleinitiativepaymentinvoice_xsd Drilldown into RetailType in schema vehicleinitiativepaymentinvoice_xsd Drilldown into Vehicle in schema components_xsd Drilldown into EarningDealerCode in schema vehicleinitiativepaymentinvoice_xsdXSD Diagram of VehicleInitiativePaymentInvoiceLineItemType in schema vehicleinitiativepaymentinvoice_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="VehicleInitiativePaymentInvoiceLineItemType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5">.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="EarningDealerCode" type="udt:TextType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Earning Dealer -
                    Retail / Sub Dealer</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Vehicle" minOccurs="0" maxOccurs="1" />
        <xsd:element name="RetailType" type="udt:IdentifierType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Retail Type / Sales
                Category Code</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VehicleRegistrationDate" type="udt:DateTimeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Retail Type / Sales
                        Category Code</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="PaymentAmount" type="udt:AmountType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Payment Amount
            generared agains a VIN</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="FirstInvoiceDealer" type="udt:TextType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">First Invoiced
                Dealer Code</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="FirstInvoiceMarket" type="udt:TextType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">First Invoiced
                Market Code(3 char. ISO)</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VehicleOrderNumber" type="udt:TextType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Vehicle Order
                Number (VON)</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="DocumentReference" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="FleetAccount" minOccurs="0" maxOccurs="1" />
        <xsd:element name="ContractDate" type="udt:DateTimeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Dealer
                /Customer Contract Date</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="OriginalSoldDate" type="udt:DateTimeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Date Vehicle
                was sold</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VATDescriptor" type="qdt:StringType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Detail of the VAT calculation
                    to be applied to the corresponding  PaymentAmount field.
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VATAmount" type="udt:AmountType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">VAT amount paid
                        in addition to the PaymentAmount field
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="RetailGlobalType" type="udt:IdentifierType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                        Global Sales Type	.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EarningDealerCode star:EarningDealerCode 0 1
Vehicle star:Vehicle 0 1
RetailType star:RetailType 0 1
VehicleRegistrationDate star:VehicleRegistrationDate 0 1
PaymentAmount star:PaymentAmount 0 1
FirstInvoiceDealer star:FirstInvoiceDealer 0 1
FirstInvoiceMarket star:FirstInvoiceMarket 0 1
VehicleOrderNumber star:VehicleOrderNumber 0 1
DocumentReference star:DocumentReference 0 1
FleetAccount star:FleetAccount 0 1
ContractDate star:ContractDate 0 1
OriginalSoldDate star:OriginalSoldDate 0 1
VATDescriptor star:VATDescriptor 0 1
VATAmount star:VATAmount 0 1
RetailGlobalType star:RetailGlobalType 0 1
Collapse Derivation Tree:
Collapse References:
star:VehicleInitiativePaymentInvoiceLineItem
