Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: VehicleRemarketing
Namespace: http://www.starstandard.org/STAR/5
Type: star:VehicleRemarketingType
Containing Schema: VehicleRemarketing.xsd
Abstract
Documentation:
VehicleRemarketing supports the transmission of vehicle and advertising data between the remarketing organizations, such as newspapers, used vehicle publications and the internet advertisers. NOTE: Although this is the traditional use of VehicleRemarketing, it could be used to send Vehicle Remarketing information between any two business parties.

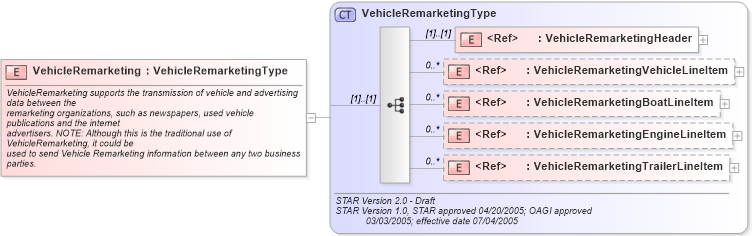

Collapse XSD Schema Diagram:
Drilldown into VehicleRemarketingTrailerLineItem in schema vehicleremarketing_xsd Drilldown into VehicleRemarketingEngineLineItem in schema vehicleremarketing_xsd Drilldown into VehicleRemarketingBoatLineItem in schema vehicleremarketing_xsd Drilldown into VehicleRemarketingVehicleLineItem in schema vehicleremarketing_xsd Drilldown into VehicleRemarketingHeader in schema vehicleremarketing_xsd Drilldown into VehicleRemarketingType in schema vehicleremarketing_xsdXSD Diagram of VehicleRemarketing in schema vehicleremarketing_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="VehicleRemarketing" type="VehicleRemarketingType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5">
         	VehicleRemarketing supports the transmission of vehicle and advertising data between the
         	remarketing organizations, such as newspapers, used vehicle publications and the internet
         	advertisers. NOTE: Although this is the traditional use of VehicleRemarketing, it could be
         	used to send Vehicle Remarketing information between any two business parties.
         </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
VehicleRemarketingHeader star:VehicleRemarketingHeader (1) (1)
VehicleRemarketingVehicleLineItem star:VehicleRemarketingVehicleLineItem 0 unbounded
VehicleRemarketingBoatLineItem star:VehicleRemarketingBoatLineItem 0 unbounded
VehicleRemarketingEngineLineItem star:VehicleRemarketingEngineLineItem 0 unbounded
VehicleRemarketingTrailerLineItem star:VehicleRemarketingTrailerLineItem 0 unbounded
Collapse Derivation Tree:
