Definition Type: ComplexType
Name: WarrantyBaseType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract

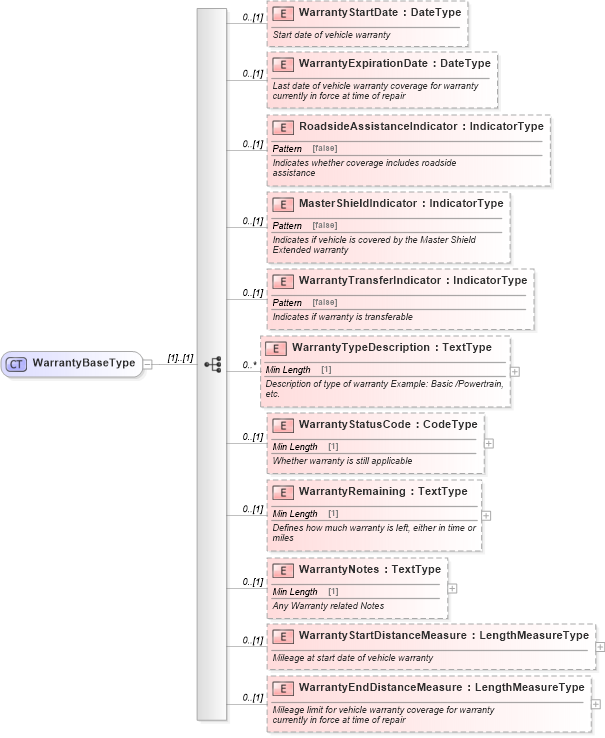

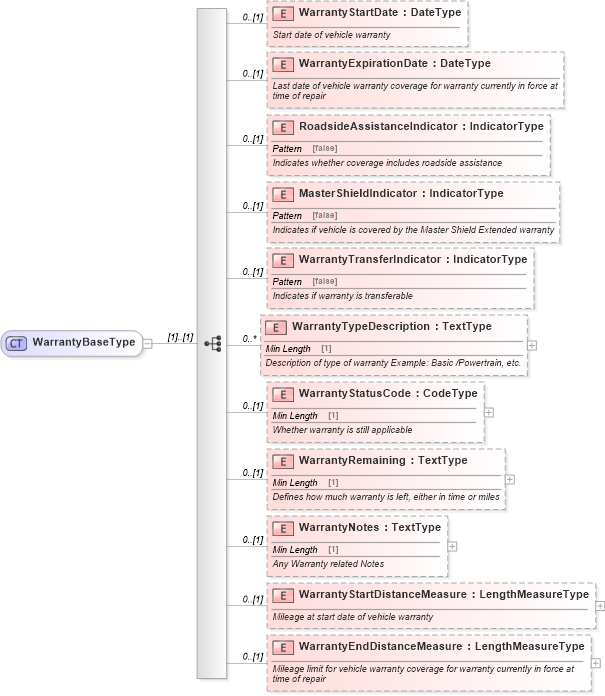

Collapse XSD Schema Diagram:
Drilldown into WarrantyEndDistanceMeasure in schema components_xsd Drilldown into WarrantyStartDistanceMeasure in schema components_xsd Drilldown into WarrantyNotes in schema components_xsd Drilldown into WarrantyRemaining in schema components_xsd Drilldown into WarrantyStatusCode in schema components_xsd Drilldown into WarrantyTypeDescription in schema components_xsd Drilldown into WarrantyTransferIndicator in schema components_xsd Drilldown into MasterShieldIndicator in schema components_xsd Drilldown into RoadsideAssistanceIndicator in schema components_xsd Drilldown into WarrantyExpirationDate in schema components_xsd Drilldown into WarrantyStartDate in schema components_xsdXSD Diagram of WarrantyBaseType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="WarrantyBaseType">
    <xsd:sequence>
        <xsd:element minOccurs="0" name="WarrantyStartDate" type="udt:DateType">
            <xsd:annotation>
                <xsd:documentation>Start date of vehicle warranty</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="WarrantyExpirationDate" type="udt:DateType">
            <xsd:annotation>
                <xsd:documentation>Last date of vehicle warranty coverage for warranty currently in force at time of repair</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="RoadsideAssistanceIndicator" type="udt:IndicatorType">
            <xsd:annotation>
                <xsd:documentation>Indicates whether coverage includes roadside assistance</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="MasterShieldIndicator" type="udt:IndicatorType">
            <xsd:annotation>
                <xsd:documentation>Indicates if vehicle is covered by the Master Shield Extended warranty</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="WarrantyTransferIndicator" type="udt:IndicatorType">
            <xsd:annotation>
                <xsd:documentation>Indicates if warranty is transferable</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" name="WarrantyTypeDescription" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>Description of type of warranty Example: Basic /Powertrain, etc.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="WarrantyStatusCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation>Whether warranty is still applicable</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="WarrantyRemaining" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>Defines how much warranty is left, either in time or miles</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="WarrantyNotes" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>Any Warranty related Notes</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="WarrantyStartDistanceMeasure" type="sqdt:LengthMeasureType">
            <xsd:annotation>
                <xsd:documentation>Mileage at start date of vehicle warranty</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="WarrantyEndDistanceMeasure" type="sqdt:LengthMeasureType">
            <xsd:annotation>
                <xsd:documentation>Mileage limit for vehicle warranty coverage for warranty currently in force at time of repair</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
WarrantyStartDate star:WarrantyStartDate 0 (1)
WarrantyExpirationDate star:WarrantyExpirationDate 0 (1)
RoadsideAssistanceIndicator star:RoadsideAssistanceIndicator 0 (1)
MasterShieldIndicator star:MasterShieldIndicator 0 (1)
WarrantyTransferIndicator star:WarrantyTransferIndicator 0 (1)
WarrantyTypeDescription star:WarrantyTypeDescription 0 unbounded
WarrantyStatusCode star:WarrantyStatusCode 0 (1)
WarrantyRemaining star:WarrantyRemaining 0 (1)
WarrantyNotes star:WarrantyNotes 0 (1)
WarrantyStartDistanceMeasure star:WarrantyStartDistanceMeasure 0 (1)
WarrantyEndDistanceMeasure star:WarrantyEndDistanceMeasure 0 (1)
Collapse Derivation Tree:
Collapse References:
star:WarrantyBasestar:WarrantyType,
