Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: WarrantyClaimType
Namespace: http://www.starstandard.org/STAR/5
Type: star:WarrantyClaimHistoryType
Containing Schema: Components.xsd
Abstract

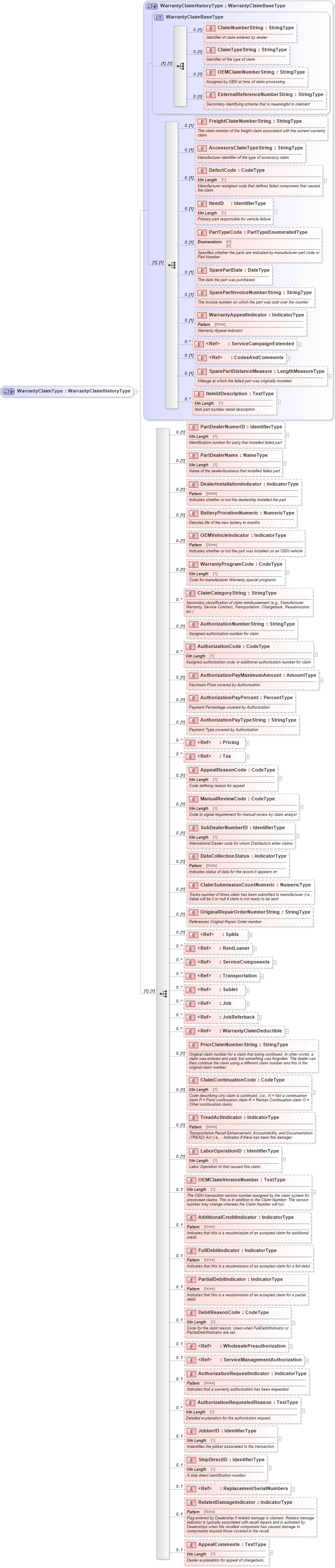

Collapse XSD Schema Diagram:
Drilldown into AppealComments in schema components_xsd Drilldown into RelatedDamageIndicator in schema components_xsd Drilldown into ReplacementSerialNumbers in schema components_xsd Drilldown into ShipDirectID in schema components_xsd Drilldown into JobberID in schema components_xsd Drilldown into AuthorizationRequestedReason in schema components_xsd Drilldown into AuthorizationRequestIndicator in schema components_xsd Drilldown into ServiceManagementAuthorization in schema components_xsd Drilldown into WholesalePreauthorization in schema components_xsd Drilldown into DebitReasonCode in schema components_xsd Drilldown into PartialDebitIndicator in schema components_xsd Drilldown into FullDebitIndicator in schema components_xsd Drilldown into AdditionalCreditIndicator in schema components_xsd Drilldown into OEMClaimVersionNumber in schema components_xsd Drilldown into LaborOperationID in schema components_xsd Drilldown into TreadActIndicator in schema components_xsd Drilldown into ClaimContinuationCode in schema components_xsd Drilldown into PriorClaimNumberString in schema components_xsd Drilldown into WarrantyClaimDeductible in schema components_xsd Drilldown into JobReferback in schema components_xsd Drilldown into Job in schema components_xsd Drilldown into Sublet in schema components_xsd Drilldown into Transportation in schema components_xsd Drilldown into ServiceComponents in schema components_xsd Drilldown into RentLoaner in schema components_xsd Drilldown into Splits in schema components_xsd Drilldown into OriginalRepairOrderNumberString in schema components_xsd Drilldown into ClaimSubmissionCountNumeric in schema components_xsd Drilldown into DataCollectionStatus in schema components_xsd Drilldown into SubDealerNumberID in schema components_xsd Drilldown into ManualReviewCode in schema components_xsd Drilldown into AppealReasonCode in schema components_xsd Drilldown into Tax in schema components_xsd Drilldown into Pricing in schema components_xsd Drilldown into AuthorizationPayTypeString in schema components_xsd Drilldown into AuthorizationPayPercent in schema components_xsd Drilldown into AuthorizationPayMaximumAmount in schema components_xsd Drilldown into AuthorizationCode in schema components_xsd Drilldown into AuthorizationNumberString in schema components_xsd Drilldown into ClaimCategoryString in schema components_xsd Drilldown into WarrantyProgramCode in schema components_xsd Drilldown into OEMVehicleIndicator in schema components_xsd Drilldown into BatteryProrationNumeric in schema components_xsd Drilldown into DealerInstallationIndicator in schema components_xsd Drilldown into PartDealerName in schema components_xsd Drilldown into PartDealerNumerID in schema components_xsd Drilldown into ItemIdDescription in schema components_xsd Drilldown into SparePartDistanceMeasure in schema components_xsd Drilldown into CodesAndComments in schema components_xsd Drilldown into ServiceCampaignExtended in schema components_xsd Drilldown into WarrantyAppealIndicator in schema components_xsd Drilldown into SparePartInvoiceNumberString in schema components_xsd Drilldown into SparePartDate in schema components_xsd Drilldown into PartTypeCode in schema components_xsd Drilldown into ItemID in schema components_xsd Drilldown into DefectCode in schema components_xsd Drilldown into AccessoryClaimTypeString in schema components_xsd Drilldown into FreightClaimNumberString in schema components_xsd Drilldown into ExternalReferenceNumberString in schema components_xsd Drilldown into OEMClaimNumberString in schema components_xsd Drilldown into ClaimTypeString in schema components_xsd Drilldown into ClaimNumberString in schema components_xsd Drilldown into WarrantyClaimBaseType in schema components_xsd Drilldown into WarrantyClaimHistoryType in schema components_xsdXSD Diagram of WarrantyClaimType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="WarrantyClaimType">
    <xsd:complexContent>
        <xsd:extension base="WarrantyClaimHistoryType">
            <xsd:sequence>
                <xsd:element minOccurs="0" name="PartDealerNumerID" type="udt:IdentifierType">
                    <xsd:annotation>
                        <xsd:documentation>Identification number for party that installed failed part</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="PartDealerName" type="udt:NameType">
                    <xsd:annotation>
                        <xsd:documentation>Name of the dealer/business that installed failed part</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="DealerInstallationIndicator" type="udt:IndicatorType">
                    <xsd:annotation>
                        <xsd:documentation>Indicates whether or not the dealership installed the part</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="BatteryProrationNumeric" type="udt:NumericType">
                    <xsd:annotation>
                        <xsd:documentation>Denotes life of the new battery in months</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="OEMVehicleIndicator" type="udt:IndicatorType">
                    <xsd:annotation>
                        <xsd:documentation>Indicates whether or not the part was installed on an OEM vehicle</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="WarrantyProgramCode" type="udt:CodeType">
                    <xsd:annotation>
                        <xsd:documentation>Code for manufacturer Warranty special programs</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="unbounded" minOccurs="0" name="ClaimCategoryString" type="qdt:StringType">
                    <xsd:annotation>
                        <xsd:documentation>Secondary classification of claim reimbursement (e.g., Manufacturer Warranty, Service Contract, Transportation, Chargeback, Resubmission, etc.)</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="AuthorizationNumberString" type="qdt:StringType">
                    <xsd:annotation>
                        <xsd:documentation>Assigned authorization number for claim</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" maxOccurs="unbounded" name="AuthorizationCode" type="udt:CodeType">
                    <xsd:annotation>
                        <xsd:documentation>Assigned authorization code or additional authorization number for claim</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="AuthorizationPayMaximumAmount" type="udt:AmountType">
                    <xsd:annotation>
                        <xsd:documentation>Maximum Price covered by Authorization</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="AuthorizationPayPercent" type="udt:PercentType">
                    <xsd:annotation>
                        <xsd:documentation>Payment Percentage covered by Authorization</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="AuthorizationPayTypeString" type="qdt:StringType">
                    <xsd:annotation>
                        <xsd:documentation>Payment Type covered by Authorization</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Pricing">
                    <xsd:annotation>
                        <xsd:documentation>Prices related to Warranty Claim</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Tax">
                    <xsd:annotation>
                        <xsd:documentation>Taxes related to Warranty Claim</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="AppealReasonCode" type="udt:CodeType">
                    <xsd:annotation>
                        <xsd:documentation>Code defining reason for appeal</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="ManualReviewCode" type="udt:CodeType">
                    <xsd:annotation>
                        <xsd:documentation>Code to signal requirement for manual review by claim analyst</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="SubDealerNumberID" type="udt:IdentifierType">
                    <xsd:annotation>
                        <xsd:documentation>International Dealer code for whom Distributors enter claims</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="DataCollectionStatus" type="udt:IndicatorType">
                    <xsd:annotation>
                        <xsd:documentation>Indicates status of data for the record it appears on</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="ClaimSubmissionCountNumeric" type="udt:NumericType">
                    <xsd:annotation>
                        <xsd:documentation>Tracks number of times claim has been submitted to manufacturer (i.e., Value will be 0 or null if claim is not ready to be sent</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="OriginalRepairOrderNumberString" type="qdt:StringType">
                    <xsd:annotation>
                        <xsd:documentation>References Original Repair Order number</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" ref="Splits">
                    <xsd:annotation>
                        <xsd:documentation>Warranty Claim Splits total</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="unbounded" minOccurs="0" ref="RentLoaner">
                    <xsd:annotation>
                        <xsd:documentation>Rent Loaner related to Warranty Claim</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="unbounded" minOccurs="0" ref="ServiceComponents">
                    <xsd:annotation>
                        <xsd:documentation>Service Components related to Warranty Claim</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Transportation">
                    <xsd:annotation>
                        <xsd:documentation>Transportation related to Warranty Claim</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Sublet">
                    <xsd:annotation>
                        <xsd:documentation>Sublet related to Warranty Claim</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Job">
                    <xsd:annotation>
                        <xsd:documentation>Jobs related to Warranty Claim</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="unbounded" minOccurs="0" ref="JobReferback">
                    <xsd:annotation>
                        <xsd:documentation>Job Referback related to Warranty Claim</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="unbounded" minOccurs="0" ref="WarrantyClaimDeductible">
                    <xsd:annotation>
                        <xsd:documentation>Deductible information associated with Warranty Claim</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="PriorClaimNumberString" type="qdt:StringType">
                    <xsd:annotation>
                        <xsd:documentation>Original claim number for a claim that being continued. In other words, a claim was entered and paid, but something was forgotten. The dealer can then continue the claim using a different claim number and this is the original claim number.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="ClaimContinuationCode" type="udt:CodeType">
                    <xsd:annotation>
                        <xsd:documentation>Code describing why claim is continued. (i.e., N = Not a continuation claim P = Parts continuation claim R = Reman Continuation claim O = Other continuation claim)</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="TreadActIndicator" type="udt:IndicatorType">
                    <xsd:annotation>
                        <xsd:documentation>Transportation Recall Enhancement, Accountability, and Documentation (TREAD) Act (i.e., - Indicates if there has been fire damage)</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="LaborOperationID" type="udt:IdentifierType">
                    <xsd:annotation>
                        <xsd:documentation>Labor Operation Id that caused this claim.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="1" minOccurs="0" name="OEMClaimVersionNumber" type="udt:TextType">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">The OEM transaction version number assigned by the claim system for processed claims. This is in addition to the Claim Number. The version number may change whereas the Claim Number will not.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="1" minOccurs="0" name="AdditionalCreditIndicator" type="udt:IndicatorType">
                    <xsd:annotation>
                        <xsd:documentation>Indicates that this is a resubmission of an accepted claim for additional credit.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="1" minOccurs="0" name="FullDebitIndicator" type="udt:IndicatorType">
                    <xsd:annotation>
                        <xsd:documentation>Indicates that this is a resubmission of an accepted claim for a full debit.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="1" minOccurs="0" name="PartialDebitIndicator" type="udt:IndicatorType">
                    <xsd:annotation>
                        <xsd:documentation>Indicates that this is a resubmission of an accepted claim for a partial debit.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="1" minOccurs="0" name="DebitReasonCode" type="udt:CodeType">
                    <xsd:annotation>
                        <xsd:documentation>Code for the debit reason. Used when FullDebitIndicator or PartialDebitIndicator are set.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="1" minOccurs="0" ref="WholesalePreauthorization" />
                <xsd:element maxOccurs="1" minOccurs="0" ref="ServiceManagementAuthorization" />
                <xsd:element maxOccurs="1" minOccurs="0" name="AuthorizationRequestIndicator" type="udt:IndicatorType">
                    <xsd:annotation>
                        <xsd:documentation>Indicates that a warranty authorization has been requested.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="unbounded" minOccurs="0" name="AuthorizationRequestedReason" type="udt:TextType">
                    <xsd:annotation>
                        <xsd:documentation>Detailed explanation for the authorizaton request.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="1" minOccurs="0" name="JobberID" type="udt:IdentifierType">
                    <xsd:annotation>
                        <xsd:documentation>Indentifies the jobber associated to the transaction.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="1" minOccurs="0" name="ShipDirectID" type="udt:IdentifierType">
                    <xsd:annotation>
                        <xsd:documentation>A ship direct identification number.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="1" minOccurs="0" ref="ReplacementSerialNumbers" />
                <xsd:element name="RelatedDamageIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Flag entered by Dealership if related damage is claimed. Related damage indicator is typically associated with recall repairs and is activated by Dealerships when the recalled component has caused damage to components beyond those covered in the recall.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="AppealComments" type="udt:TextType" minOccurs="0" maxOccurs="1">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Dealer explanation for appeal of chargeback.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ClaimNumberString star:ClaimNumberString 0 (1)
ClaimTypeString star:ClaimTypeString 0 (1)
OEMClaimNumberString star:OEMClaimNumberString 0 (1)
ExternalReferenceNumberString star:ExternalReferenceNumberString 0 (1)
FreightClaimNumberString star:FreightClaimNumberString 0 (1)
AccessoryClaimTypeString star:AccessoryClaimTypeString 0 (1)
DefectCode star:DefectCode 0 (1)
ItemID star:ItemID 0 (1)
PartTypeCode star:PartTypeCode 0 (1)
SparePartDate star:SparePartDate 0 (1)
SparePartInvoiceNumberString star:SparePartInvoiceNumberString 0 (1)
WarrantyAppealIndicator star:WarrantyAppealIndicator 0 (1)
ServiceCampaignExtended star:ServiceCampaignExtended 0 unbounded
CodesAndComments star:CodesAndComments 0 (1)
SparePartDistanceMeasure star:SparePartDistanceMeasure 0 (1)
ItemIdDescription star:ItemIdDescription 0 unbounded
PartDealerNumerID star:PartDealerNumerID 0 (1)
PartDealerName star:PartDealerName 0 (1)
DealerInstallationIndicator star:DealerInstallationIndicator 0 (1)
BatteryProrationNumeric star:BatteryProrationNumeric 0 (1)
OEMVehicleIndicator star:OEMVehicleIndicator 0 (1)
WarrantyProgramCode star:WarrantyProgramCode 0 (1)
ClaimCategoryString star:ClaimCategoryString 0 unbounded
AuthorizationNumberString star:AuthorizationNumberString 0 (1)
AuthorizationCode star:AuthorizationCode 0 unbounded
AuthorizationPayMaximumAmount star:AuthorizationPayMaximumAmount 0 (1)
AuthorizationPayPercent star:AuthorizationPayPercent 0 (1)
AuthorizationPayTypeString star:AuthorizationPayTypeString 0 (1)
Pricing star:Pricing 0 unbounded
Tax star:Tax 0 unbounded
AppealReasonCode star:AppealReasonCode 0 (1)
ManualReviewCode star:ManualReviewCode 0 (1)
SubDealerNumberID star:SubDealerNumberID 0 (1)
DataCollectionStatus star:DataCollectionStatus 0 (1)
ClaimSubmissionCountNumeric star:ClaimSubmissionCountNumeric 0 (1)
OriginalRepairOrderNumberString star:OriginalRepairOrderNumberString 0 (1)
Splits star:Splits 0 (1)
RentLoaner star:RentLoaner 0 unbounded
ServiceComponents star:ServiceComponents 0 unbounded
Transportation star:Transportation 0 unbounded
Sublet star:Sublet 0 unbounded
Job star:Job 0 unbounded
JobReferback star:JobReferback 0 unbounded
WarrantyClaimDeductible star:WarrantyClaimDeductible 0 unbounded
PriorClaimNumberString star:PriorClaimNumberString 0 (1)
ClaimContinuationCode star:ClaimContinuationCode 0 (1)
TreadActIndicator star:TreadActIndicator 0 (1)
LaborOperationID star:LaborOperationID 0 (1)
OEMClaimVersionNumber star:OEMClaimVersionNumber 0 1
AdditionalCreditIndicator star:AdditionalCreditIndicator 0 1
FullDebitIndicator star:FullDebitIndicator 0 1
PartialDebitIndicator star:PartialDebitIndicator 0 1
DebitReasonCode star:DebitReasonCode 0 1
WholesalePreauthorization star:WholesalePreauthorization 0 1
ServiceManagementAuthorization star:ServiceManagementAuthorization 0 1
AuthorizationRequestIndicator star:AuthorizationRequestIndicator 0 1
AuthorizationRequestedReason star:AuthorizationRequestedReason 0 unbounded
JobberID star:JobberID 0 1
ShipDirectID star:ShipDirectID 0 1
ReplacementSerialNumbers star:ReplacementSerialNumbers 0 1
RelatedDamageIndicator star:RelatedDamageIndicator 0 1
AppealComments star:AppealComments 0 1
Collapse Derivation Tree:
Collapse References:
star:WarrantyClaim
Documentation for Standards for Technology in Automotive Retail

Generated using Liquid Studio - Developer Bundle 21.0.0.0
