Definition Type: ComplexType
Name: AcknowledgementStatusType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract
Collapse XSD Schema Diagram:

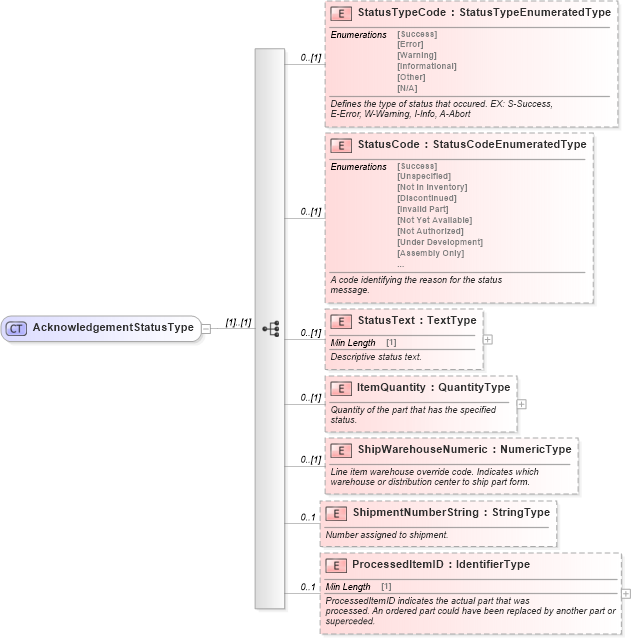

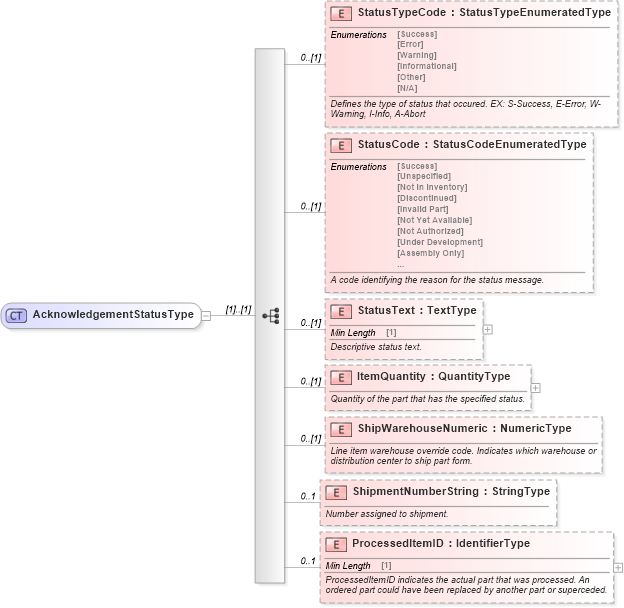

Drilldown into ProcessedItemID in schema components_xsd Drilldown into ShipmentNumberString in schema components_xsd Drilldown into ShipWarehouseNumeric in schema components_xsd Drilldown into ItemQuantity in schema components_xsd Drilldown into StatusText in schema components_xsd Drilldown into StatusCode in schema components_xsd Drilldown into StatusTypeCode in schema components_xsdXSD Diagram of AcknowledgementStatusType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="AcknowledgementStatusType">
    <xsd:sequence>
        <xsd:element minOccurs="0" name="StatusTypeCode" type="scl:StatusTypeEnumeratedType">
            <xsd:annotation>
                <xsd:documentation>
                        Defines the type of status that occured. EX: S-Success,
                            E-Error, W-Warning, I-Info, A-Abort
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="StatusCode" type="scl:StatusCodeEnumeratedType">
            <xsd:annotation>
                <xsd:documentation>
                        A code identifying the reason for the status
                        message.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="StatusText" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>
                        Descriptive status text.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="ItemQuantity" type="sqdt:QuantityType">
            <xsd:annotation>
                <xsd:documentation>
                        Quantity of the part that has the specified
                        status.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="ShipWarehouseNumeric" type="udt:NumericType">
            <xsd:annotation>
                <xsd:documentation>
                        Line item warehouse override code. Indicates which
                            warehouse or distribution center to ship part form.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="ShipmentNumberString" type="qdt:StringType">
            <xsd:annotation>
                <xsd:documentation>
                        Number assigned to shipment.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="ProcessedItemID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation>
                        ProcessedItemID indicates the actual part that was
                            processed. An ordered part could have been replaced by another part or
                            superceded.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
StatusTypeCode star:StatusTypeCode 0 (1)
StatusCode star:StatusCode 0 (1)
StatusText star:StatusText 0 (1)
ItemQuantity star:ItemQuantity 0 (1)
ShipWarehouseNumeric star:ShipWarehouseNumeric 0 (1)
ShipmentNumberString star:ShipmentNumberString 0 1
ProcessedItemID star:ProcessedItemID 0 1
Collapse Derivation Tree:
Collapse References:
star:AcknowledgementStatus, star:Status, star:Status, star:Status, star:Status
