Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: ActivityCode
Namespace: http://www.openapplications.org/oagis/9
Type: oagis:CodeType
Containing Schema: Fields.xsd
Abstract
Documentation:
This describes the type of activity produced by a cost center in an operation. In this context, it indicates that the resources being reported here are performing one of the following types of activities: Setup, Execution or Teardown

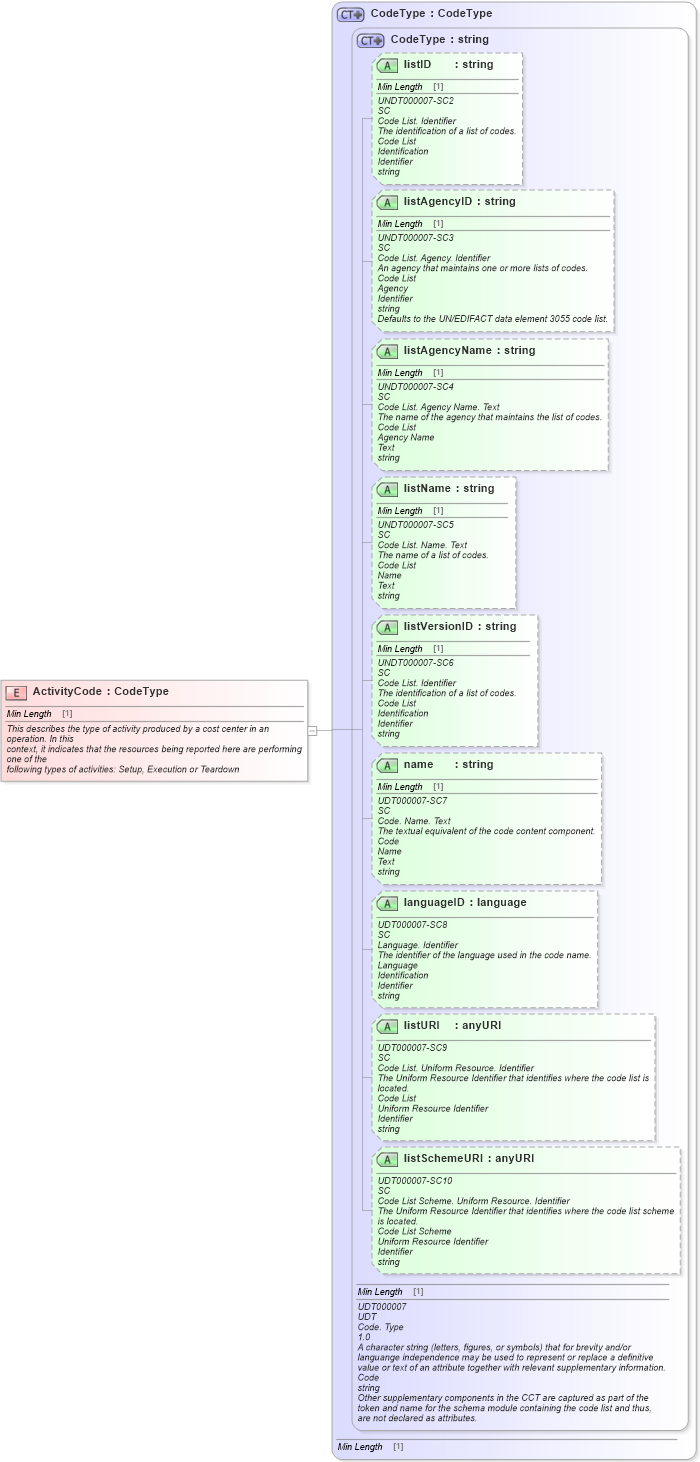

Collapse XSD Schema Diagram:
Drilldown into listSchemeURI in schema unqualifieddatatypes_xsd Drilldown into listURI in schema unqualifieddatatypes_xsd Drilldown into languageID in schema unqualifieddatatypes_xsd Drilldown into name in schema unqualifieddatatypes_xsd Drilldown into listVersionID in schema unqualifieddatatypes_xsd Drilldown into listName in schema unqualifieddatatypes_xsd Drilldown into listAgencyName in schema unqualifieddatatypes_xsd Drilldown into listAgencyID in schema unqualifieddatatypes_xsd Drilldown into listID in schema unqualifieddatatypes_xsd Drilldown into CodeType in schema unqualifieddatatypes_xsd Drilldown into CodeType in schema fields_xsd1XSD Diagram of ActivityCode in schema fields_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="ActivityCode" type="CodeType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">
            This describes the type of activity produced by a cost center in an operation. In this
            context, it indicates that the resources being reported here are performing one of the
            following types of activities: Setup, Execution or Teardown
         </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
listID udt:listID Optional
listAgencyID udt:listAgencyID Optional
listAgencyName udt:listAgencyName Optional
listName udt:listName Optional
listVersionID udt:listVersionID Optional
name udt:name Optional
languageID udt:languageID Optional
listURI udt:listURI Optional
listSchemeURI udt:listSchemeURI Optional
Collapse Derivation Tree:
